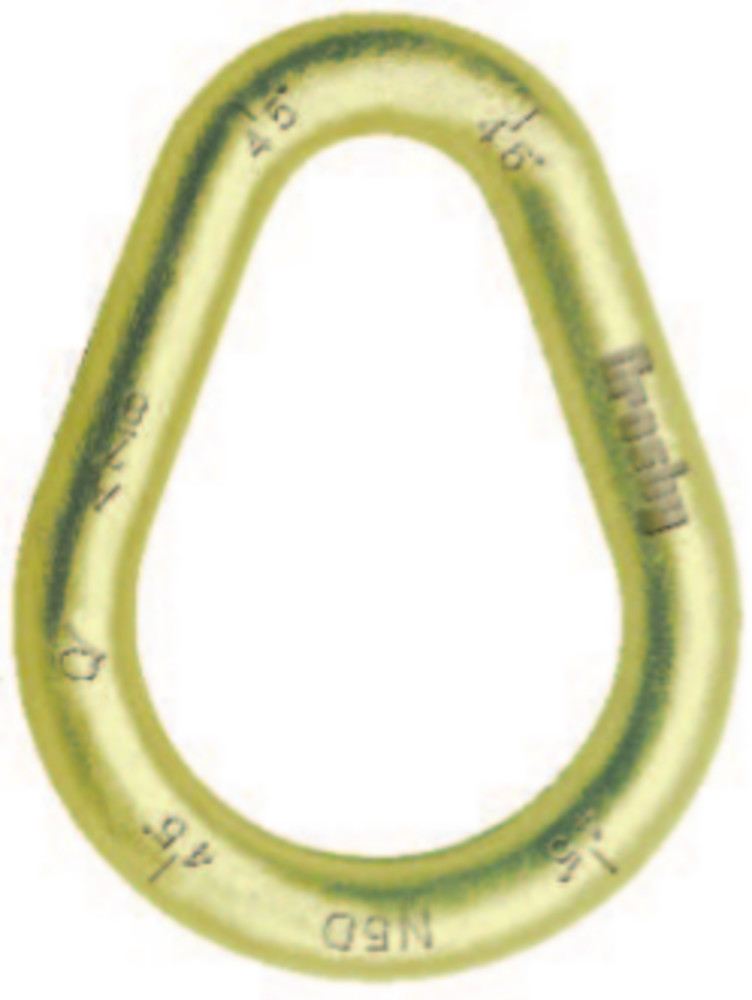

Golden pear-shaped metal link for lifting and rigging applications.

Crosby A-341 Alloy Pear Shaped Links

SKU: GRRR248 Category: Master Links

Product details

Forged alloy steel — Quenched & Tempered.
Individually Proof Tested at 2 times Working Load Limit with certification.

Videos

A-341 Alloy Pear Shaped Links

Size (A) (in)	Stock No	Working Load Limit		Weight Each (lb)	Dimensions (in)
		(lb)	(t)		B	C	F
								1/2	1013575	7,000	3.15	.55	3.00	2.00	1.00
								5/8	1013584	9,000	4.09	1.10	3.75	2.50	1.25
								3/4	1013595	12,300	5.59	1.76	4.50	3.00	1.50
								7/8	1013604	15,000	6.81	2.82	5.25	3.50	1.75
								1	1013613	24,360	11.0	4.22	6.00	4.00	2.00
								1 1/8	1013622	30,600	13.9	6.25	6.50	4.50	2.25
								1 1/4	1013631	36,000	16.4	8.25	7.75	5.00	2.50
								1 3/8	1013640	43,000	19.5	11.25	8.25	5.50	2.75
								1 1/2	1013654	54,300	24.7	14.25	9.00	6.00	3.00
								1 3/4	1013672	84,900	38.6	22.50	10.50	7.00	3.50
								2	1013690	102,600	46.6	34.00	12.00	8.00	4.00

Size (A) (mm)	Stock No	Working Load Limit		Weight Each (kg)	Dimensions (mm)
		(lb)	(t)		B	C	F
								13	1013575	7,000	3.15	.25	76.2	50.8	25.4
								16	1013584	9,000	4.09	.50	95.3	63.5	31.8
								19	1013595	12,300	5.59	.80	114	76.2	38.1
								22	1013604	15,000	6.81	1.28	133	88.9	44.5
								25	1013613	24,360	11.0	1.91	152	102	51.0
								28	1013622	30,600	13.9	2.83	171	114	57.0
								32	1013631	36,000	16.4	3.74	191	127	63.5
								35	1013640	43,000	19.5	5.10	210	140	70.0
								38	1013654	54,300	24.7	6.46	229	152	76.0
								44	1013672	84,900	38.6	10.2	267	178	89.0
								51	1013690	102,600	46.6	15.4	305	203	102

5:1 Design Factor. Based on single leg sling (in-line load), or resultant load on multiple legs with an included angle less than or equal to 120°.

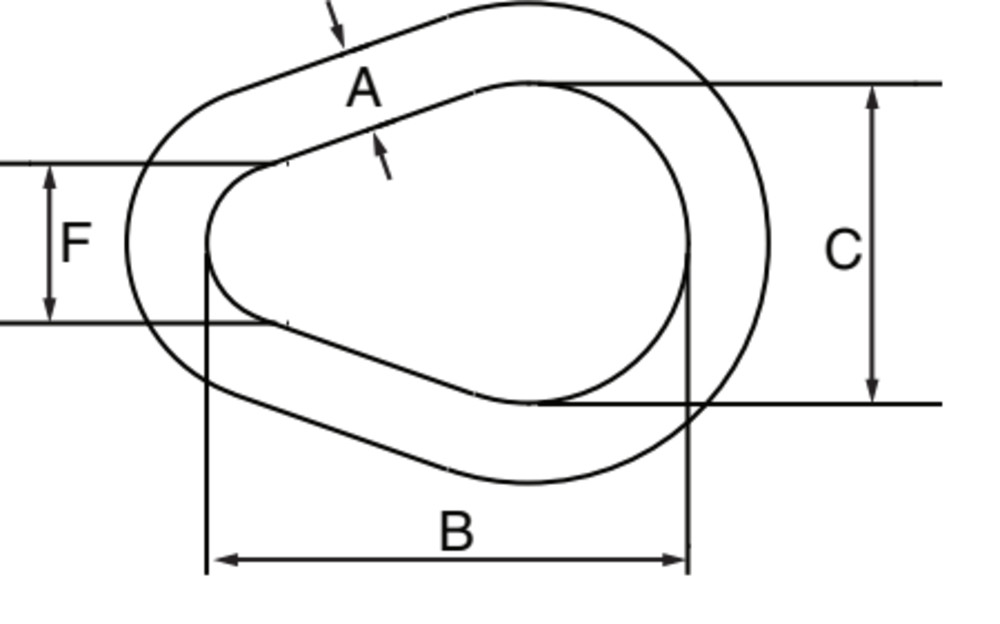

Diagram Images
