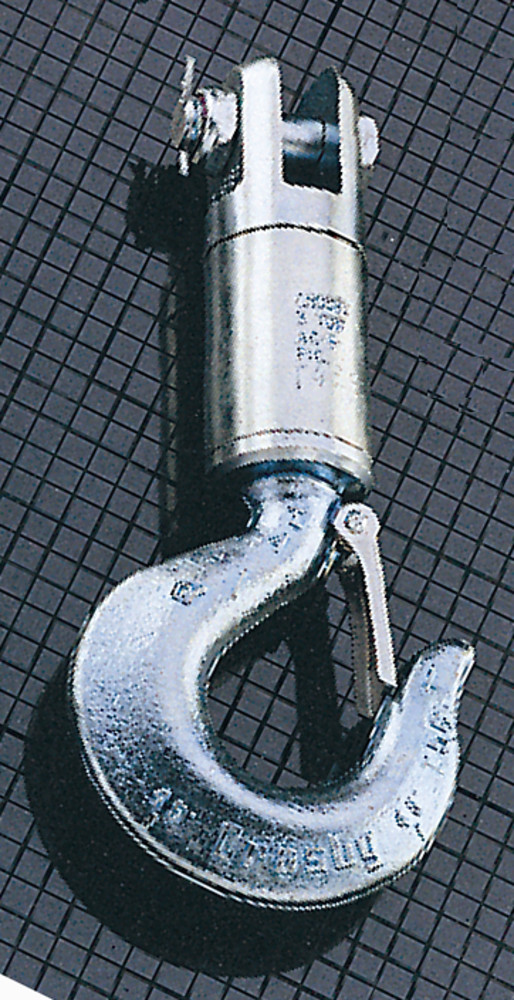

Crosby AS-1 Jaw & Hook

SKU: GRRR204 Category: Hooks & Swivels

Product details

Wide range of Angular Contact Bearing Swivels available.
Angular contact bearings maximize efficiency, reliability, and service life of swivel and extend the life of the wire rope.
Entire swivel is zinc plated to resist corrosion.
Individually Proof Tested to 2 times the Working Load Limit with certification.
Hook models utilize genuine Crosby hooks which are forged alloy steel, quenched and tempered, and contain patented QUIC-CHECK® markings.
Each swivel 8.5 short Tons and larger is furnished with a pressure lubrication fitting.
For swivels larger than those listed, visit thecrosbygroup.com/engineeredsolutions for more information.

Videos

AS-1 Jaw & Hook

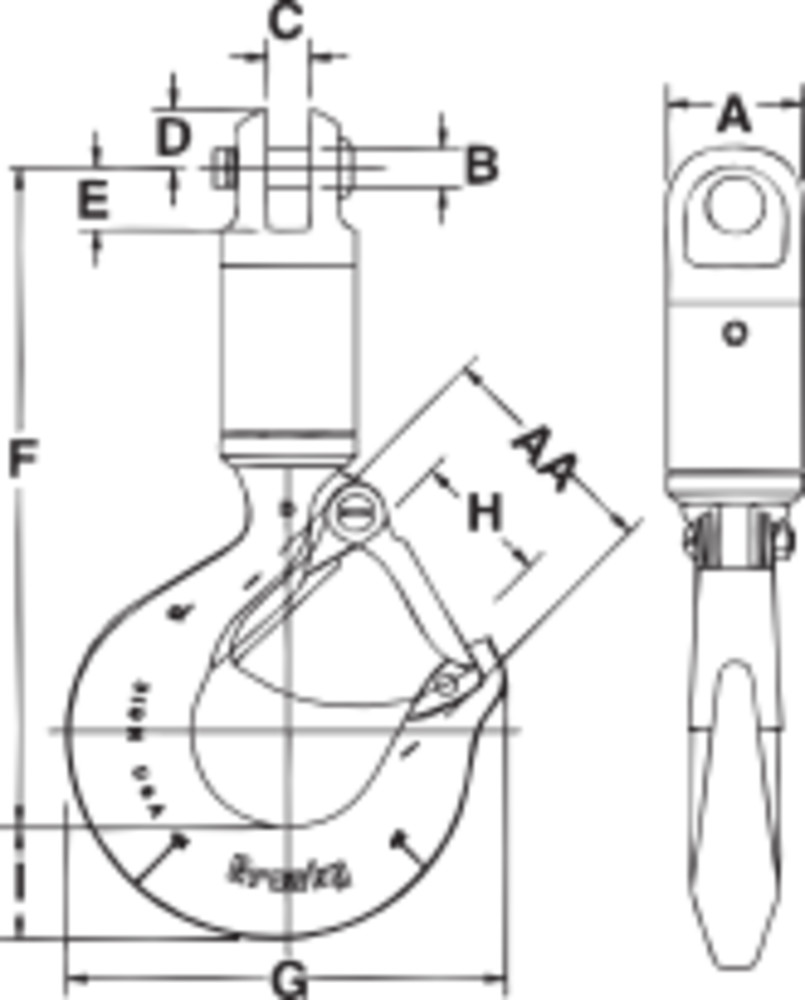

AS-1 JAW & HOOK				Dimensions (in)
Working Load Limit (t)*	Wire Rope Size (in)	Stock No.	Weight Each (lb)	A	B	C	D	E	F	G	H	I
													.40	1/8	1016001	.7	.88	.25	.25	.38	.41	4.32	2.86	.93	.73	1.50	1096325	2018360
													.68	1/4	1016010	1.5	1.31	.38	.31	.44	.56	5.44	3.16	.97	.84	1.50	1096374	2018361
													1.35	3/8	1016025	2.3	1.63	.50	.53	.69	.78	6.35	4.00	1.16	1.14	1.50	1096374	2018362
													2.70	1/2	1016026	6.5	2.00	.75	.75	.94	1.19	8.69	4.84	1.41	1.44	2.50	1096374	2018363
													4.50	5/8	1016040	12.9	2.50	.88	1.00	1.13	1.53	10.71	6.28	1.69	1.82	3.00	1096562	2018364
													7.65	3/4	1016045	26.4	3.00	1.19	1.56	1.34	2.09	13.65	8.34	2.41	2.60	4.00	1096657	2018365
													9.00	7/8	1016056	53.0	4.00	1.50	1.75	1.75	3.50	17.95	10.34	3.19	3.00	5.00	1096704	2018367
													13.5	1	1016064	53.0	4.00	1.50	1.75	1.75	3.50	17.95	10.34	3.19	3.00	5.00	1096704	2018367
													22.5	1-1/4	1016075	97.0	5.00	2.00	2.00	2.38	3.69	20.88	13.62	3.25	3.62	6.50	1090161	2018368
													31.5	1-1/2	1016082	140.0	5.00	2.00	2.00	2.38	3.69	24.00	14.06	3.00	4.56	7.00	1090189	2018368

AS-1 JAW & HOOK				Dimensions (mm)
Working Load Limit (t)	Wire Rope Size (mm)	Stock No.	Weight Each (kg)	A	B	C	D	E	F	G	H	I
													.40	3	1016001	.32	22.4	6.35	6.35	9.65	10.4	110	72.5	23.6	18.5	38.1	1096325	2018360
													.68	6	1016010	.68	33.3	9.65	7.85	11.2	14.2	138	80.0	24.6	21.3	38.1	1096374	2018361
													1.35	10	1016025	1.04	41.4	12.7	12.7	17.5	19.8	161	102	29.5	29.0	38.1	1096374	2018362
													2.70	13	1016026	2.95	51.0	19.1	19.1	23.9	30.2	221	123	35.8	36.6	63.5	1096374	2018363
													4.50	16	1016040	5.85	63.5	22.4	25.4	28.7	38.9	272	160	42.9	46.2	76.0	1096562	2018364
													7.65	19	1016045	12.0	76.0	30.2	39.5	34.0	53.0	347	212	61.0	66.0	102	1096657	2018365
													9.00	22	1016056	24.0	102	38.1	44.5	44.5	89.0	456	263	81.0	76.0	127	1096704	2018367
													13.5	25	1016064	24.0	102	38.1	44.5	44.5	89.0	456	263	81.0	76.0	127	1096704	2018367
													22.5	32	1016075	44.0	127	51.0	51.0	60.5	93.5	530	346	82.5	92.0	165	1090161	2018368
													31.5	38	1016082	63.5	127	51.0	51.0	60.5	93.5	610	357	76.0	116	178	1090189	2018368

NOTE: For swivels larger than 35 short Tons, or designed to meet the requirements of demanding applications such as subsea applications, please contact the Engineered Solutions at thecrosbygroup.com/engineeredsolutions.

5:1 Design Factor. Individually Proof Tested to 2 times the Working Load Limit.
