Crosby AS-14 Thimble & Bullet

SKU: GRRR301 Category: Hooks & Swivels

Product details

Wide range of Angular Contact Bearing Swivels available.
Angular contact bearings maximize efficiency, reliability, and service life of swivel and extend the life of the wire rope.
Entire swivel is zinc plated to resist corrosion.
Individually Proof Tested to 2 times the Working Load Limit with certification.
Hook models utilize genuine Crosby hooks which are forged alloy steel, quenched and tempered, and contain patented QUIC-CHECK® markings.
Each swivel 8.5 short Tons and larger is furnished with a pressure lubrication fitting.
For swivels larger than those listed, visit thecrosbygroup.com/engineeredsolutions for more information.

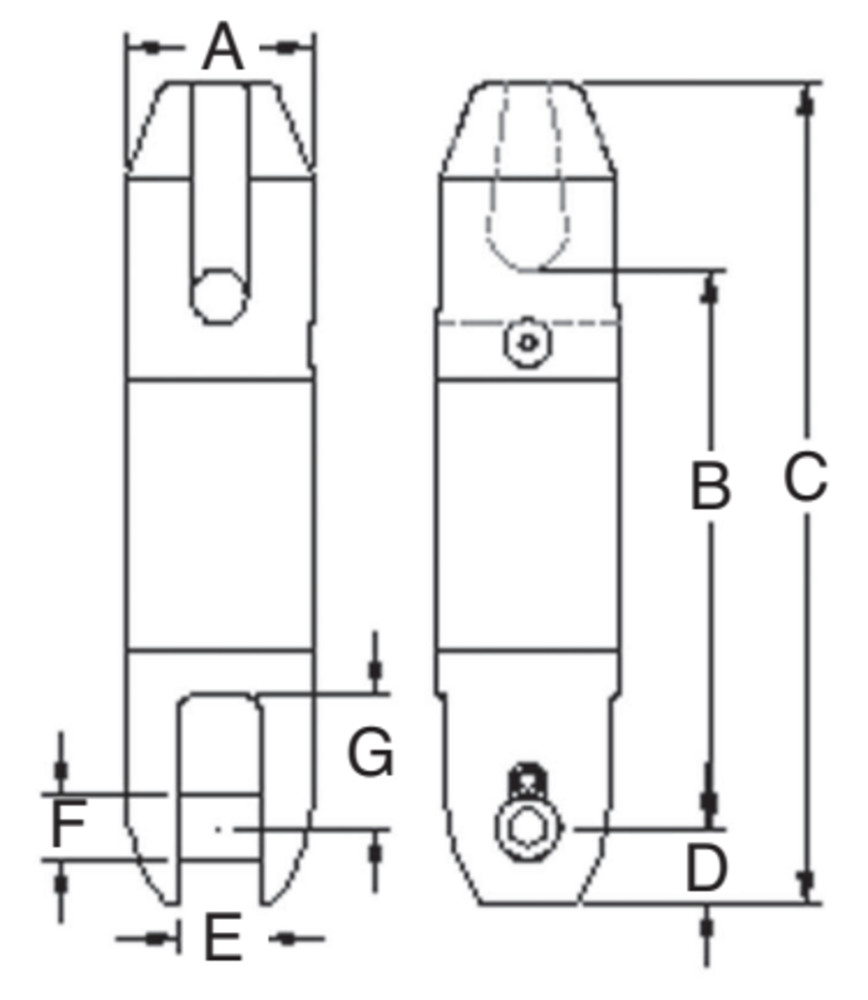

AS-14 THIMBLE & BULLET				Dimensions (in)
Working Load Limit (t)*	Wire Rope Size (in)	Stock No.	Weight Each (lb)	A	B	C	D	E	F	G
											7.7	3/4	1017255	20.0	3.00	9.00	13.25	1.25	1.31	1.00	2.13	2003943
											13.6	1	1017258	40.0	4.00	11.50	17.38	1.75	1.75	1.50	3.25	2003959
											22.7	1-1/4	1017261	81.0	5.00	14.31	21.19	2.38	2.00	2.00	3.69

AS-14 THIMBLE & BULLET				Dimensions (mm)
Working Load Limit (t)	Wire Rope Size (mm)	Stock No.	Weight Each (kg)	A	B	C	D	E	F	G
											7.7	20	1017255	9.0	76.2	229	337	31.8	33.3	25.4	54.1	2003943
											13.6	26	1017258	18.0	102	292	441	44.5	44.5	38.1	82.6	2003959
											22.7	32	1017261	37.0	127	363	538	60.5	50.8	50.8	93.7
