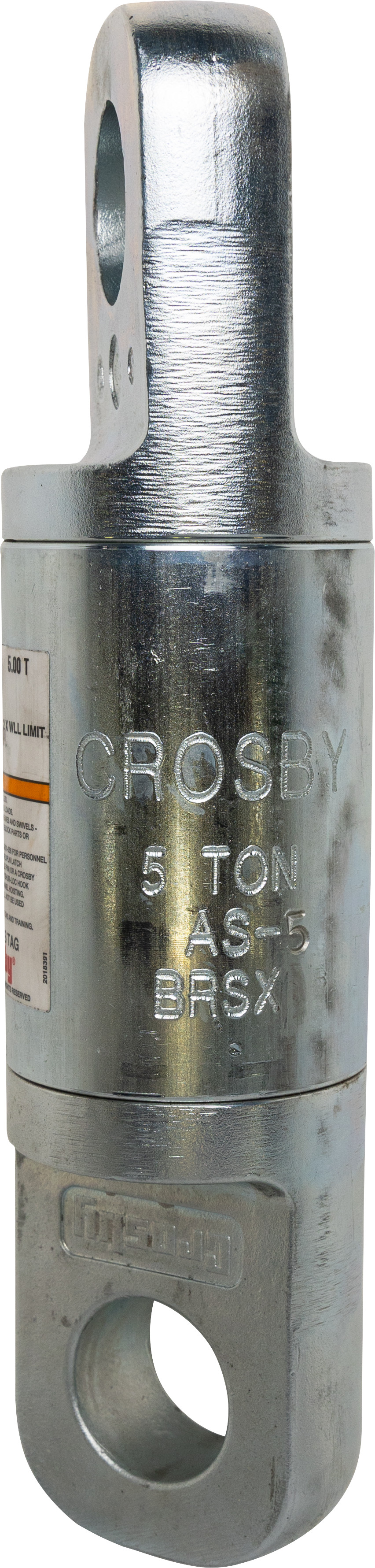

Heavy-duty Crosby lifting component, 5 ton AS-5 BRSX swivel, metallic finish, industrial equipment.

Crosby AS-5 Eye & Eye

SKU: GRRR473 Category: Hooks & Swivels

Product details

Wide range of Angular Contact Bearing Swivels available.
Angular contact bearings maximize efficiency, reliability, and service life of swivel and extend the life of the wire rope.
Entire swivel is zinc plated to resist corrosion.
Individually Proof Tested to 2 times the Working Load Limit with certification.
Hook models utilize genuine Crosby hooks which are forged alloy steel, quenched and tempered, and contain patented QUIC-CHECK® markings.
Each swivel 8.5 short Tons and larger is furnished with a pressure lubrication fitting.
For swivels larger than those listed, visit thecrosbygroup.com/engineeredsolutions for more information.

Videos

AS-5 Eye & Eye

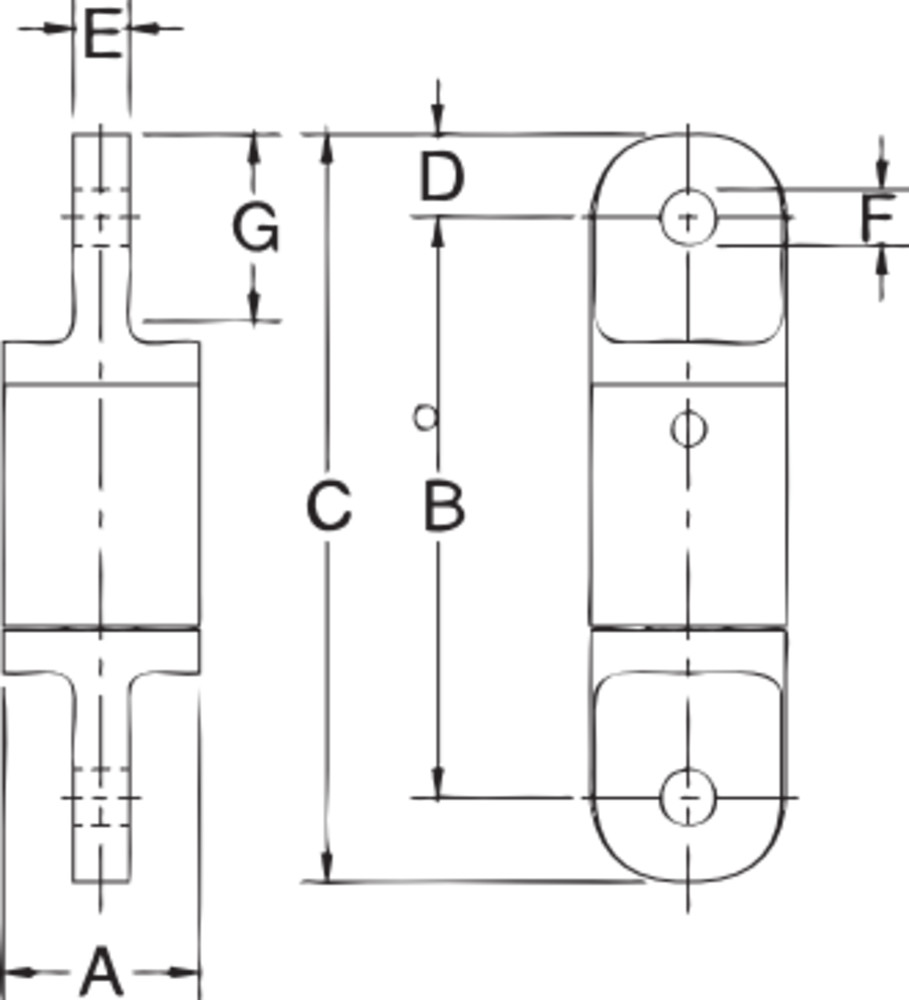

AS-5 EYE & EYE				Dimensions (in)
Working Load Limit (t)*	Wire Rope Size (in)	Stock No.	Weight Each (lb)	A	B	C	D	E	F	G
											.40	1/8	1016409	.3	.88	2.63	3.38	.38	.25	.25	.81
											.68	1/4	1016418	.9	1.31	3.75	4.63	.44	.31	.38	.88
											1.35	3/8	1016427	1.8	1.63	4.31	5.56	.63	.50	.66	1.34
											2.70	1/2	1016436	4.3	2.00	6.13	8.13	1.00	.75	.91	2.00
											4.50	5/8	1016445	8.6	2.50	7.75	10.63	1.19	1.00	1.25	2.63
											7.65	3/4	1016454	15.4	3.00	9.31	12.31	1.50	1.25	1.41	3.13
											9.00	7/8	1016463	37.0	4.00	13.88	17.50	1.81	1.72	1.63	4.69
											13.5	1	1016472	39.0	4.00	13.25	17.50	2.13	2.00	2.13	4.69
											22.5	1-1/4	1016481	72.0	5.00	16.00	20.75	2.38	2.25	2.31	5.25
											31.5	1-1/2	1016490	72.0	5.00	16.00	20.75	2.38	2.25	2.31	5.25

AS-5 EYE & EYE				Dimensions (mm)
Working Load Limit (t)	Wire Rope Size (mm)	Stock No.	Weight Each (kg)	A	B	C	D	E	F	G
											.40	3	1016409	.14	22.4	67.0	86.0	9.65	6.35	6.35	20.6
											.68	6	1016418	.41	33.3	95.0	118	11.2	7.85	9.65	22.4
											1.35	10	1016427	.82	41.4	110	141	16.0	12.7	16.8	34.0
											2.70	13	1016436	1.95	51.0	156	207	25.4	19.1	23.1	51.0
											4.50	16	1016445	3.90	63.5	197	270	30.2	25.4	31.8	67.0
											7.65	19	1016454	7.00	76.0	237	313	38.1	31.8	35.8	79.5
											9.00	22	1016463	16.8	102	353	445	46.0	43.7	41.4	119
											13.5	25	1016472	17.7	102	337	445	54.0	51.0	54.0	119
											22.5	32	1016481	32.7	127	406	527	60.5	57.0	58.5	133
											31.5	38	1016490	32.7	127	406	527	60.5	57.0	58.5	133

NOTE: For swivels larger than 35 tons, or designed to meet the requirements of demanding applications such as subsea applications, please contact Engineered Solutions at thecrosbygroup.com/engineeredsolutions.

5:1 Design Factor. Individually Proof Tested to 2 times the Working Load Limit.
