Crosby G-209R Subsea Shackles

Crosby G-209R Subsea Shackles - Image 2

Crosby G-209R Subsea Shackles - Image 3

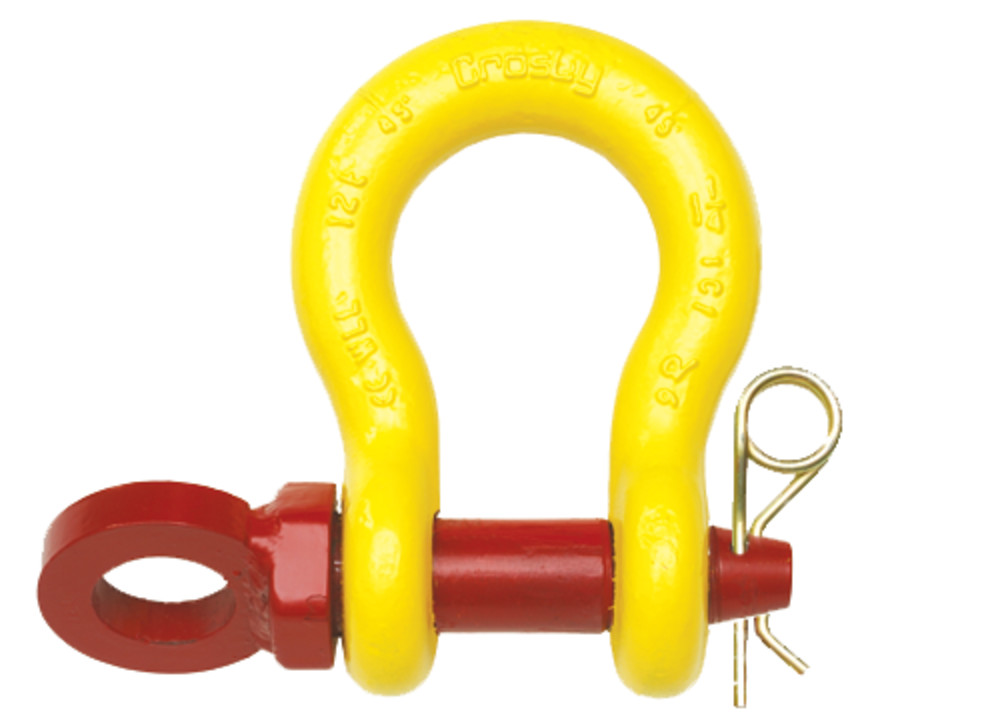

Crosby G-209R Subsea Shackles

SKU: GRRRR87 Category: Subsea & ROV

Product details

Capacities from 6-1/2t through 55t.
Forged steel, Quenched & Tempered, with alloy pins.
Working Load Limit permanently shown on every shackle.
Fatigue rated.
QUIC-CHECK® deformation and angle indicators forged on the bow.
All ROV shackle bows are galvanized, then painted fluorescent yellow.
Look for the Red Pin®... the mark of genuine Crosby quality.

Videos

G-209R Subsea Shackles

Working Load Limit (t)*	Stock No.	Weight Each (lb)	Dimensions (in)
			A +/- .25	B	C	H	L	O	P	S	T
												6.5	1020872	3.62	1.44	1.00	3.31	5.83	4.03	1.18	2.28	.65	.39
												8.5	1020902	5.03	1.69	1.13	3.75	6.56	4.69	1.18	2.40	.73	.39
												9.5	1020932	7.41	1.81	1.25	4.25	7.47	5.16	2.28	3.27	.75	.47
												12	1020952	9.50	2.03	1.38	4.69	8.25	5.75	2.28	3.31	.89	.47
												13.5	1020972	13.53	2.25	1.50	5.25	9.16	6.38	2.36	3.58	.91	.59
												17	1020992	17.20	2.38	1.63	5.75	10.00	6.88	2.36	3.66	1.18	.59
												25	1021102	27.78	2.88	2.00	7.00	12.34	8.86	2.16	4.49	1.14	.69
												35	1021125	45.00	3.25	2.25	7.75	13.68	9.97	2.60	5.12	1.18	.79
												55	1021158	85.75	4.13	2.75	10.50	17.84	12.87	2.76	5.63	1.50	.98

Working Load Limit (t)*	Stock No.	Weight Each (kg)	Dimensions (mm)
			A +/- 6.4	B	C	H	L	O	P	S	T
												6.5	1020872	1.69	36.6	25.4	84	148	102	50	58	17	10
												8.5	1020902	2.59	42.9	28.7	95.5	167	119	50	61	18	10
												9.5	1020932	3.77	46.0	31.8	108	190	131	70	83	18	12
												12	1020952	5.02	51.5	35.1	119	210	146	70	84	23	12
												13.5	1020972	6.65	57.0	38.1	133	233	162	75	91	23	15
												17	1020992	8.58	60.5	41.4	146	254	175	75	93'	24	15
												25	1021102	14.1	73.0	51.0	178	313	225	90	114	29	17.5
												35	1021125	21.4	82.5	57.0	197	348	253	106	132	30	20
												55	1021158	42.8	105.0	70,0	267	453	327	120	145	45	25

5:1 Design Factor. Maximum Proof Load is 2.0 times the Working Load Limit.

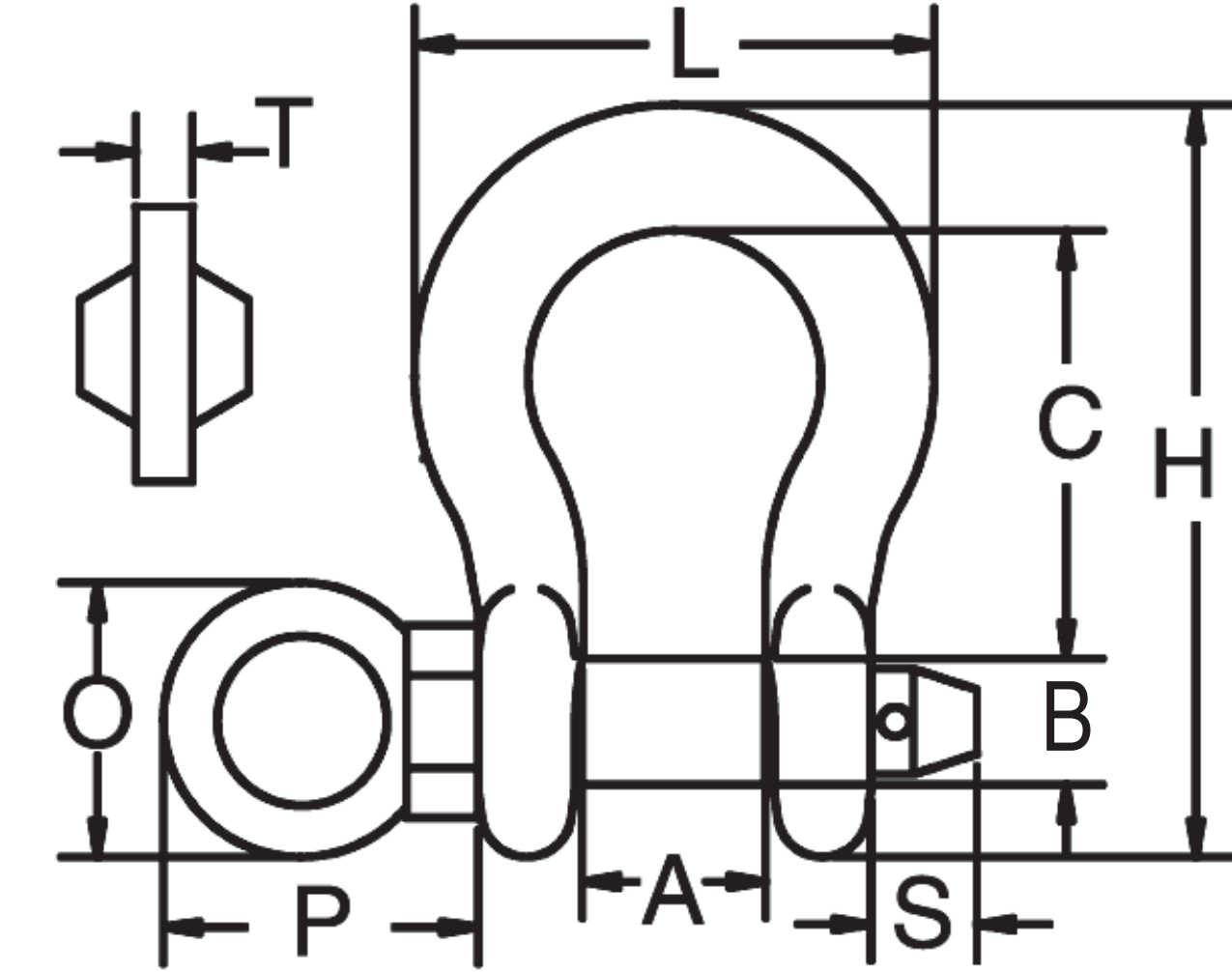

Diagram Images
