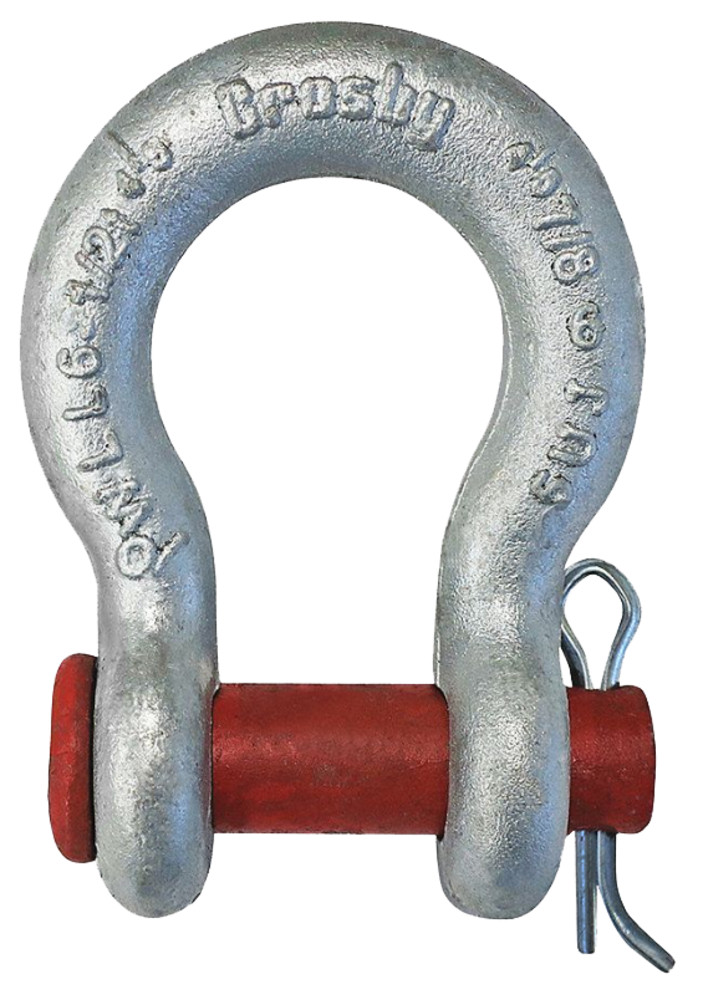

Crosby G-213 Round Pin Anchor Shackles
SKU:
GRRR206
Category:
Shackles
Product details
Forged, Quenched & Tempered, with alloy pins.
Working Load Limit permanently shown on every shackle.
Hot-dip galvanized.
Sizes 3/8 inch and below are mechanically galvanized.
Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit.
Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds, or other certification. Charges for proof testing and certification available when requested at the time of order.
Shackles are Quenched & Tempered and can meet DNV impact requirements of 42 Joules (31 ft-Ib) at -20° C (-4° F).
G-213 Round pin anchor shackles meet the performance requirements of Federal Specification RR-C-271H, Type IVA, Grade A, Class 1, except for those provisions required of the contractor.
DO NOT SIDE LOAD ROUND PIN SHACKLES.
Look for the Red Pin®... the mark of genuine Crosby quality.
×
Download CAD & PDF Files
First Name
(Required)
Last Name
(Required)
Company
(Required)
Email
(Required)
Phone
(Required)
Job Title
(Required)
Postal Code
(Required)
Email
This field is for validation purposes and should be left unchanged.
Videos
G-213 Round Pin Anchor Shackles
Imperial
Metric
Size
Stock No.
Weight Each (lb)

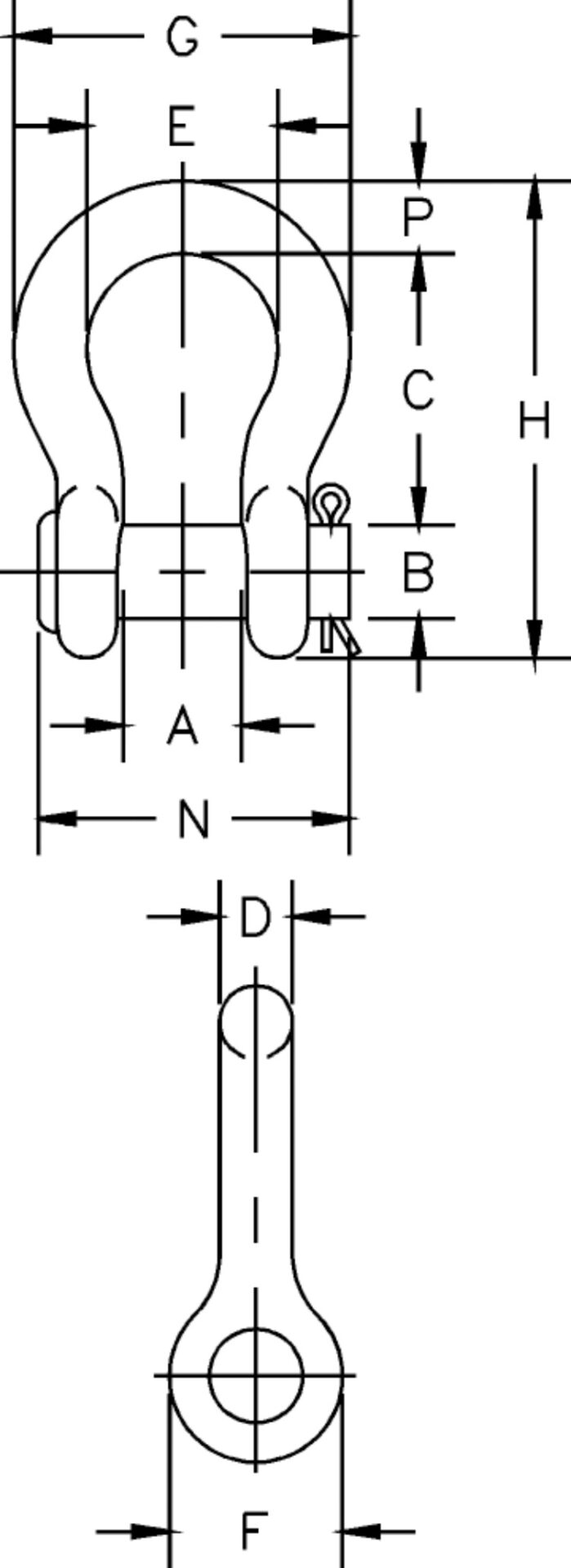

Dimensions (in)
Replacement Round Pin Stock No.
Nominal Size (in.)
WLL (t) Carbon
A
A Tol +/-
B
C
C Tol. +/-
D
E
F
G
H
M
P
1/4
1/2
1018017
.13
.47
.06
.32
1.13
.06
.25
.78
.62
1.28
1.84
1.34
.25
-
5/16
3/4
1018035
.18
.53
.06
.39
1.22
.06
.31
.84
.75
1.46
2.09
1.63
.31
-
3/8
1
1018053
.29
.66
.06
.45
1.44
.13
.38
1.03
.92
1.79
2.50
1.86
.38
-
7/16
1 1/2
1018071
.38
.75
.06
.51
1.69
.13
.44
1.16
1.06
2.04
2.91
2.13
.44
-
1/2
2
1018099
.71
.81
.06
.64
1.88
.13
.50
1.31
1.18
2.31
3.28
2.38
.50
-
5/8
3 1/4
1018115
1.50
1.06
.06
.78
2.38
.13
.62
1.69
1.50
2.93
4.19
2.91
.69
-
3/4
4 3/4
1018133
2.32
1.25
.06
.88
2.81
.25
.75
2.00
1.81
3.50
4.97
3.44
.81
-
7/8
6 1/2
1018151
3.49
1.44
.06
1.03
3.31
.25
.88
2.28
2.10
4.04
5.83
3.82
.97
-
1
8 1/2
1018179
5.00
1.69
.06
1.16
3.75
.25
1.00
2.69
2.38
4.69
6.56
4.53
1.06
-
1-1/8
9 1/2
1018197
6.97
1.81
.06
1.28
4.25
.25
1.16
2.91
2.68
5.15
7.47
5.13
1.25
1082232
1-1/4
12
1018213
9.75
2.03
.06
1.41
4.69
.25
1.29
3.26
3.00
5.76
8.26
5.50
1.38
1082250
1-3/8
13 1/2
1018231
13.25
2.25
.13
1.53
5.25
.25
1.42
3.62
3.31
6.38
9.16
6.13
1.50
1082278
1-1/2
17
1018259
17.25
2.38
.13
1.66
5.75
.25
1.53
3.88
3.62
6.94
10.00
6.50
1.62
1082296
1-3/4
25
1018277
29.46
2.88
.13
2.03
7.00
.25
1.84
5.00
4.19
8.80
12.34
7.75
2.25
1082312
2
35
1018295
45.75
3.25
.13
2.28
7.75
.25
2.08
5.75
4.81
10.15
13.69
8.75
2.40
1082330
Size
Stock No.
Weight Each (kg)
Dimensions (mm)
Replacement Round Pin Stock No.
Nominal Size (in.)
WLL (t) Carbon
A
A Tol +/-
B
C
C Tol. +/-
D
E
F
G
H
M
P
1/4
1/2
1018017
.06
12
1.5
8
29
1.5
6
20
16
32
47
34
6
-
5/16
3/4
1018035
.08
14
1.5
10
31
1.5
8
21
19
37
53
41
8
-
3/8
1
1018053
.13
17
1.5
11
37
3.3
10
26
23
46
64
47
10
-
7/16
1 1/2
1018071
.17
19
1.5
13
43
3.3
11
30
27
52
74
54
11
-
1/2
2
1018099
.32
21
1.5
16
48
3.3
13
33
30
59
83
60
13
-
5/8
3 1/4
1018115
.68
27
1.5
20
60
3.3
16
43
38
74
106
74
18
-
3/4
4 3/4
1018133
1.05
32
1.5
22
71
6.4
19
51
46
89
126
87
21
-
7/8
6 1/2
1018151
1.58
37
1.5
26
84
6.4
22
58
53
103
148
97
25
-
1
8 1/2
1018179
2.27
43
1.5
30
95
6.4
25
68
60
119
167
115
27
-
1-1/8
9 1/2
1018197
3.16
46
1.5
32
108
6.4
30
74
68
131
190
130
32
1082232
1-1/4
12
1018213
4.42
52
1.5
36
119
6.4
33
83
76
146
210
140
35
1082250
1-3/8
13 1/2
1018231
6.01
57
3.3
39
133
6.4
36
92
84
162
233
156
38
1082278
1-1/2
17
1018259
7.82
60
3.3
42
146
6.4
39
99
92
176
254
165
41
1082296
1-3/4
25
1018277
13.4
73
3.3
52
178
6.4
47
127
106
224
313
197
57
1082312
2
35
1018295
20.8
83
3.3
58
197
6.4
53
146
122
258
348
222
61
1082330
6:1 Design Factor. Maximum Proof Load is 2 times the Working Load Limit.

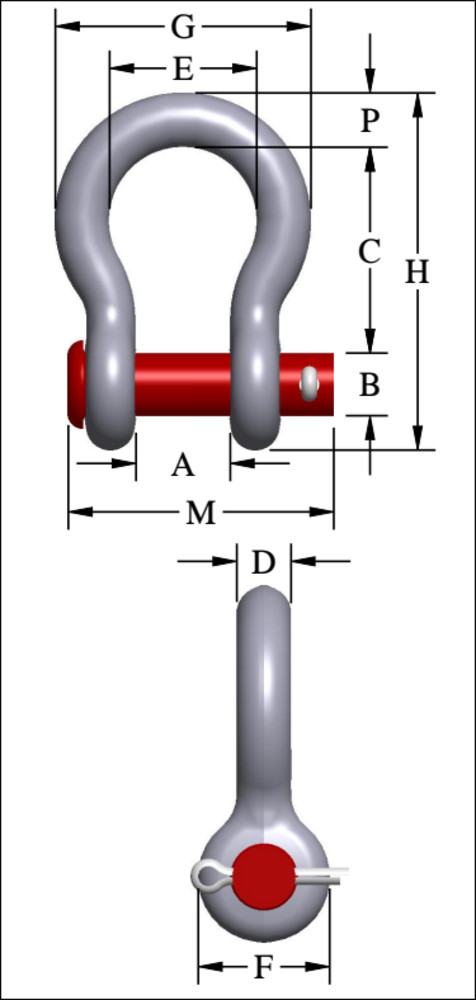

Diagram Images
