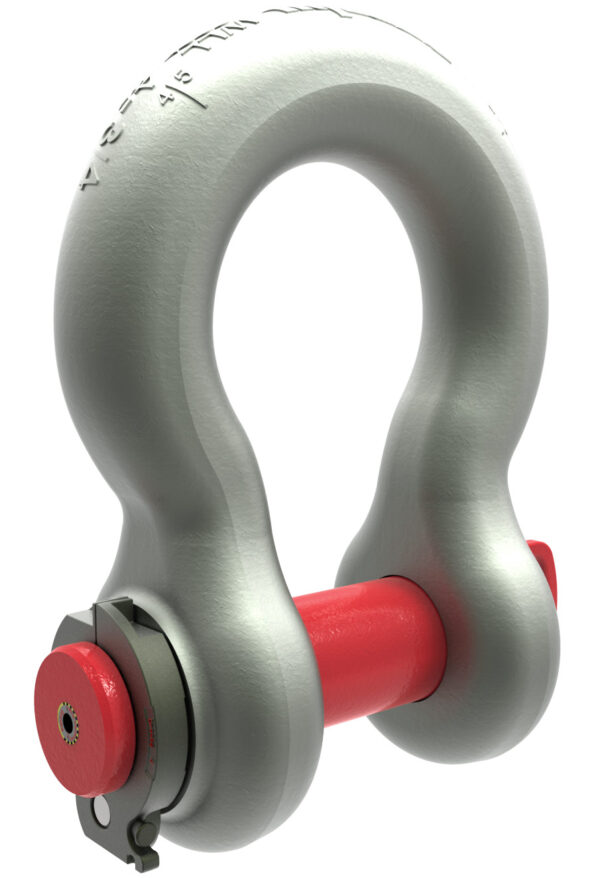

Crosby G-2140E Alloy Easy-Loc Shackles

Product details

• Quenched & Tempered.
• Alloy bows, alloy bolts.
• Meets performance requirements of Grade 8 shackles.
• Working Load Limit is permanently shown on every shackle.
• 200, 250, and 300 metric ton shackle bows are Dimetcoted®; Pins are Dimetcoted and painted red.
• Approved for use at -40° F (-40° C) to 400° F (204° C).
• Shackles are Quenched & Tempered and can meet DNV impact requirements of 31 ft-lb (42 Joules) at -4° F (-20° C).
• All sizes are individually proof tested to 2.0 times the Working Load Limit.
• Shackles are provided as follows:
  • Serialized bolt and bow
  • Material certification (chemical)
  • Magnetic particle inspected
  • Certification must be requested at time of order
• Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these shackles meet other critical performance requirements including impact properties and material traceability, not addressed by ASME B30.26.
• Type Approval certification in accordance with ABS 2016 Steel Vessel Rules and 2016 ABS Guide for Certification of Lifting Appliances. Certificates available when requested at time of order and may include additional charges.
• G-2140E meets the performance requirements of Federal Specification RR-C-271H, Type IVA, Grade B, Class 3, except for those provisions required of the contractor.
• Look for the Red Pin®... the mark of genuine Crosby quality.
