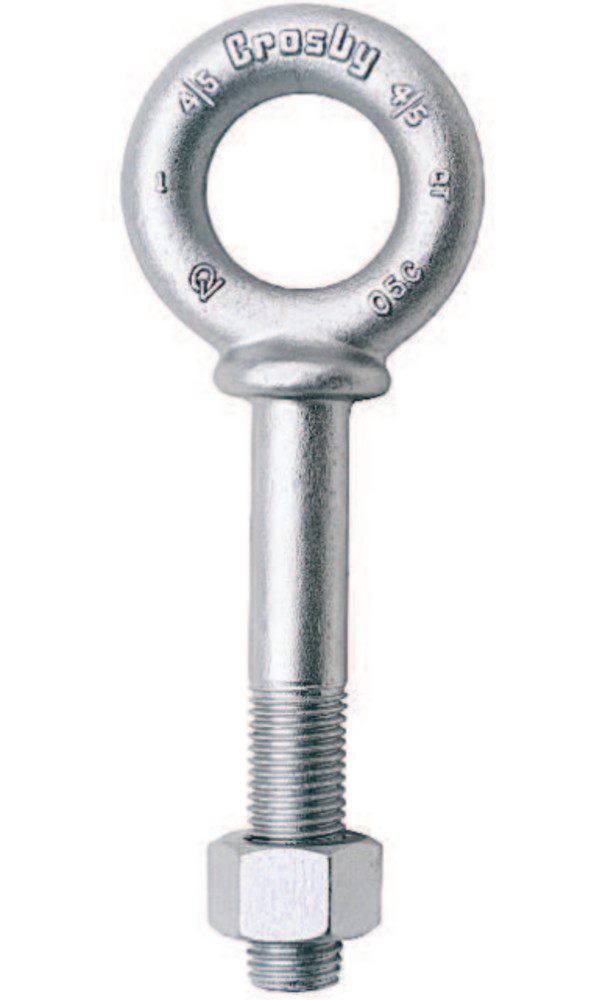

Crosby G-277 Shoulder Nut Eye Bolts

Crosby G-277 Shoulder Nut Eye Bolts - Image 2

Crosby G-277 Shoulder Nut Eye Bolts

SKU: GRRR117 Category: Lifting Points

Product details

Forged steel, Quenched & Tempered.
Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
Working Load Limits shown are for in-line pull. For angle loading, see applications and warning section.
Meets or exceeds all requirements of ASME B30.26, including identification, ductility, design factor, proof load, and temperature requirements. Importantly, these bolts meet other critical performance requirements, including fatigue life, impact properties, and material traceability not addressed by ASME B30.26.
All bolts hot-dip galvanized after threading (UNC).
Furnished with standard hot-dip galvanized, heavy hex nuts.

Videos

G-277 Shoulder Nut Eye Bolts

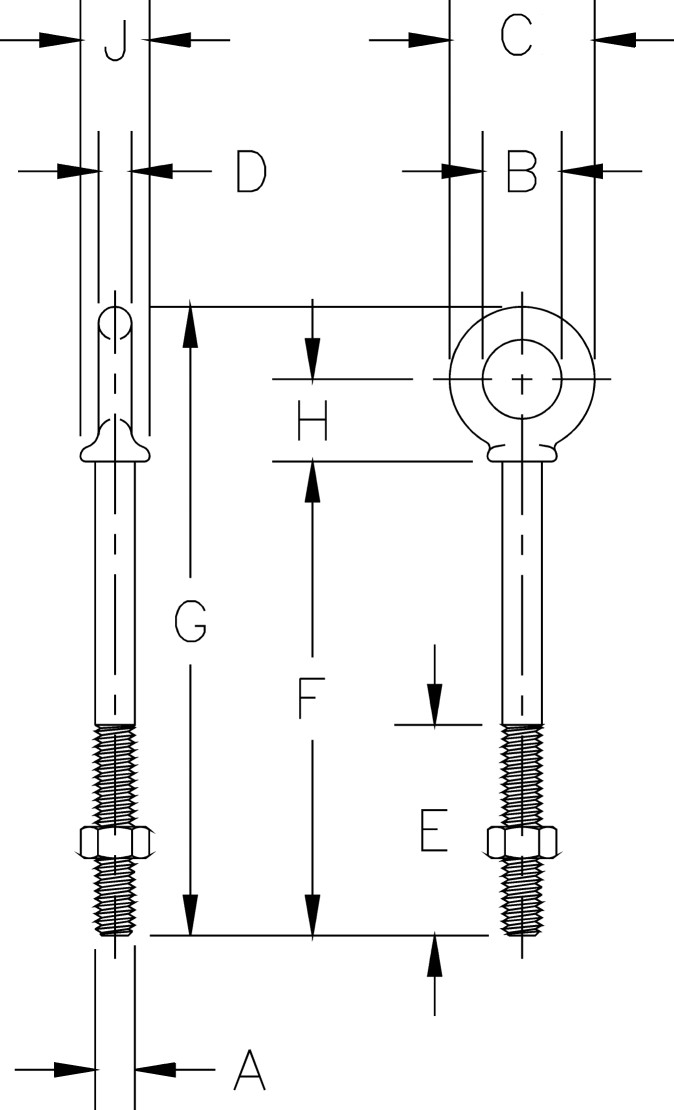

Shank Diameter & Length (in)	Stock No.	Working Load Limit (lb)	Weight Each (lb)	Dimensions (in)
				A	B	C	D	E	F	G	H	J
													3/8 x 2-1/2	1045096	1550	0.21	.38	.75	1.38	.31	1.50	2.50	3.97	.78	.66
													3/8 x 4-1/2	1045112	1550	0.25	.38	.75	1.38	.31	2.50	4.50	5.97	.78	.66
													1/2 x 3-1/4	1045130	2600	0.43	.50	1.00	1.75	.38	1.50	3.25	5.12	1.00	.91
													1/2 x 6	1045158	2600	0.57	.50	1.00	1.75	.38	3.00	6.00	7.88	1.00	.91
													5/8 x 4	1045176	5200	0.69	.62	1.25	2.25	.50	2.00	4.00	6.44	1.31	1.12
													5/8 x 6	1045194	5200	1.02	.62	1.25	2.25	.50	3.00	6.00	8.44	1.31	1.12
													3/4 x 4-1/2	1045210	7200	1.45	.75	1.50	2.75	.62	2.00	4.50	7.44	1.56	1.38
													3/4 x 6	1045238	7200	1.68	.75	1.50	2.75	.62	3.00	6.00	8.94	1.56	1.38
													7/8 x 5	1045256	10600	2.25	.88	1.75	3.25	.75	2.50	5.00	8.46	1.84	1.56
													1 x 6	1045292	13300	3.66	1.00	2.00	3.75	.88	3.00	6.00	9.97	2.09	1.81
													1 x 9	1045318	13300	4.23	1.00	2.00	3.75	.88	4.00	9.00	12.97	2.09	1.81
													1-1/4 x 8	1045336	21000	6.50	1.25	2.50	4.50	1.00	4.00	8.00	12.72	2.47	2.28
													1-1/4 x 12	1045354	21000	7.95	1.25	2.50	4.50	1.00	4.00	12.00	16.72	2.47	2.28
1-1/2 x 15	1045372	24000	14.25										1.50	3.00	5.50	1.25	6.00	15.00	20.75	3.00	2.75

Shank Diameter & Length (mm)	Stock No.	Working Load Limit (t)	Weight Per 100 (kg)	Dimensions (mm)
				A	B	C	D	E	F	G	H	J
													9.53 x 63.5	1045096	.70	9.71	9.7	19.1	35.1	7.9	38.1	63.5	101	19.8	16.8
													9.53 x 114	1045112	.70	11.5	9.7	19.1	35.1	7.9	63.5	114	152	19.8	16.8
													12.7 x 82.5	1045130	1.18	19.3	12.7	25.4	44.5	9.7	38.1	82.5	130	25.4	23.1
													12.7 x 152	1045158	1.18	25.8	12.7	25.4	44.5	9.7	76.0	152	200	25.4	23.1
													15.9 x 102	1045176	2.35	31.1	15.7	31.8	57.0	12.7	51.0	102	164	33.3	28.4
													15.9 x 152	1045194	2.35	46.4	15.7	31.8	57.0	12.7	76.0	152	214	33.3	28.4
													19.1 x 114	1045210	3.26	66	19.1	38.1	70.0	15.7	51.0	114	189	39.6	35.1
													19.1 x 152	1045238	3.26	76	19.1	38.1	70.0	15.7	76.0	152	227	39.6	35.1
													22.2 x 127	1045256	4.80	102	22.4	44.5	82.5	19.1	63.5	127	215	46.7	39.6
													25.4 x 152	1045292	6.03	166	25.4	51.0	95.5	22.4	76.0	152	253	53.0	46.0
													25.4 x 229	1045318	6.03	192	25.4	51.0	95.5	22.4	102	229	329	53.0	46.0
													31.8 x 203	1045336	9.52	295	31.8	63.5	114	25.4	102	203	323	62.5	58.0
													31.8 x 305	1045354	9.52	361	31.8	63.5	114	25.4	102	305	425	62.5	58.0
38.1 x 381	1045372	10.8	646										38.1	76.0	140	31.8	152	381	527	76.0	70.0

5:1 Design Factor. Maximum Proof Load is 2 times the Working Load Limit.
