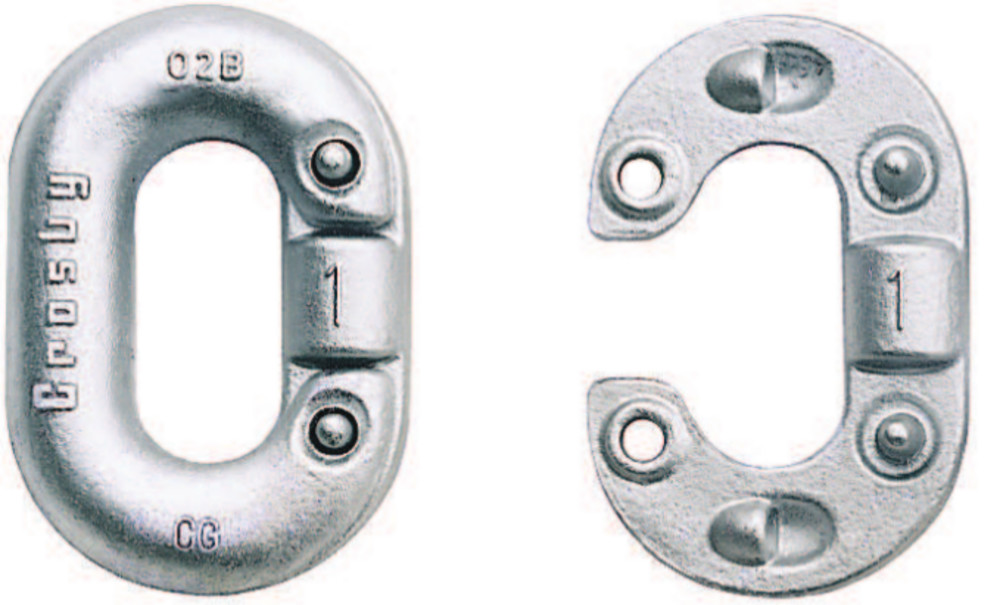

Steel chain links; one solid, one open; marked CG and Crosby. Industrial hardware for lifting and rigging.

Crosby G-335 “Missing Link”® Replacement Links

SKU: GRRR457 Category: Chain & Accessories

Product details

Forged steel - Quenched & Tempered.
Integral rivets join the two halves.
After making connections, rivets must be peened.
All sizes have countersunk rivet holes.
Meets or exceeds the performance requirements of Federal Specifications RR-C-27lG, Type II, except for those provisions required of the contractor.
Not suitable for use with Grade 80 or Grade 100 chain and chain slings used in overhead lifting.

Videos

G-335 “Missing Link”® Replacement Links

Chain Size (in)	Stock No.	Working Load Limit (lb)	Links Per Box	Weight Per 100 (lb)	Dimensions (in)
					A	B	C	D	E	F	G
												*1/4	1013110	1325	10	6.25	.28	.88	.44	.44	1.50	1.00	.31
												*5/16	1013138	1950	10	12.50	.34	.94	.47	.47	1.69	1.16	.38
												3/8	1013156	2750	10	20.00	.41	1.13	.56	.56	2.06	1.38	.47
												7/16	1013174	3625	10	27.50	.47	1.28	.59	.59	2.34	1.53	.53
												1/2	1013192	4750	10	37.50	.53	1.47	.66	.66	2.66	1.72	.59
												5/8	1013236	7250	10	72.50	.66	1.81	.78	.81	3.31	2.09	.75
												3/4	1013254	10250	10	122.50	.78	2.13	.94	1.06	3.88	2.50	.88
												7/8	1013272	12000	Bulk	175.00	.91	2.50	1.13	1.13	4.50	2.94	1.00
												† 1	1013290	15500	Bulk	250.00	1.03	2.75	1.25	1.25	5.00	3.31	1.13

Chain Size (mm)	Stock No.	Working Load Limit (t)	Links Per Box	Weight Per 100 (kg)	Dimensions (mm)
					A	B	C	D	E	F	G
												*7	1013110	.60	10	2.83	7.10	22.4	11.2	11.2	38.1	25.4	7.85
												*8	1013138	.89	10	5.67	8.65	23.9	11.9	11.9	42.9	29.5	9.65
												10	1013156	1.25	10	9.07	10.4	28.7	14.2	14.2	52.5	35.1	11.9
												11	1013174	1.65	10	12.5	11.9	32.5	15.0	15.0	59.5	38.9	13.5
												13	1013192	2.15	10	17.0	13.5	37.3	16.8	16.8	67.5	43.7	15.0
												16	1013236	3.30	10	32.9	16.8	46.0	19.8	20.6	84.0	53.0	19.1
												19	1013254	4.65	10	55.5	19.8	54.0	23.9	26.9	98.5	63.5	22.4
												22	1013272	5.45	Bulk	79.5	23.1	63.5	28.7	28.7	114	74.5	25.4
												† 26	1013290	7.00	Bulk	113	26.2	70.0	31.8	31.8	127	84.0	28.7

4:1 Design Factor. *Rivets Only - No interlocking lugs. †Has reinforced rivet holes.
