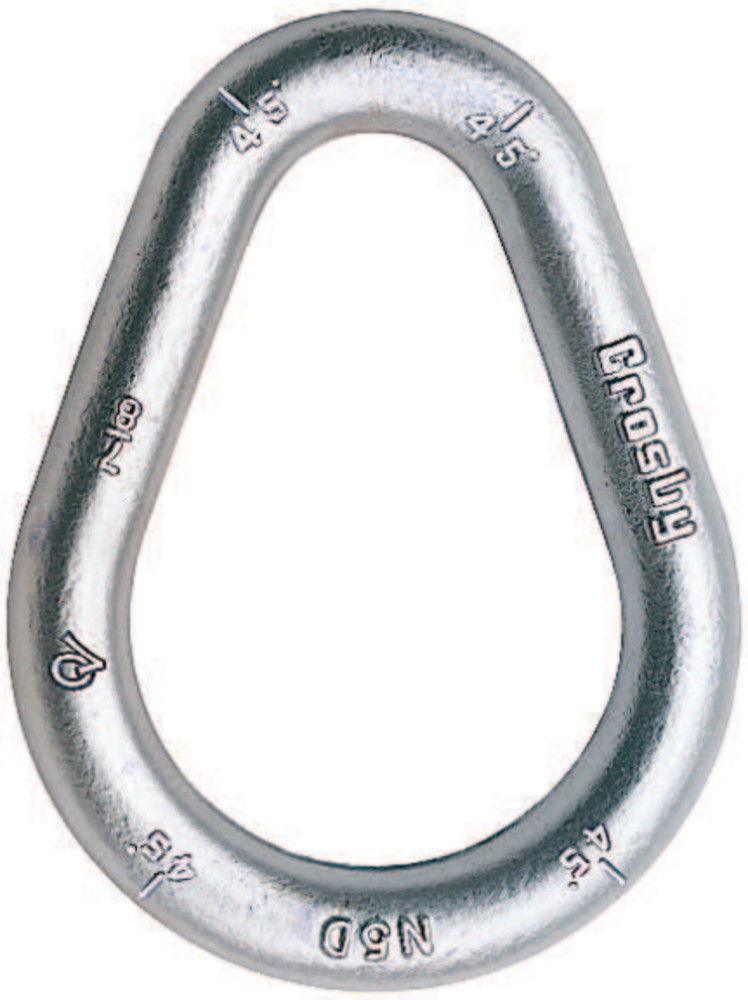

Metal pear-shaped link with engravings for heavy-duty lifting and rigging applications by Crosby.

Crosby G-341 / S-341 Weldless Sling Links

SKU: GRRR155 Category: Master Links

Product details

Forged carbon steel - Quenched & Tempered.
Self colored (S) or hot-dip galvanized (G).

Videos

G-341 / S-341 Weldless Sling Links

Size (A) (in)	Stock No.		Working Load Limit Single Pull (lb)	Weight Each (lb)	Dimensions (in)
	G-341 Galv.	S-341 S.C.			B	C	F
								3/8	1013897	1013904	1,800	.23	2.25	1.50	.75
								1/2	1013913	1013922	2,900	.55	3.00	2.00	1.00
								5/8	1013931	1013940	4,200	1.06	3.75	2.50	1.25
								3/4	1013959	1013968	6,000	1.88	4.50	3.00	1.50
								7/8	1013977	1013986	8,300	2.75	5.25	3.50	1.75
								1	1013995	1014002	10,800	4.35	6.00	4.00	2.00
								1 1/4	1014011	1014020	16,750	7.60	7.75	5.00	2.50
								1 3/8	1014039	1014048	20,500	11.30	8.25	5.50	2.75

Size (A) (mm)	Stock No.		Working Load Limit Single Pull (t)	Weight Each (kg)	Dimensions (mm)
	G-341 Galv.	S-341 S.C.			B	C	F
								10	1013897	1013904	.82	0.10	57.2	38.1	19.1
								13	1013913	1013922	1.32	.25	76.2	50.8	25.4
								16	1013931	1013940	1.91	.48	95.5	63.5	31.8
								19	1013959	1013968	2.72	.85	114	76.2	38.1
								22	1013977	1013986	3.76	1.25	133	88.9	44.5
								25	1013995	1014002	4.90	1.97	152	102	51.0
								32	1014011	1014020	7.60	3.45	197	127	63.5
								35	1014039	1014048	9.30	5.13	210	140	70.0

6:1 Design Factor. Based on single leg sling (in-line load), or resultant load on multiple legs with an included angle less than or equal to 120°.
