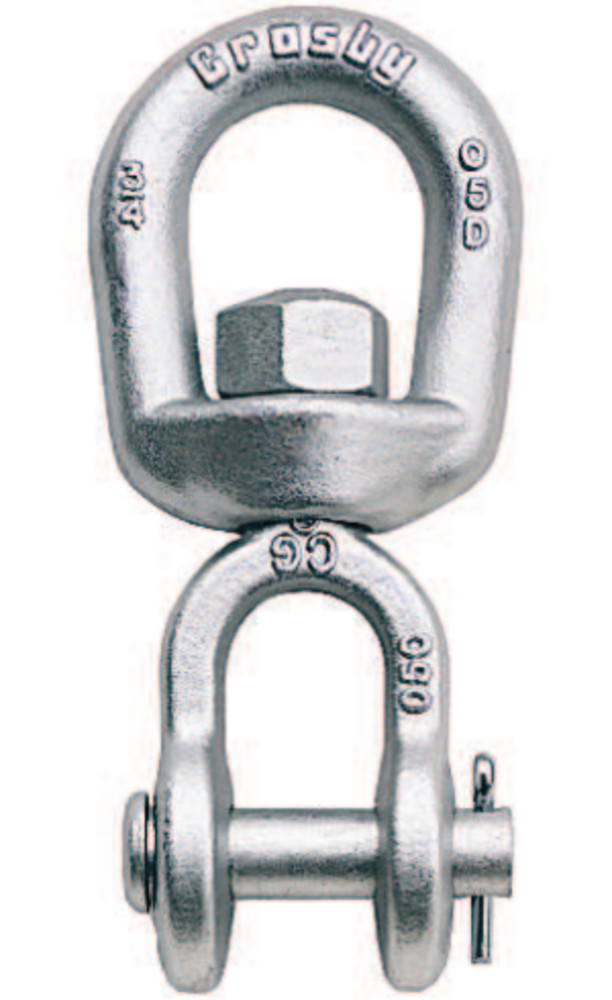

Crosby G-403 Jaw End Swivels

Crosby G-403 Jaw End Swivels - Image 2

Crosby G-403 Jaw End Swivels

SKU: GRRR198 Category: Hooks & Swivels

Product details

402 and 403 forged swivels are positioning devices and are not intended to rotate under load.
Hot-dip Galvanized.
Quenched & Tempered.
Crosby products meet or exceed all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, Crosby products meet other critical performance requirements, including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.
G-402 swivels meet the performance requirements of Federal Specification RR-C-271H, Type VII, Class 2, except for those provisions required of the contractor.
G-403 swivels meet the performance requirements of Federal Specification RR-C-271H, Type VII, Class 3, except for those provisions required of the contractor.

Videos

G-403 Jaw End Swivels

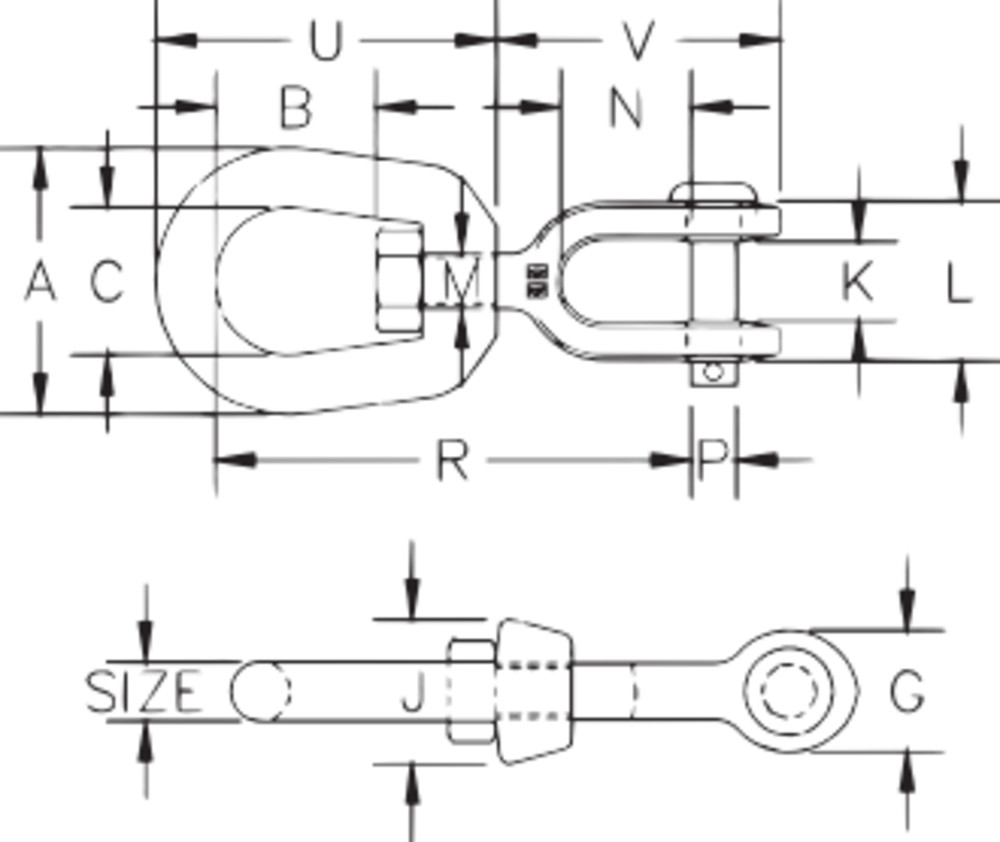

Size (in)	Stock No.	Working Load Limit (lb)*	Weight Each (lb)	Dimensions (in)
				A	B	C	G	J	K	L	M	N	P	R	U	V
																	5/16	1016411	1250	.34	1.63	.81	1.00	.81	.81	.50	1.13	.38	.88	.31	2.94	2.06	1.81
																	3/8	1016439	2250	.66	2.00	.94	1.25	1.00	1.00	.63	1.41	.50	1.06	.38	3.63	2.50	2.25
																	1/2	1016457	3600	1.34	2.50	1.31	1.50	1.31	1.31	.75	1.75	.63	1.31	.50	4.50	3.19	2.88
																	5/8	1016475	5200	2.48	3.00	1.56	1.75	1.63	1.50	.94	2.06	.75	1.50	.63	5.31	3.88	3.44
																	3/4	1016493	7200	3.88	3.50	1.75	2.00	1.88	1.88	1.13	2.53	.88	1.75	.75	6.06	4.31	4.00
																	7/8	1016518	10000	5.87	4.00	2.06	2.25	2.13	2.13	1.34	2.79	1.00	2.06	.88	7.00	5.00	4.53
																	1	1016536	12500	9.84	4.50	2.31	2.50	2.63	2.38	1.75	3.72	1.13	2.81	1.13	8.56	5.75	5.94
																	1-1/4	1016572	18000	15.75	5.69	2.69	3.13	3.13	3.00	2.06	4.31	1.63	2.81	1.38	9.75	7.06	6.38
																	1-1/2	1016590	45200	54.75	7.00	3.88	4.00	5.63	4.00	2.88	6.00	2.25	4.44	2.25	14.25	10.00	10.84

Size (mm)	Stock No.	Working Load Limit (t)	Weight Each (kg)	Dimensions (mm)
				A	B	C	G	J	K	L	M	N	P	R	U	V
																	8	1016411	.57	.15	41.4	20.6	25.4	20.6	20.6	12.7	28.7	9.65	22.4	7.85	74.5	52.0	46.0
																	10	1016439	1.02	.30	51.0	23.9	31.8	25.4	25.4	16.0	35.8	12.7	26.9	9.65	92.0	63.5	57.0
																	13	1016457	1.63	.61	63.5	33.3	38.1	33.3	33.3	19.1	44.5	16.0	33.3	12.7	114	81.0	73.0
																	16	1016475	2.36	1.12	76.0	39.5	44.5	41.4	38.1	23.9	52.0	19.1	38.1	16.0	135	98.5	87.5
																	19	1016493	3.27	1.76	89.0	44.5	51.0	47.8	47.8	28.7	64.5	22.4	44.5	19.1	154	109	102
																	22	1016518	4.54	2.66	102	52.0	57.0	54.0	54.0	34.0	70.9	25.4	52.0	22.4	178	127	115
																	25	1016536	5.67	4.46	114	58.5	63.5	67.0	60.5	44.5	94.5	28.7	71.5	28.7	217	146	151
																	32	1016572	8.16	7.14	145	68.5	79.5	79.5	76.0	52.0	109	41.4	71.5	35.1	248	179	162
																	38+	1016590	20.5	24.8	178	98.5	102	143	102	73.0	152	57.0	113	57.0	362	254	275

5:1 Design Factor.
