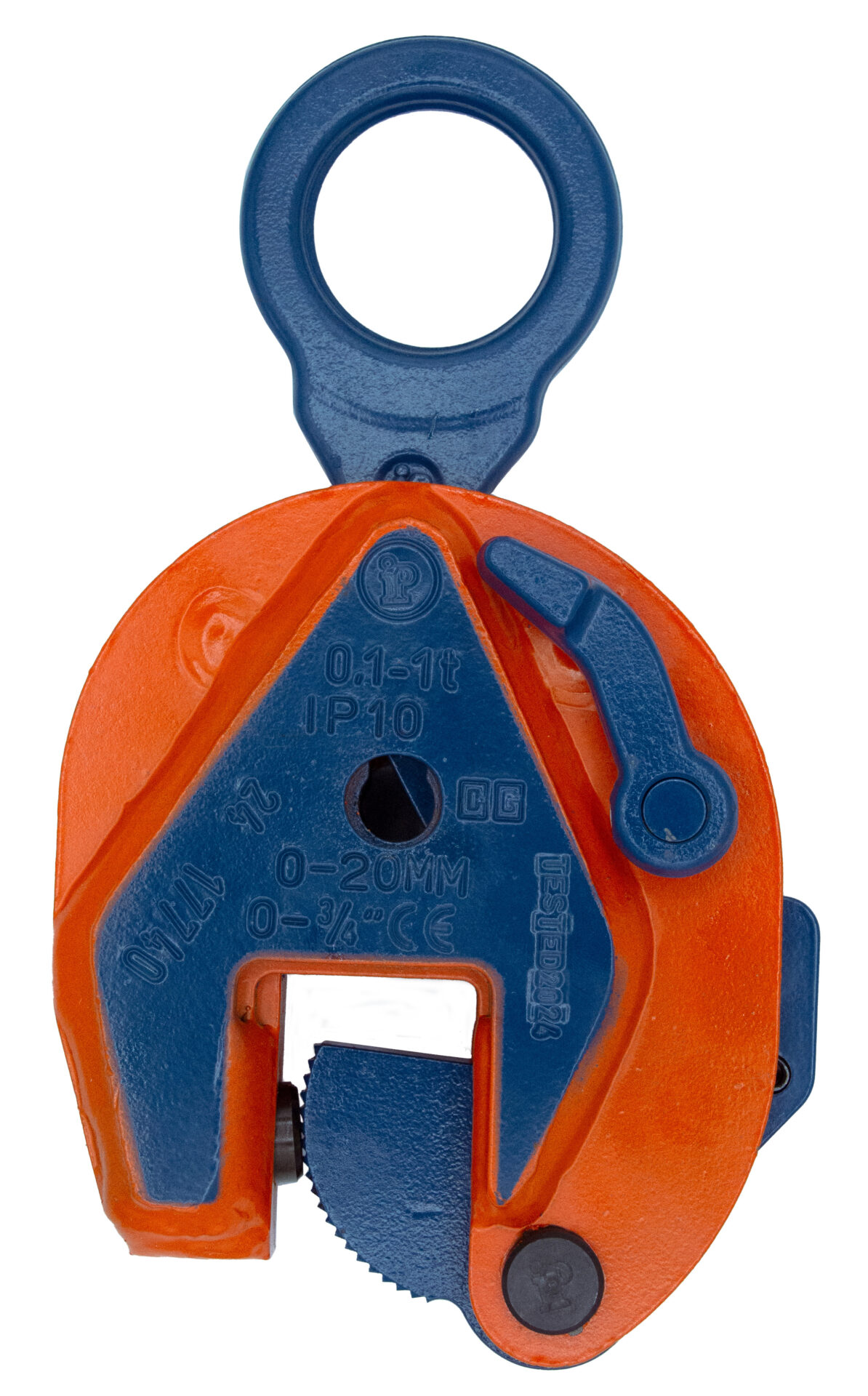

Crosby IP Model IP10 / IP10J / IP10S / IP10H

SKU: GRRR381 Category: Lifting Clamps & Magnets

Product details

Available in a wide variety of capacities and jaw openings.
Higher Working Load Limits available upon request.
Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
Individually Proof Tested to 2 times the Working Load Limit with certification.
Crosby IP logo, Working Load Limit and jaw opening permanently stamped on body.
Each product is individually serialized, with the serial number and Proof Load test date stamped on body. User manual and test certificate included with each clamp.
Available in a variety of styles:
- IP10 - Standard clamp for materials with a surface hardness to 363HV10 (345 HB).
- IP10J - Larger jaw opening.
- IP10S - For use with stainless steel material.
- IP10H - For use with materials with a surface hardness to 472HV10 (450 HB).

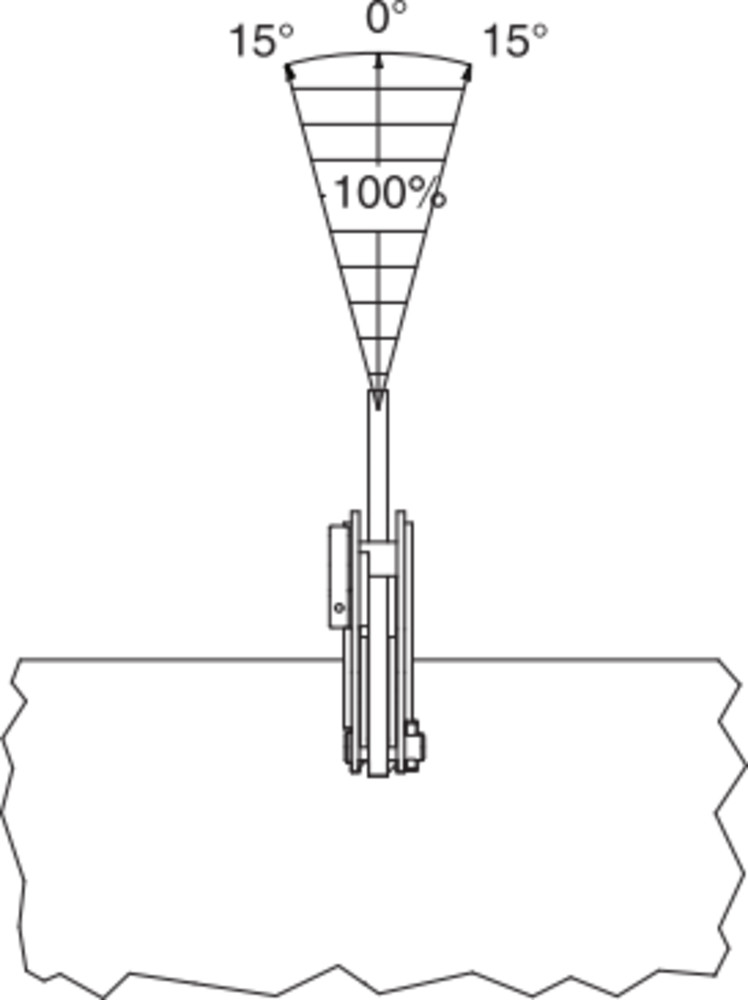

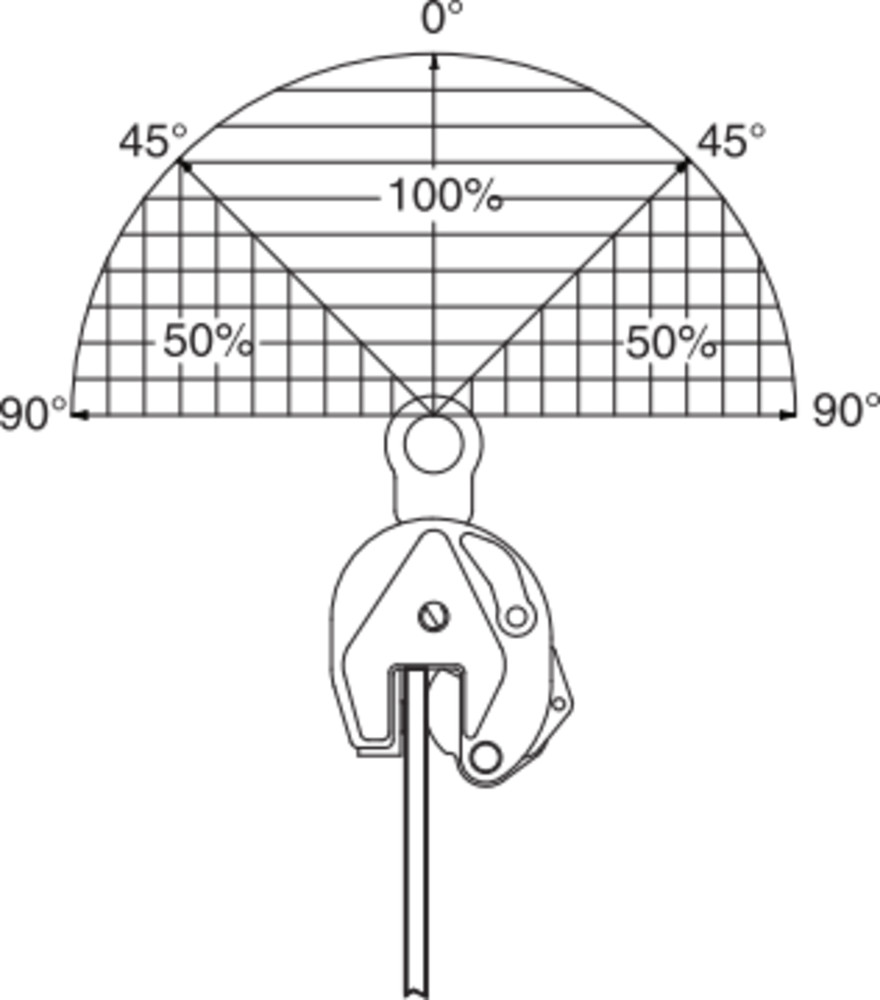

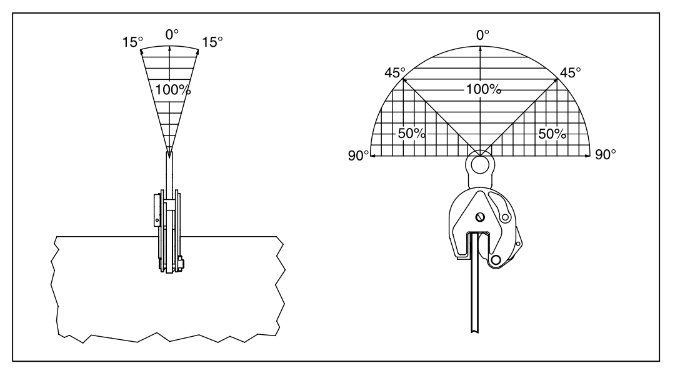

Full 180° turning range for material transfer, turning or moving.
Lock open, lock closed ability with latch for pretension on material and then release of material.
Maintenance and repair kits are available.
Minimum WLL is 5% of maximum WLL for .5t IP10 only.
Minimum WLL is 10% of maximum WLL for all other IP10, IP10J, IP10S, IP10H clamps.
For plate surface hardness till 279HV10, only 5% of minimum WLL is needed.
Temperature range -40 °F (-40 °C) to +212 °F (+100 °C)

Videos

Model IP10 / IP10J / IP10S / IP10H

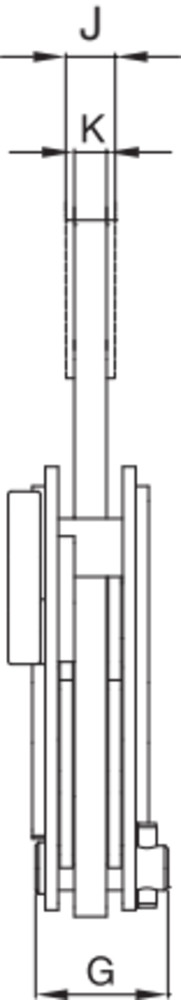

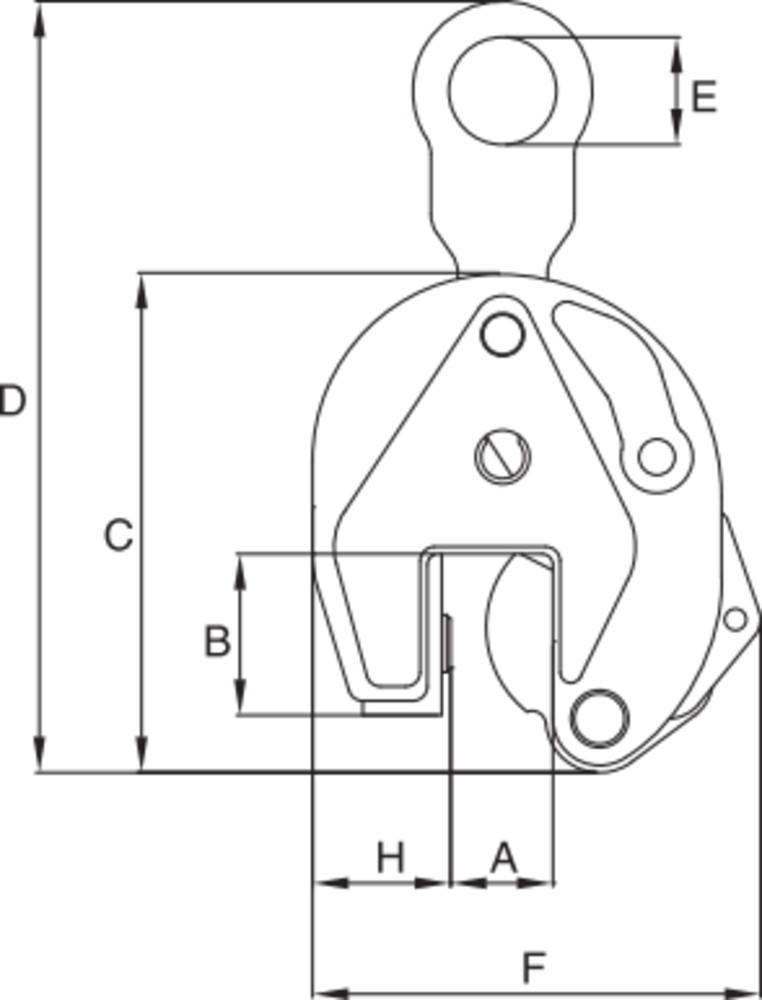

Model	Working Load Limit (t)*	Stock No.	Weight Each (lb)	Dimensions (in)										Maintenance Kit Stock No.
				Jaw A	B	C	D	E	F	G	H	J	K
															IP10	0.5	2701674	3.97	0 - 0.63	1.73	5.12	7.99	1.57	4.53	1.65	1.10		0.43	2715054
															IP10	1	2701662	4.85	0 - 0.75	1.77	5.47	8.35	1.57	5.00	1.65	1.50		0.43	2715009
															IP10	2	2701676	16.8	0 - 1.38	3.07	7.91	12.99	2.76	7.40	2.52	2.17		0.63	2715063
															IP10	3	2701664	30.4	0 - 1.56	3.94	9.96	17.09	2.95	8.74	3.07	2.36		0.79	2715018
															IP10	4.5	2701666	33.1	0 - 1.56	3.94	9.96	17.09	2.95	8.94	3.23	2.56		0.79	2715018
															IP10	6	2701668	50.3	0 - 2.00	4.96	11.89	20.35	3.15	11.50	3.31	3.74	1.57	0.79	2715036
															IP10	9	2701670	65.8	0 - 2.00	4.96	12.80	21.42	3.15	12.20	3.70	4.09	1.73	0.98	2715288
															IP10	12	2701678	111	0 - 2.13	6.30	15.43	22.60	3.15	17.05	4.76	5.39	1.61	0.98	2715102
															IP10	16	2701682	150	0.25 - 2.50	7.09	18.23	27.01	3.46	19.37	4.76	6.02	1.77	0.98	2715108
															IP10	22.5	2701686	243	0.25 - 3.13	8.74	21.81	31.81	4.33	22.24	5.47	7.32	1.93	0.98	2715114
															IP10	30	2701690	273	0.25 - 3.13	8.74	21.81	31.61	4.33	22.24	6.02	7.32	2.13	1.18	2715120
															IP10J	0.5	2701646	3.97	0.59 - 1.18	1.77	5.04	8.23	1.57	5.04	1.61	1.26		0.43	2715054
															With larger jaw opening
IP10J	1	2702462	5.07											0.75 - 1.56	2.17	5.94	8.35	1.57	5.55	1.65	1.57		0.43	2715012
IP10J	3	2702458	36.4	1.56 - 3.13	4.53	10.63	16.93	2.95	10.91	3.07	2.64		0.79	2715021
IP10J	4.5	2702460	39.7	1.56 - 3.13	4.53	10.63	16.93	2.95	10.91	3.23	2.83		0.79	2715021
IP10J	6	2701705	55.8	2.00 - 4.00	4.96	11.89	19.92	3.15	13.23	3.31	3.74	1.57	0.79	2715040
IP10J	9	2701672	73.1	2.00 - 4.00	4.96	12.80	21.34	3.15	14.17	3.70	4.13	1.73	0.98	2715050
IP10J	12	2701680	128	2.13 - 4.25	7.01	17.24	24.41	3.15	19.33	4.76	5.35	1.61	0.98	2715105
IP10J	16	2701684	176	2.50 - 5.00	8.19	20.51	28.90	3.46	22.13	4.76	6.30	1.77	0.98	2715111
IP10J	22.5	2701688	287	3.13 - 6.13	10.04	24.72	34.76	4.33	25.98	5.47	7.72	1.93	0.98	2715117
IP10J	30	2701692	336.0	3.13 - 6.13	10.04	24.72	34.92	4.33	25.98	6.02	7.72	2.13	1.18	2715123
For stainless steel - with fixed hoisting eye
IP10S	0.5	2702274	3.97	0 - 0.63	1.73	5.12	7.99	1.57	4.53	1.65	1.10		0.43	2715234
IP10S	1	2702262	16.8	0 - 0.75	1.77	5.47	8.35	1.57	5.00	1.65	1.50		0.43	2715243
IP10S	2	2702276	30.4	0 - 1.38	3.07	7.91	12.99	2.76	7.40	2.52	2.17		0.63	2715252
IP10S	3	2702264	33.1	0 - 1.56	3.94	9.96	17.09	2.95	8.74	3.07	2.36		0.79	2715253
IP10S	4.5	2702266	51.8	0 - 1.56	3.94	9.96	17.09	2.95	8.94	3.23	2.56		0.79	2715253
IP10S	6	2702268	60.6	0 - 2.00	4.96	11.89	20.35	3.15	11.50	3.31	3.74	1.57	0.79	2715254
IP10S	9	2702270	60.6	0 - 2.00	4.96	12.80	21.42	3.15	12.20	3.70	4.09	1.73	0.98	2715255
For very hard materials - with fixed hoisting eye
IP10H	0.5	2702174	3.97	0 - 0.63	1.73	5.12	8.15	1.57	4.53	1.65	1.10		0.43	2715207
IP10H	0.75	2702162	4.85	0 - 0.75	1.77	5.47	8.62	1.57	5.12	1.10	1.50		0.43	2729552
IP10H	1	2702176	16.8	0 - 1.38	3.07	7.91	12.99	2.76	7.40	2.52	2.17		0.63	2715216
IP10H	2	2702164	30.4	0 - 1.56	3.94	9.96	17.09	2.95	8.74	3.07	2.36		0.79	2715225
IP10H	3	2702166	33.1	0 - 1.56	3.94	9.96	17.09	2.95	8.94	3.23	2.56		0.79	2715225
IP10H	4.5	2702168	51.8	0 - 2.00	4.96	11.89	20.35	3.15	11.50	3.31	3.74	1.57	0.79	2715227
IP10H	6	2702170	60.6	0 - 2.00	4.96	12.80	21.42	3.15	12.20	3.62	4.13	1.73	0.98	2715229

Model	Working Load Limit (t)*	Stock No.	Weight Each (kg)	Dimensions (mm)										Maintenance Kit Stock No.
				Jaw A	B	C	D	E	F	G	H	J	K
															IP10	0.5	2701674	1.8	0 - 16	44	130	203	40	115	42	28	-	11	2715054
															IP10	1	2701662	2.2	0 - 20	45	139	212	40	127	42	38	-	11	2715009
															IP10	2	2701676	7.6	0 - 35	78	201	330	70	188	64	55	-	16	2715063
															IP10	3	2701664	13.8	0 - 40	100	253	434	75	222	78	60	-	20	2715018
															IP10	4.5	2701666	15.0	0 - 40	100	253	434	75	227	82	65	-	20	2715018
															IP10	6	2701668	22.8	0 - 50	126	302	517	80	292	84	95	40	20	2715036
															IP10	9	2701670	29.8	0 - 50	126	325	544	80	310	94	104	44	25	2715288
															IP10	12	2701678	50.4	0 - 54	160	392	574	80	433	121	137	41	25	2715102
															IP10	16	2701682	68.0	5 - 64	180	463	686	88	492	121	153	45	25	2715108
															IP10	22.5	2701686	108	5 - 80	222	554	803	110	565	153	186	49	25	2715114
															IP10	30	2701690	124	5 - 80	222	554	803	110	565	153	186	54	30	2715120
															IP10J	0.5	2701646	1.8	15 - 30	45	128	209	40	128	42	32	-	11	2715054
															With larger jaw opening
IP10J	1	2702462	2.5											20 - 40	55	151	207	40	141	42	41		11	2715012
IP10J	3	2702458	16.4	40 - 80	115	271	432	75	276	78	67		20	2715021
IP10J	4.5	2702460	18.0	40 - 80	115	271	432	75	281	82	72		20	2715021
IP10J	6	2701705	25.3	50 - 100	126	302	506	80	336	84	95	40	20	2715040
IP10J	9	2701672	33.1	50 - 100	126	325	542	80	360	94	105	44	25	2715050
IP10J	12	2701680	58.0	54 - 108	178	438	620	80	491	121	136	41	25	2715105
IP10J	16	2701684	80.0	64 - 128	208	521	734	88	562	121	160	45	25	2715111
IP10J	22.5	2701688	130.0	80 - 155	255	628	883	110	660	139	196	49	25	2715117
IP10J	30	2701692	152.0	80 - 155	255	628	887	110	660	153	196	54	30	2715123
For stainless steel - with fixed hoisting eye
IP10S	0.5	2702274	1.8	0 - 16	44	130	203	40	115	42	28	11	11	2715234
IP10S	1	2702262	2.2	0 - 20	45	139	212	40	127	42	38	11	11	2715243
IP10S	2	2702276	7.6	0 - 35	78	201	330	70	188	64	55	16	16	2715252
IP10S	3	2702264	13.8	0 - 40	100	253	434	75	222	78	60	20	20	2715253
IP10S	4.5	2702266	15.0	0 - 40	100	253	434	75	227	82	65	20	20	2715253
IP10S	6	2702268	23.5	0 - 50	126	302	517	80	292	84	95	20	20	2715254
IP10S	9	2702270	27.5	0 - 50	126	325	544	80	310	94	104	25	25	2715255
For very hard materials - with fixed hoisting eye
IP10H	0.5	2702174	1.8	0 - 16	44	130	207	40	115	42	28	11	11	2715207
IP10H	0.75	2702162	2.2	0 - 20	45	139	219	40	130	42	38	11	11	2729552
IP10H	1	2702176	7.6	0 - 35	78	201	330	70	188	64	55	16	16	2715216
IP10H	2	2702164	13.8	0 - 40	100	253	434	75	222	78	60	20	20	2715225
IP10H	3	2702166	15.0	0 - 40	100	253	434	75	227	82	65	20	20	2715225
IP10H	4.5	2702168	23.5	0 - 50	126	302	517	80	292	84	95	20	20	2715227
IP10H	6	2702170	27.5	0 - 50	126	325	544	80	310	92	105	25	25	2715229
