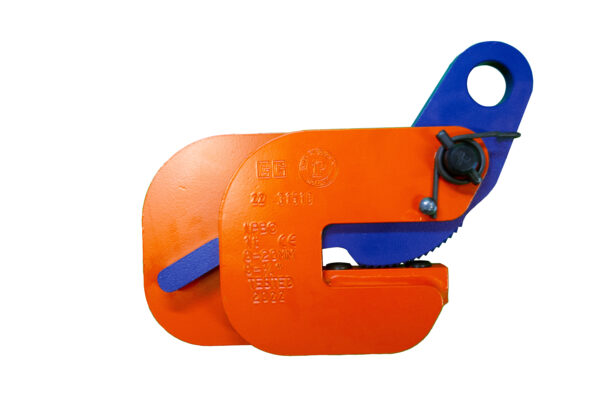

Crosby IP Model IPBC
SKU:
GRRR302
Category:
Lifting Clamps & Magnets
Product details
Available in a wide variety of capacities and jaw openings.
Higher Working Load Limits available upon request.
Welded alloy steel body for strength and smaller size. Forged alloy, components where required.
Equipped with handle for easy placement.
Individually Proof Tested to 2 times the Working Load Limit with certification.
Crosby IP logo, Working Load Limit and jaw opening permanently stamped on body.
Each product is individually serialized, with the serial number and Proof Load test date stamped on body. User manual with test certificate is included with each clamp.
Maintenance and repair kits are available.
Temperature range -40 °F (-40 °C) to +212 °F (+100 °C)
×
Download CAD & PDF Files
First Name
(Required)
Last Name
(Required)
Company
(Required)
Email
(Required)
Phone
(Required)
Job Title
(Required)
Postal Code
(Required)
Comments
This field is for validation purposes and should be left unchanged.
Videos
Model IPBC
Imperial
Metric
Model
Working Load Limit (t)*
Stock No.
Weight Each (lb)

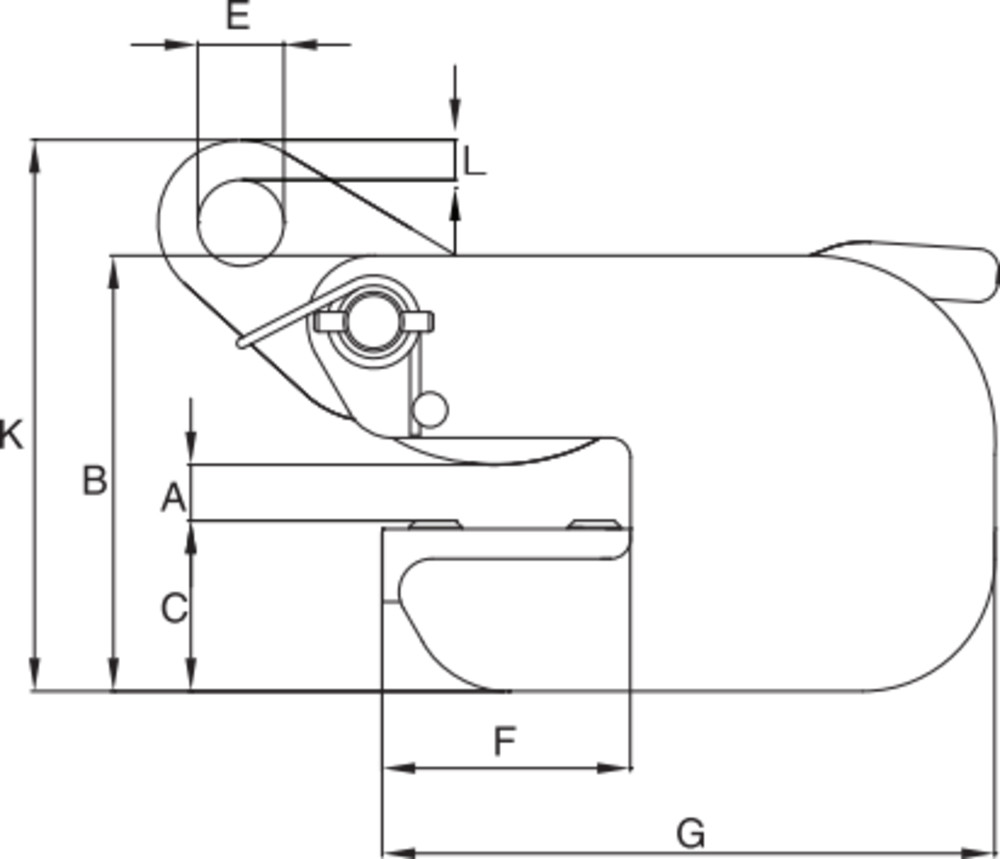

Dimensions (in)
Maintenance Kit Stock No.
Jaw A
B
C
E
F
G
H
J
K
L
IPBC
1
2700410
7.72
0 - 0.81
5.20
2.05
1.02
2.95
7.28
1.42
0.63
7.17
0.47
2715189
IPBC
2
2700411
14.3
0 - 1.00
5.98
2.44
1.18
3.23
8.27
1.93
0.79
8.58
0.59
2715198
IPBC
3
2700412
18.8
0 - 1.00
6.18
2.60
1.18
3.23
8.27
2.24
0.79
8.86
0.59
2715198
Model
Working Load Limit (t)*
Stock No.
Weight Each (kg)
Dimensions (mm)
Maintenance Kit Stock No.
Jaw A
B
C
E
F
G
H
J
K
L
IPBC
1
2700410
3.5
0 - 20
132
52
26
75
185
36
16
182
12
2715189
IPBC
2
2700411
6.5
0 - 25
152
62
30
82
210
49
20
218
15
2715198
IPBC
3
2700412
8.5
0 - 25
157
66
30
82
210
57
20
225
15
2715198
For Horizontal Transfer - with Pretension System.
*Design Factor based on EN 13155 and ASME B30.20.

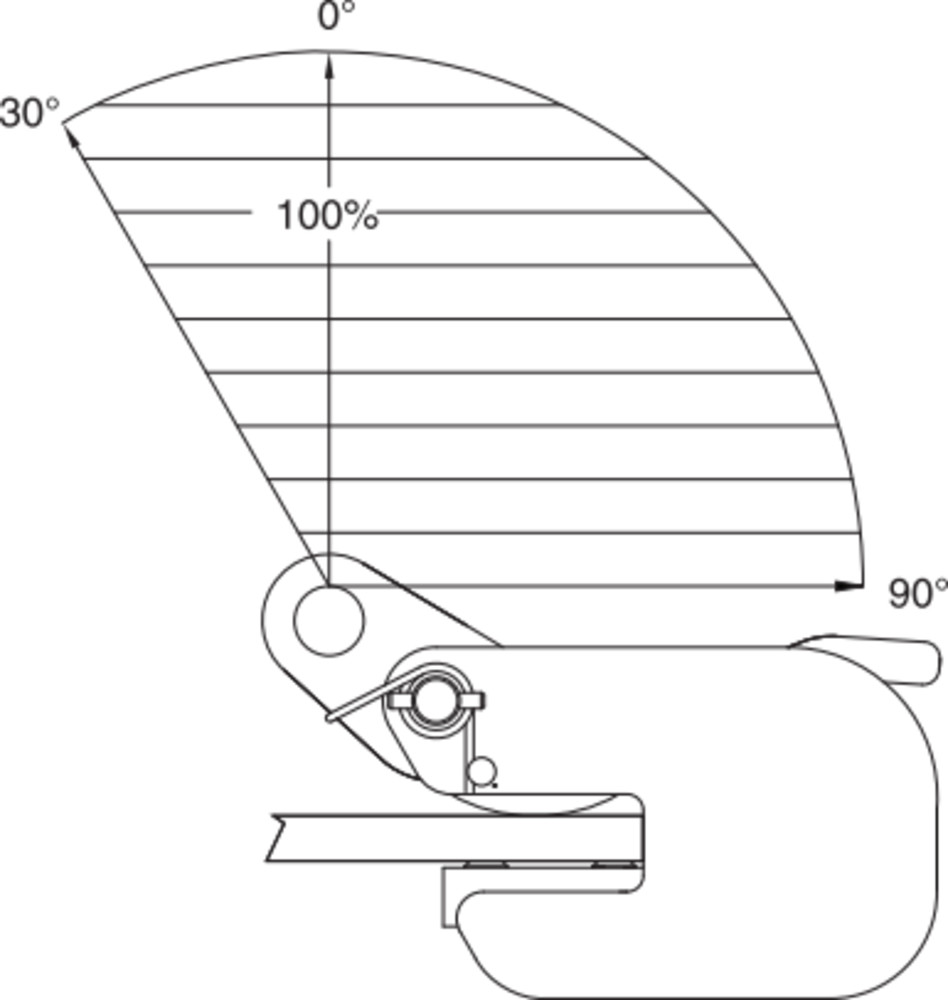

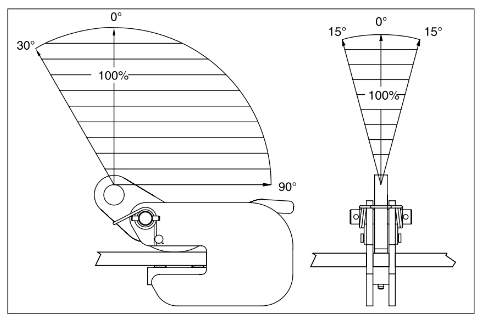

Diagram Images
