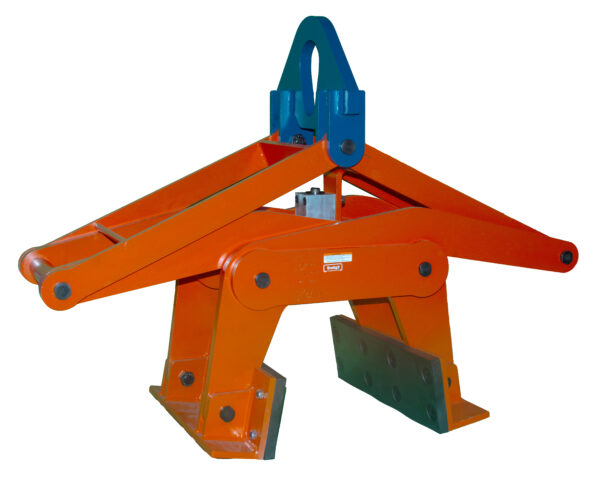

Crosby IP Model IPBG

Product details

Hands-free operation.
Welded alloy steel construction for strength and smaller size.
Comes equipped with polyurethane pads. (Replacement kits are available.)
Individually Proof Tested to 2 times the Working Load Limit with certification.
Crosby IP logo, Working Load Limit and jaw opening permanently stamped on body.
Each product is individually serialized, with the serial number and Proof Load test date stamped on body. User manual with test certificate is included with each clamp.
Temperature range -4 °F (-20 °C) to +158 °F (+70 °C)

Model IPBG

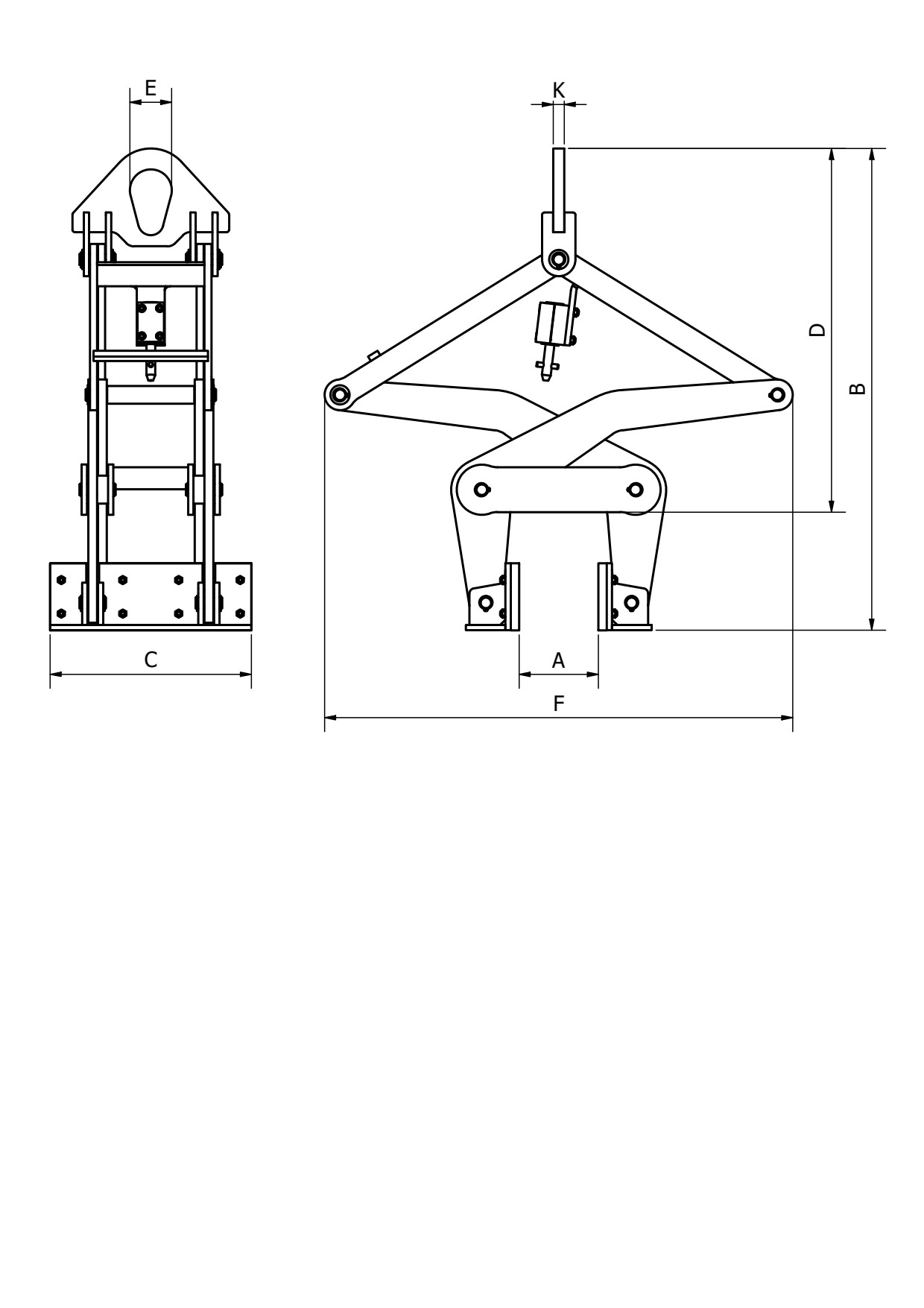

Model	Working Load Limit (t)*	Stock No.	Weight Each (lb)	Dimensions (in)							Maintenance Kit Stock No.
				Jaw A	B	C	D	E	F	K
												IPBG	4	2704018	345	6 - 12	45.3 - 33.9	18.0	34.7 - 23.5	3.74	40.9 - 44.4	1.00	2729615

Model	Working Load Limit (t)*	Stock No.	Weight Each (kg)	Dimensions (mm)							Maintenance Kit Stock No.
				Jaw A	B	C	D	E	F	K
												IPBG	4	2704018	156	152 - 305	1149 - 861	457	882 - 598	95	1038 - 1128	25	2729615

The CrosbyIP Barrier Grab provides a fast and efficient method for handling road barriers.

*Design factor based on EN13155 and ASME B30.20.
