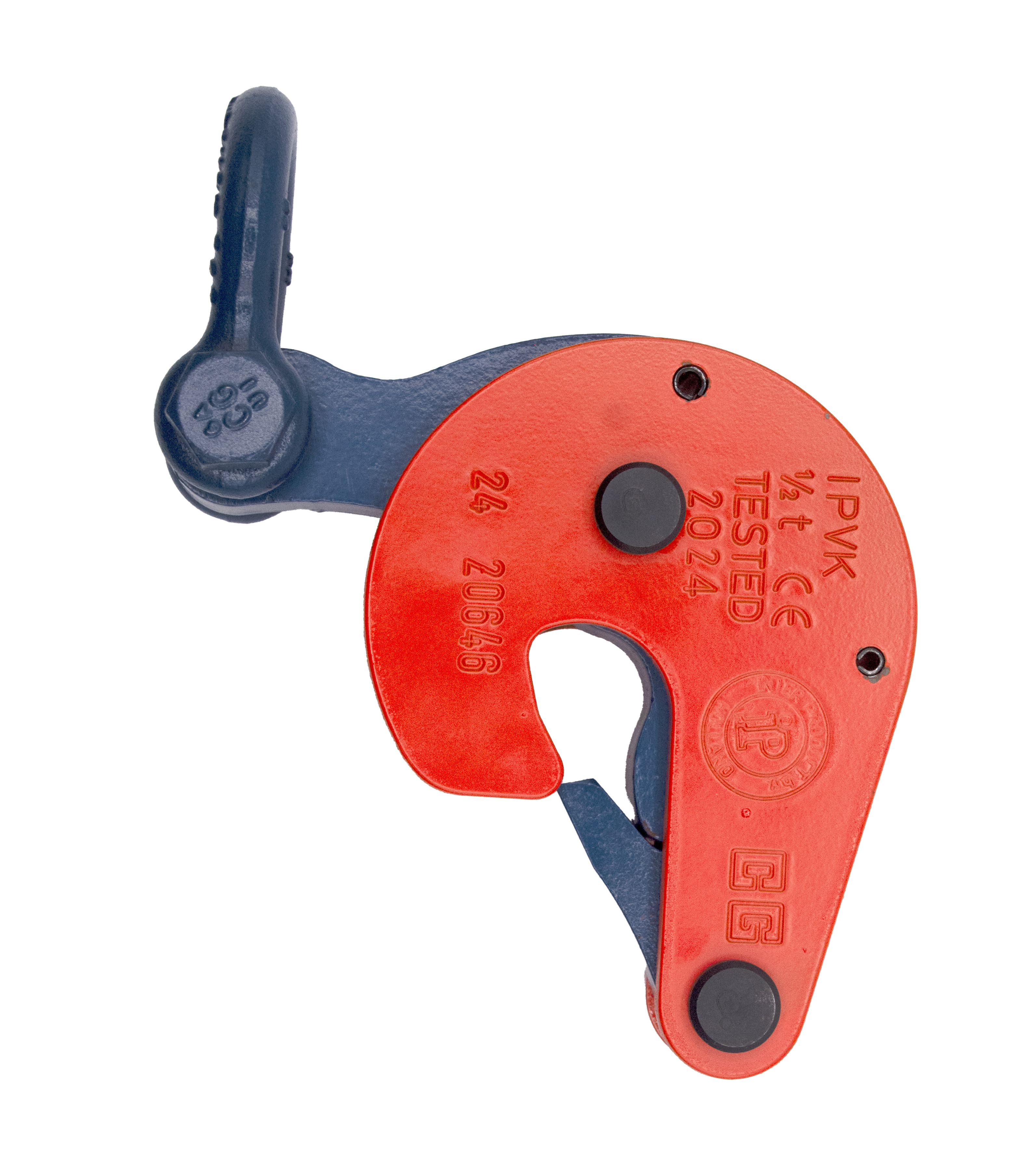

Crosby IP Model IPVK

Product details

Available in a wide variety of capacities and jaw openings.
Higher Working Load Limits available upon request.
Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
Individually Proof Tested to 2 times the Working Load Limit with certification.
Crosby IP logo, Working Load Limit and jaw opening permanently stamped on body.
Each product is individually serialized, with the serial number and Proof Load test date stamped on body. User manual with test certificate is included with each clamp.
Maintenance and repair kits are available.
Manufactured by an ISO 9001 facility.
Temperature range -40 °F (-40 °C) to +212 °F (+100 °C)

Model IPVK

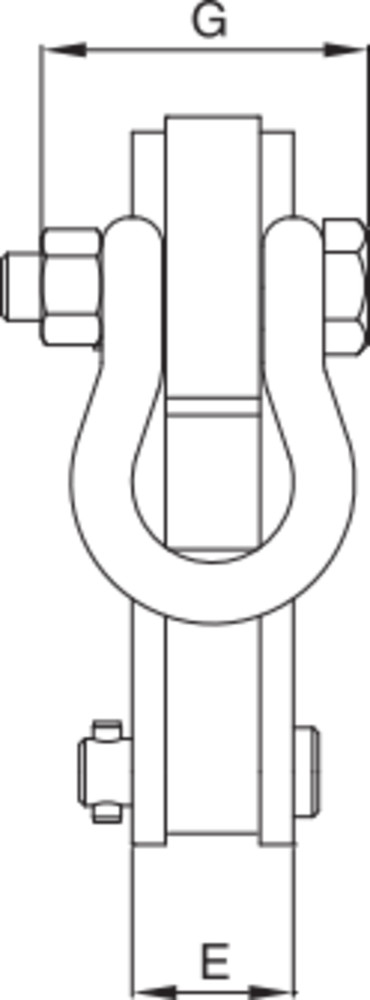

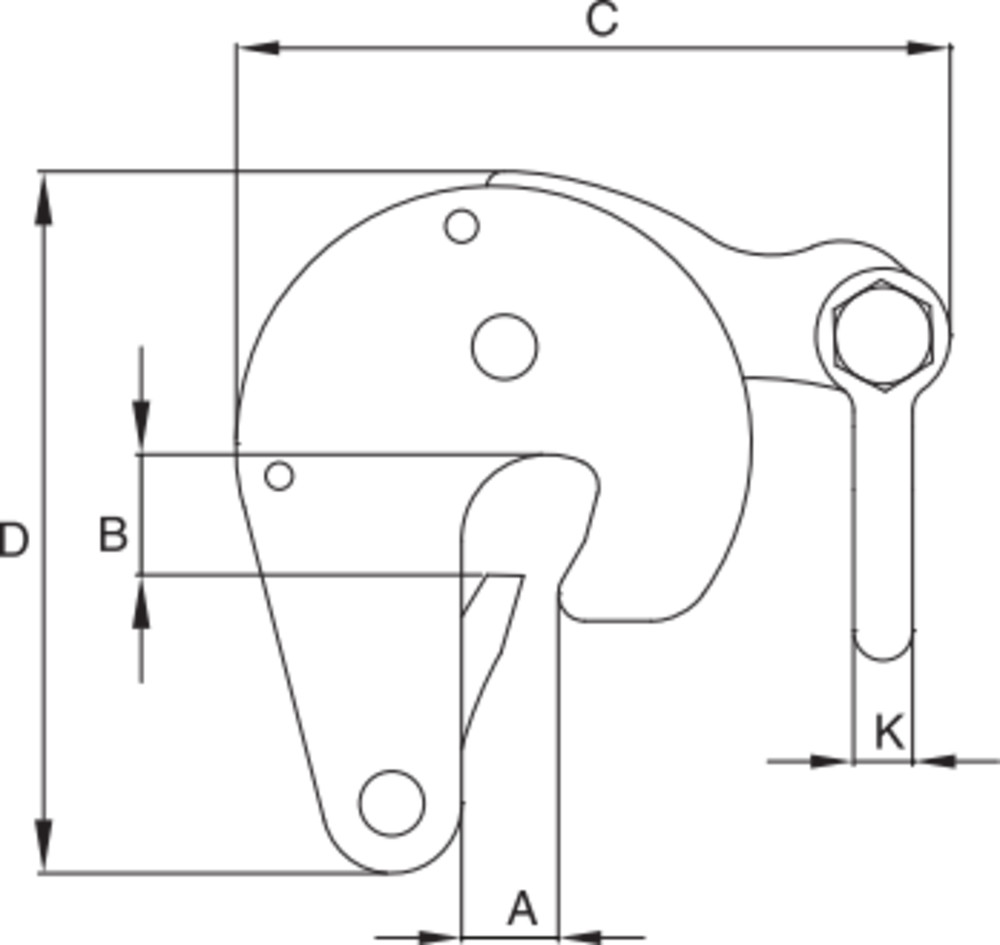

Model	Working Load Limit (t)*	Stock No.	Weight Each (lb)	Dimensions (in)
				Jaw A	B	C	D	E	G	K
											IPVK	0.5	2700116	3.53	0 - 0.63	1.02	5.31	5.20	1.14	2.01	0.43

Model	Working Load Limit (t)*	Stock No.	Weight Each (kg)	Dimensions (mm)
				Jaw A	B	C	D	E	G	K
											IPVK	0.5	2700116	1.6	0 - 17	26	135	132	29	51	11

*Design Factor based on EN 13155 and ASME B30.20.

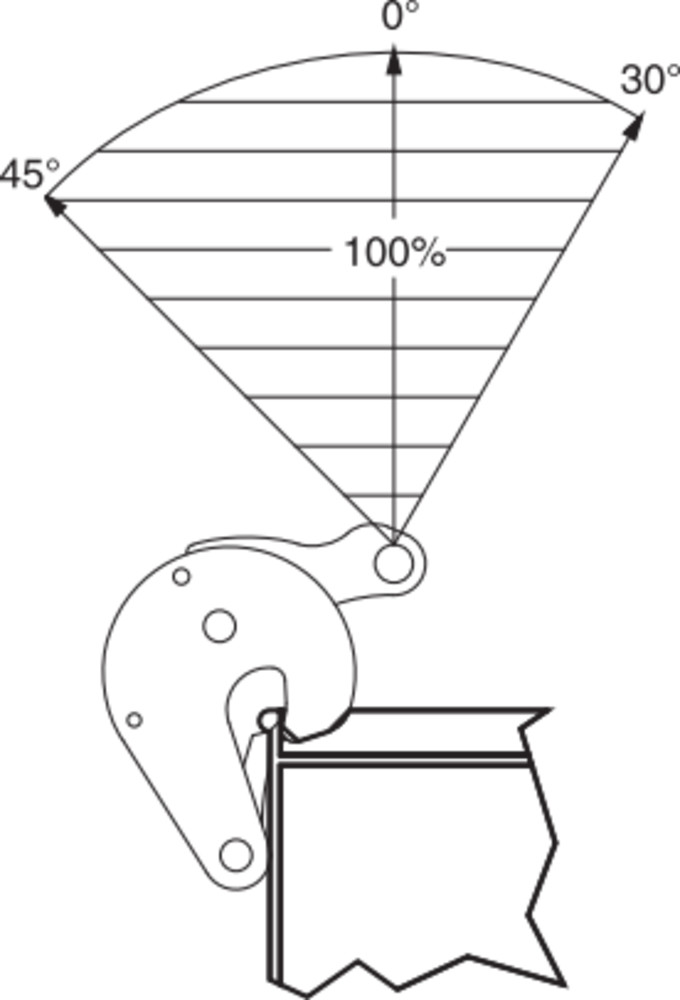

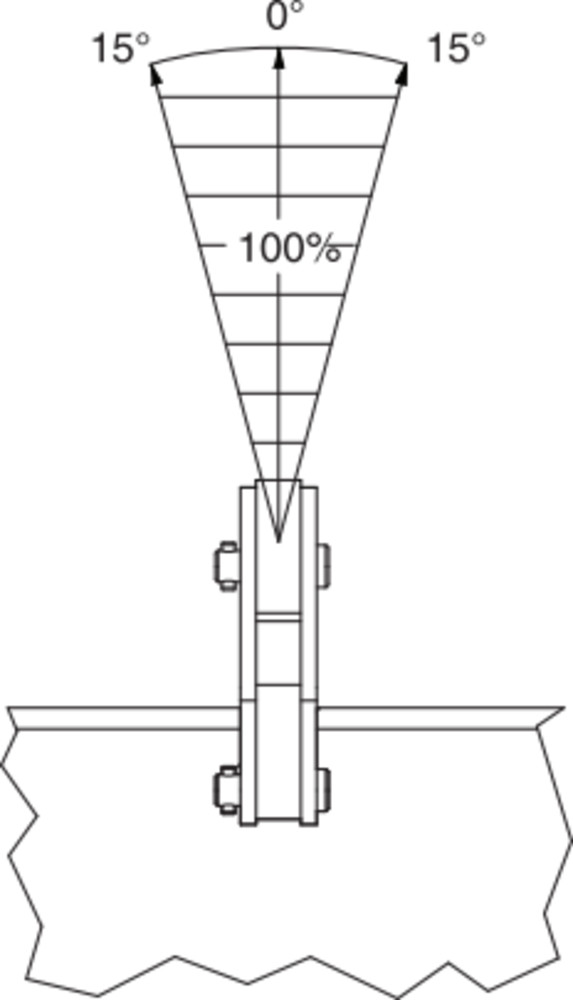

Diagram Images
