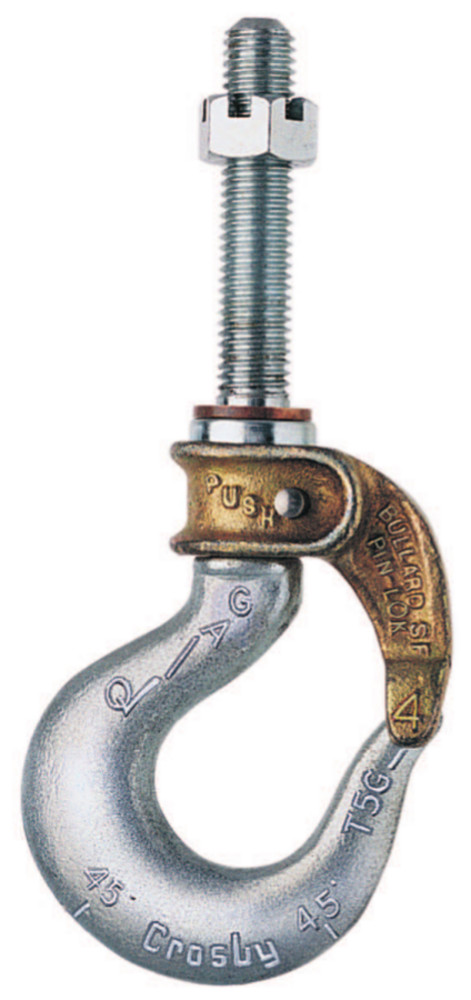

Crosby Long Length Shank Hooks

SKU: GRRR144 Category: Hooks & Swivels

Product details

For use on existing load blocks requiring extra shank length.
- BL-K with self-closing gate
Numbers 4 through 9 style hooks are threaded approximately 80% of shank length.
Crosby Bullard® Hooks incorporate QUIC-CHECK® deformation and angle indicators.

Videos

Long Length Shank Hooks

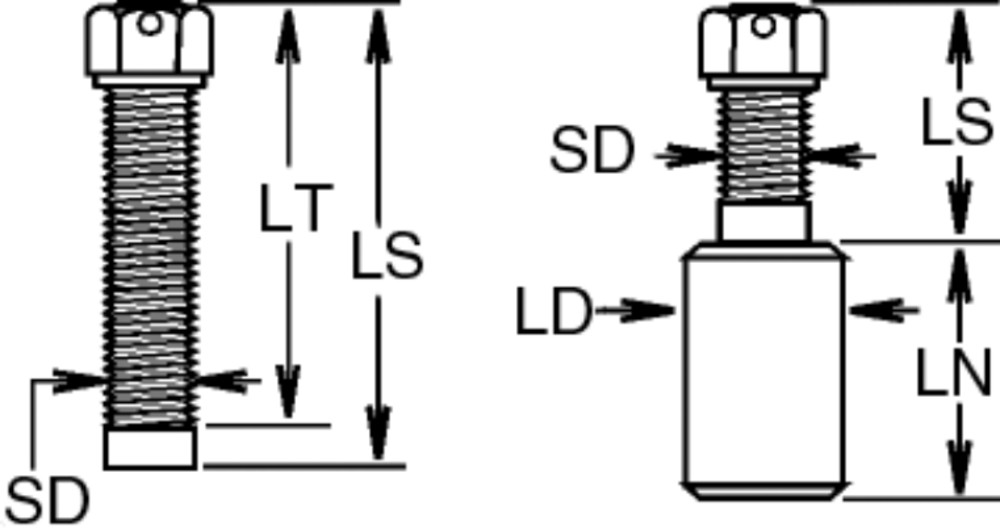

Hook Size	BL-K Stock No.	Gate Type	WLL (short Tons)*	Weight Each (lb)	Dimensions (in)														BL-GA Gate Assemblies	BL-RK Gate Repair Kit	Hook ID Code	AA (in)
					A	B	C	D	E	F	G	H	I	J	SD	LN	LS	LT	Self Close Stock No.	Stock No.
																							4 :1/2	1051002	PIN-LOK	1.45	1.9	4.88	3.63	1.00	.22	1.13	1.50	3.63	1.16	1.00	.75	.50	.44	3.19	3.19	1100353	1100103	G	2.00
																							4 :9/16	1051013	PIN-LOK	1.5	1.9	4.88	3.63	1.00	.22	1.13	1.50	3.63	1.16	1.00	.75	.56	.48	3.19	3.19	1100353	1100103	G	2.00
																							4 :5/8	1051024	PIN-LOK	1.5	1.9	4.88	3.63	1.00	.22	1.13	1.50	3.63	1.16	1.00	.75	.63	.55	3.31	3.19	1100353	1100103	G	2.00
																							5	1051035	ROLLOX	2.1	3.0	5.63	4.12	1.23	.25	1.25	1.64	4.09	1.31	1.12	.84	.75	.63	3.56	3.25	1100375	1100112	H	2.00
																							6	1051046	ROLLOX	3.6	3.8	6.23	4.70	1.25	.25	1.39	1.64	4.56	1.57	1.34	.97	.88	.75	4.06	3.54	1100397	1100113	6	2.50
																							7	1051057	ROLLOX	3.8	5.9	6.61	5.21	1.12	.25	1.50	2.00	4.94	1.63	1.44	1.13	1.00	.88	4.56	4.12	1100419	1100123	I	2.50
																							8	1051068	ROLLOX	5.0	7.8	7.17	5.80	1.06	.28	1.75	2.25	5.84	2.00	1.65	1.23	1.12	.94	5.06	4.50	1100441	1100124	8	3.00
																							9	1051079	ROLLOX	6.5	10.8	7.85	6.45	1.06	.31	1.88	2.50	6.50	2.06	1.81	1.38	1.25	1.06	5.56	4.94	100463	1100125	J	4.00
																							12 ‡	1051101	TIP-LOK	11.2	28.0	10.53	8.84	1.25	.38	2.50	3.25	8.69	2.94	2.59	1.94	1.63	1.56	5.38	4.63	1100529	1100155	L	4.50
																							13 ‡	1051112	TIP-LOK	13.6	35.0	11.23	9.54	1.25	.38	3.00	3.75	9.63	3.28	2.75	1.94	1.75	1.50	7.37	5.75	1100551	1100166	13	5.00
																							14 ‡	1051123	TIP-LOK	16.8	45.0	12.60	10.75	1.41	.38	3.38	4.25	11.00	3.50	2.97	2.38	2.00	2.00	5.38	4.00	1100573	1100177	N	5.00
																							16	1051134	TIP-LOK	30.0	103.0	15.29	13.10	1.50	.63	4.00	5.00	13.62	4.63	3.63	3.00	2.75	2.75	16.00	7.00	1100617	1100199	O	6.50
																							17	1051156	TIP-LOK	60.0	370.0	24.20	20.57	2.63	.94	5.75	7.00	18.50	6.50	6.00	4.44	4.00	3.94	22.75	14.00	1100628	1100210	T	10.00

Hook Size	BL-K Stock No.	Gate Type	Working Load Limit (t)	Weight Each (kg)	Dimensions (mm)														BL-GA Gate Assemblies	BL-RK Gate Repair Kit	Hook ID Code	AA (mm)
					A	B	C	D	E	F	G	H	I	J	SD	LN	LS	LT	Self Close Stock No.	Stock No.
																							4 :1/2	1051002	PIN-LOK	1.45	.86	124	92.2	25.4	5.58	28.7	38.1	92.0	29.5	25.4	19.1	12.7	11.2	81.0	81.0	1100353	1100103	G	50.8
																							4 :9/16	1051013	PIN-LOK	1.5	.86	124	92.2	25.4	5.58	28.7	38.1	92.0	29.5	25.4	19.1	14.2	12.2	81.0	81.0	1100353	1100103	G	50.8
																							4 :5/8	1051024	PIN-LOK	1.5	.86	124	92.2	25.4	5.58	28.7	38.1	92.0	29.5	25.4	19.1	16.0	14.0	84.0	81.0	1100353	1100103	G	50.8
																							5	1051035	ROLLOX	2.1	1.36	143	105	31.2	6.35	31.8	41.7	104	33.3	28.4	21.3	19.1	16.0	90.5	82.5	1100375	1100112	H	50.8
																							6	1051046	ROLLOX	3.6	1.72	158	119	31.8	6.35	35.3	41.7	116	39.9	34.0	24.6	22.4	19.1	103	90.0	1100397	1100113	6	63.5
																							7	1051057	ROLLOX	3.8	2.68	168	132	28.4	6.35	38.1	51.0	125	41.4	36.6	28.7	25.4	22.4	116	105	1100419	1100123	I	63.5
																							8	1051068	ROLLOX	5.0	3.54	182	147	26.9	7.11	44.5	57.0	148	51.0	41.9	31.2	28.4	23.9	129	114	1100441	1100124	8	76.2
																							9	1051079	ROLLOX	6.5	4.90	199	164	26.9	7.87	47.8	63.5	165	52.5	46.0	35.1	31.8	26.9	141	125	100463	1100125	J	101.6
																							12 ‡	1051101	TIP-LOK	11.2	12.7	267	225	31.8	9.65	63.5	82.5	221	74.5	65.5	49.3	41.4	39.6	137	118	1100529	1100155	L	101.6
																							13 ‡	1051112	TIP-LOK	13.6	15.9	285	242	31.8	9.65	76.0	95.5	245	83.5	70.0	49.3	44.5	38.1	187	146	1100551	1100166	13	127.0
																							14 ‡	1051123	TIP-LOK	16.8	20.4	320	273	35.8	9.65	86.0	108	279	89.0	75.5	60.5	51.0	50.8	137	102	1100573	1100177	N	127.0
																							16	1051134	TIP-LOK	30.0	46.7	388	332	38.1	16.0	102	127	346	118	92.0	76.0	70.0	70.0	406	178	1100617	1100199	O	165.1
																							17	1051156	TIP-LOK	60.0	168	615	522	66.8	23.9	146	178	470	165	152	113	102	100	578	356	1100628	1100210	T	254.0

4:1 Design Factor.

‡Hook will have the shank extended by use of a Coupling Nut. Customer is required to complete and approve side 2 of a Crosby Bullard® hook data form.
