Crosby S-1325A Grade 100 Chain Coupler

SKU: GRRR239 Category:

Product details

  • Forged alloy steel — Quenched & Tempered.
  • Designed to connect Grade 100 chain fittings produced with engineered flat to Grade 100 chain.
  • Suitable for use with Grade 100 and Grade 80 chain.
  • Individually Proof Tested to 2-1/2 times the Working Load Limit with certification.
  • Locking system that provides for simple assembly and disassembly – no special tools required.
  • Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit.

Videos

S-1325A Grade 100 Chain Coupler

Chain SizeStock No.Working Load Limit (lb)Weight Each (lb)Dimensions (in)
(in)(mm)CFG
-6
1098496		3200.251.03.741.74
1/47
1098500		4300.501.41.882.32
5/168
1098504		5700.501.40.882.32
3/810
1098508		8800.801.841.182.72
1/213
1098512		150001.702.121.503.62
5/816
1098516		226001.902.841.964.40
Chain SizeStock No.Working Load Limit (t)Weight Each (kg)Dimensions (mm)
(in)(mm)CFG
-6
1098496		1.5.1126.219.344.7
1/47
1098500		2.2335.822.459.0
5/168
1098504		2.5.2335.622.459.0
3/810
1098508		4.3446.730.069.0
1/213
1098512		6.8.7555.638.194.5
5/816
1098516		10.3.8671.449.8112

4:1 Design Factor.

Diagram Images

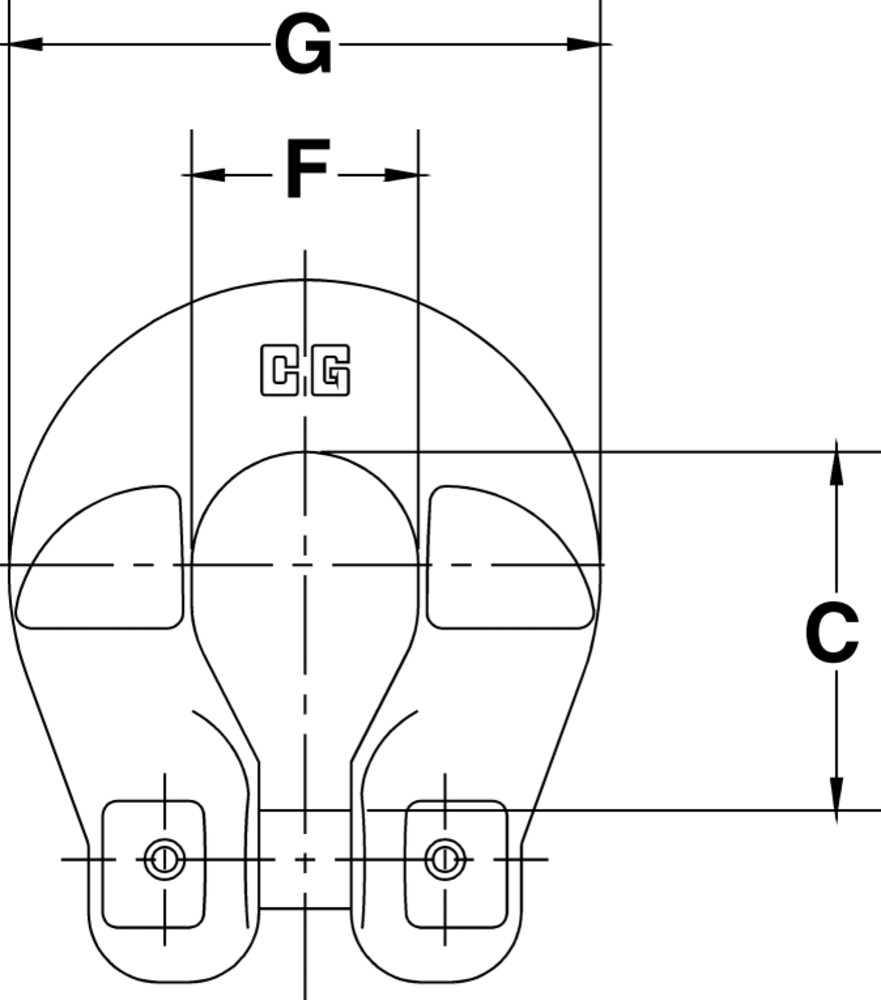

Diagram 1
