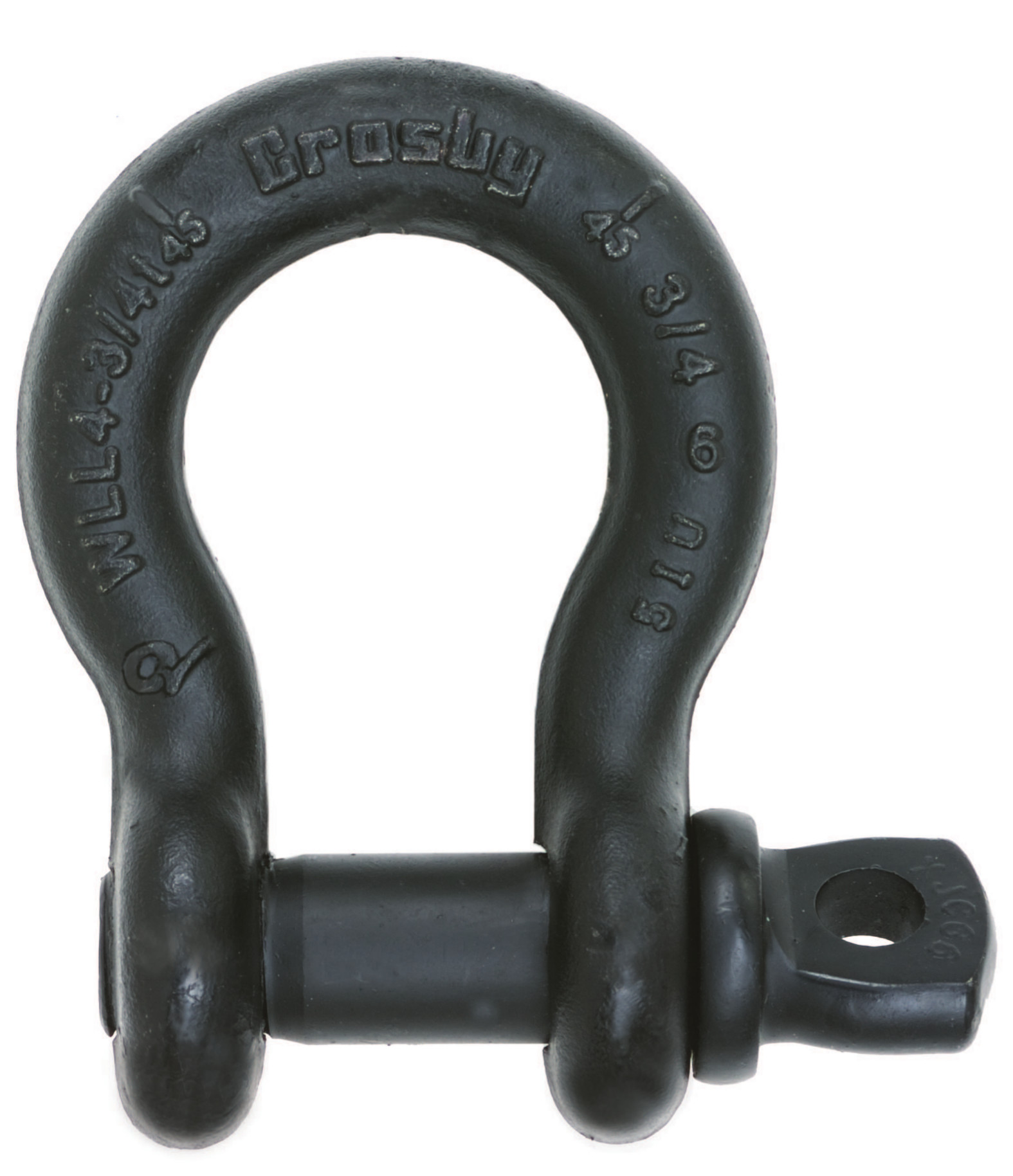

Crosby S-209T Theatrical Shackles
SKU:
GRRR401
Category:
Shackles
Product details
Flat black baked on powder coat finish.
Forged, Quenched & Tempered, with alloy pins.
Working Load Limit and Grade 6 permanently shown on every shackle.
Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit.
Industry leading 6 to 1 Design Factor.
Screw pin anchor shackles meet the performance requirement of Federal Specification RR-C-271H, Type IVA, Grade A, Class 2, except for those provisions required of the contractor.
Meets the performance requirements of EN 13889.
Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these shackles meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.
×
Download CAD & PDF Files
First Name
(Required)
Last Name
(Required)
Company
(Required)
Email
(Required)
Phone
(Required)
Job Title
(Required)
Postal Code
(Required)
Phone
This field is for validation purposes and should be left unchanged.
Videos
S-209T Theatrical Shackles
Imperial
Metric
Size
Stock No.
Weight Each (lb)
Dimensions (in)
Nominal Size (in.)
WLL (t) Carbon
A
A Tol +/-
B
C
C Tol. +/-
D
E
F
G
H
L
M
P
3/8
1
1018706
.31
.66
.06
.44
1.45
.13
.38
1.03
.92
1.79
2.50
.25
2.06
.38
7/16
1 1/2
1018724
.38
.75
.06
.50
1.69
.13
.44
1.16
1.06
2.04
2.91
.31
2.37
.44
1/2
2
1018742
.72
.81
.06
.63
1.88
.13
.50
1.31
1.18
2.31
3.28
.38
2.69
.50
5/8
3 1/4
1018760
1.37
1.06
.06
.75
2.38
.13
.62
1.69
1.50
2.93
4.19
.44
3.34
.69
3/4
4 3/4
1018778
2.35
1.25
.06
.88
2.81
.25
.75
2.00
1.81
3.50
4.97
.50
3.97
.81
Size
Stock No.
Weight Each (kg)
Dimensions (mm)
Nominal Size (in.)
WLL (t) Carbon
A
A Tol +/-
B
C
C Tol. +/-
D
E
F
G
H
L
M
P
3/8
1
1018706
.14
17
1.5
11
37
3.3
10
26
23
46
64
6
52
10
7/16
1 1/2
1018724
.17
19
1.5
13
43
3.3
11
30
27
52
74
8
60
11
1/2
2
1018742
.33
21
1.5
16
48
3.3
13
33
30
59
83
10
68
13
5/8
3 1/4
1018760
.62
27
1.5
19
60
6.4
16
43
38
74
106
11
85
18
3/4
4 3/4
1018778
1.07
32
1.5
22
71
6.4
19
51
46
89
126
13
101
21
Maximum Proof Load is 2.0 times the Working Load Limit.
