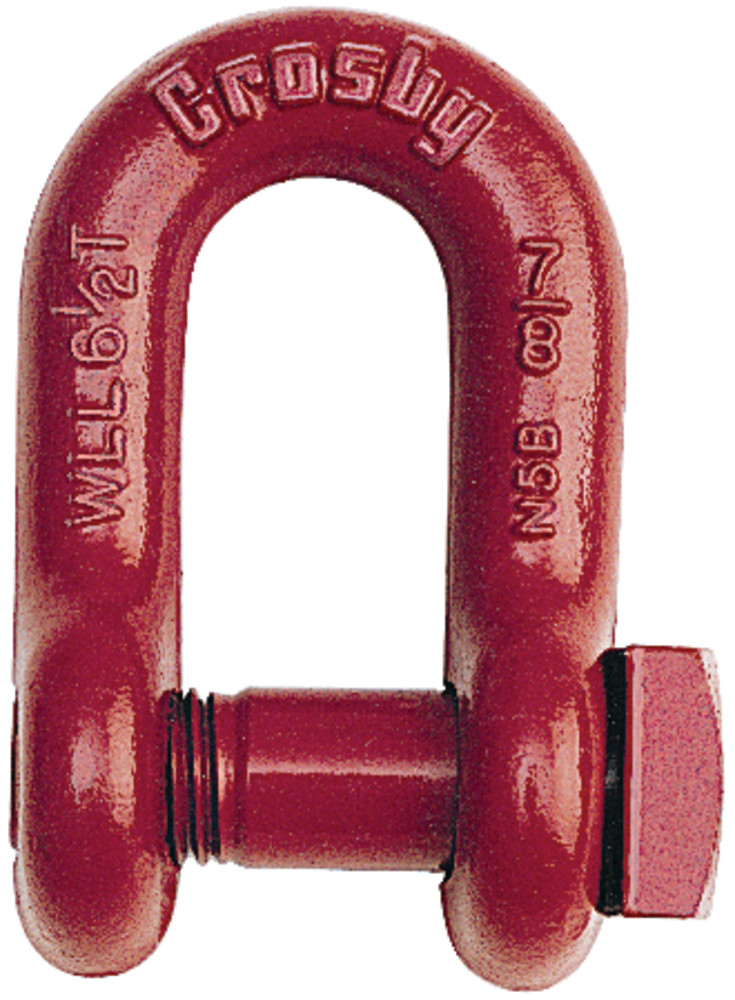

S-2131 Trawling Shackles

Size		Stock No.	Weight Each (lb)	Dimensions (in)
Nominal Size (in.)	WLL (t)			A	A Tol +/-	B	C	D	E	F	G	G Tol. +/-	K	M
															1/2	2	1018703	.75	.81	.06	.63	.50	.50	1.81	1.19	1.63	.13	3.09	2.22
															5/8	3.25	1018721	1.24	1.06	.06	.75	.63	.63	2.31	1.56	2.00	.13	3.78	2.75
															3/4	4.75	1018749	2.18	1.25	.06	.88	.81	.75	2.75	1.88	2.38	.25	4.50	3.25
															7/8	6.5	1018767	3.28	1.44	.06	1.00	.97	.88	3.19	2.13	2.81	.25	5.25	3.69

Size		Stock No.	Weight Each (kg)	Dimensions (mm)
Nominal Size (in.)	WLL (t)			A	A Tol +/-	B	C	D	E	F	G	G Tol. +/-	K	M
															1/2	2	1018703	.34	20.6	1.50	16.0	12.7	12.7	46.0	30.2	41.4	3.30	77	56.5
															5/8	3.25	1018721	.56	27.0	1.50	19.1	16.0	16.0	58.5	38.1	51.0	3.30	96.0	70.0
															3/4	4.75	1018749	.99	31.8	1.50	22.4	20.6	19.1	70.0	46	60.5	6.35	115	82.5
															7/8	6.5	1018767	1.49	36.6	1.50	25.4	24.6	22.4	81.0	54.0	71.5	6.35	135	93.5

4:1 Design Factor.

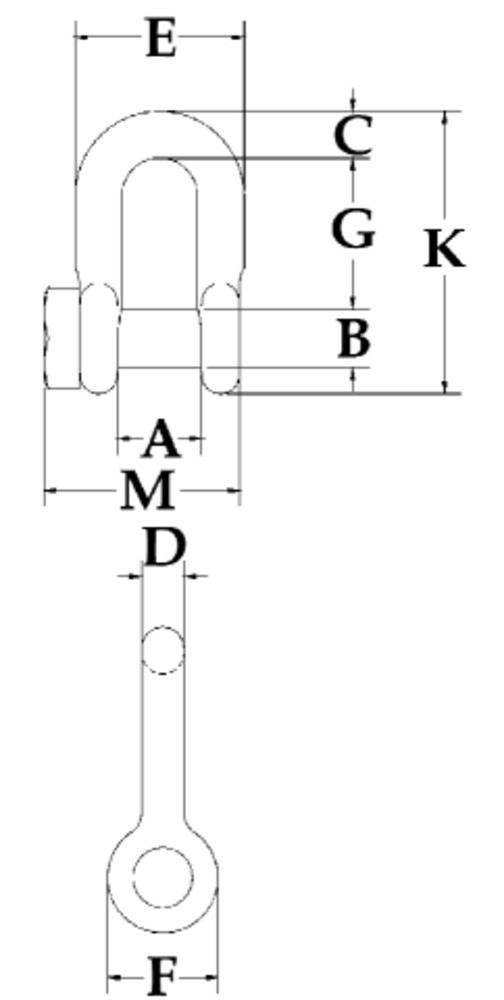

Diagram Images
