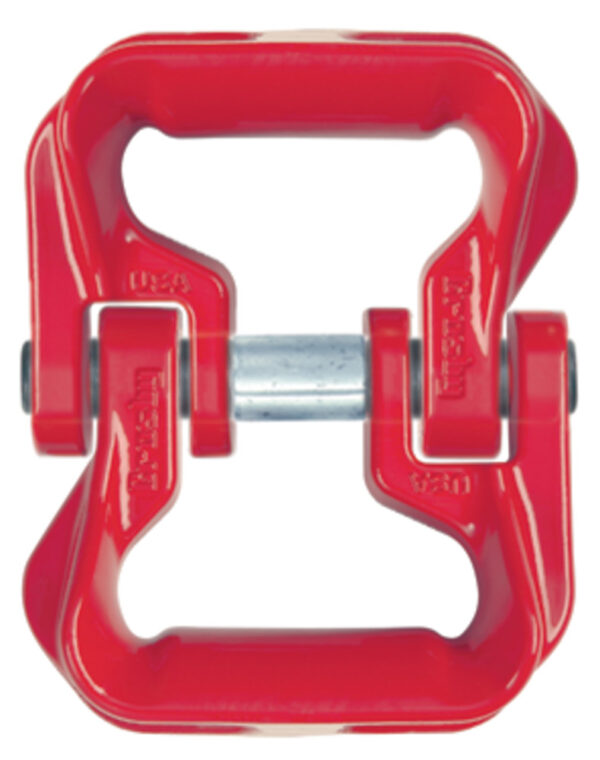

Crosby S-238 High Performance Sling Connector
Crosby S-238 High Performance Sling Connector - Image 2

Crosby S-238 High Performance Sling Connector

SKU: GRRR271 Category:

Product details

  • High Performance Sling Connector is designed to connect to slings of all materials.
  • Allows easy connection to master links or eye hooks and is ideal for bridles.
  • Increased radius of bow gives wider sling bearing surface resulting in an increased area for load distribution, allows better load distribution on internal fibers.
    • Increases synthetic sling efficiency as compared to master links, shackle bows and conventional eye hooks. This allows 100% of the sling's rated Working Load Limit to be achieved.
  • All alloy construction
  • Design Factor of 5:1
  • Each connector has a Product Identification Code (PIC) for material traceability, along with a frame size and the name Crosby, forged into it.
  • Crosby Sling Saver hardware meets the requirements for minimum stock diameter or thickness, and effective contact width shown in the Recommended Standards Specification for Synthetic Polyester Round Slings by the Web Sling & Tie Down Association. WSTDA-RS1.

Videos

S-238 High Performance Sling Connector

Working Load Limit (lb)Stock No.Frame No.Nominal Sling Body Width (in)Weight Each (lb)Dimensions (in)
ABCEGHKMW
5000
1020415		521.6.881.422.003.181.00.804.903.301.38
10000
1020423		1033.31.421.522.754.131.25.985.723.761.75
Working Load Limit (kg)Stock No.Frame No.Nominal Sling Body Width (mm)Weight Each (kg)Dimensions (mm)
ABCEGHKMW
2268
1020415		550.8.7322.436.150.880.825.420.312483.835.1
4536
1020423		1076.21.5036.138.669.910531.824.914595.544.5

Design factor of 5:1. Maximum Proof Load is 2.5 times the Working Load Limit.

Diagram Images

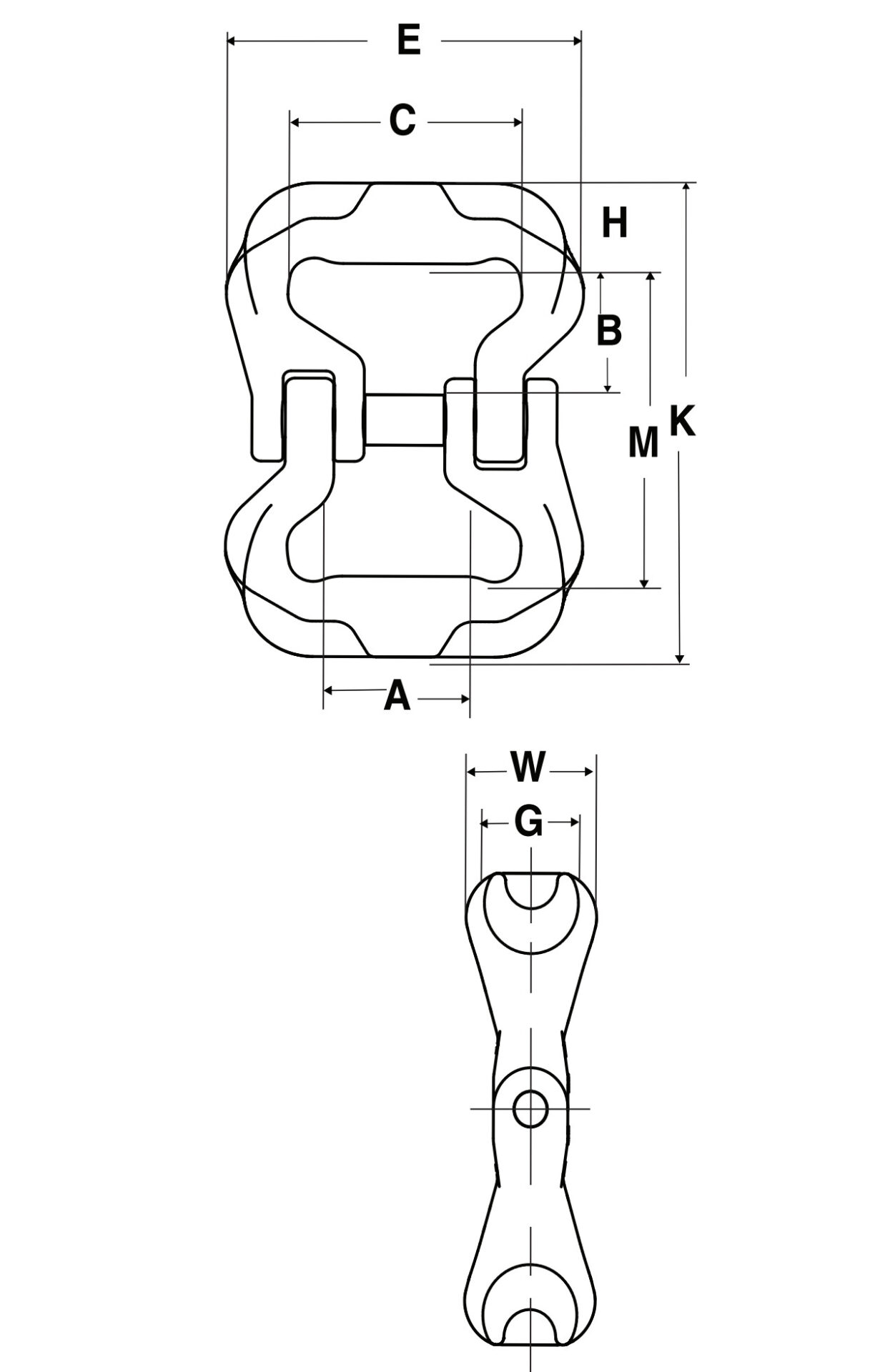

Diagram 1
