Crosby S-315A Eye Chain Hook with Integrated Latch
Crosby S-315A Eye Chain Hook with Integrated Latch - Image 2

Crosby S-315A Eye Chain Hook with Integrated Latch

SKU: GRRRR26 Category:

Product details

  • Forged alloy steel - Quenched & Tempered.
  • Individually Proof Tested at 2-1/2 times the Working Load Limit with certification.
  • Crosby recommends grinding the WLL (which is 5:1 Design Factor) off the hook when using with Grade 80 chain.
  • Integrated heavy duty latch.
  • Engineered flat for use with S-1325A Coupler Link.
  • Meets ASTM A-952 for Grade 80 chain fittings.
  • Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit.

Videos

S-315A Eye Chain Hook with Integrated Latch

Chain SizeStock No.Grade 80 Alloy Chain Working Load Limit (lb)Working Load Limit for Wire Rope (short Tons)Weight Each (lb)Dimensions (in)Replacement Latch Stock No.
(in)(mm)BDEGKRT
-6
1029820		2500.56.792.60.81.79.633.331.021291332
1/4 - 5/167 - 8
1029825		45001.311.103.501.081.10.814.621.281291402
3/810
1029830		71002.601.424.351.421.16.946.201.661291472
1/213
1029835		120004.701.815.451.521.671.167.331.941291542
5/816
1029840		181008.552.206.561.912.051.508.942.321291612
Chain SizeStock No.Grade 8 Alloy Chain Working Load Limit (t)Working Load Limit for Wire Rope (short Tons)Weight Each (kg)Dimensions (mm)Replacement Latch Stock No.
(in)(mm)BDEGKRT
-6
1029820		1.12.2520.166.020.620.116.084.525.91291332
1/4 - 5/167 - 8
1029825		2.5927.989.027.427.920.611732.51291402
3/810
1029830		3.151.1836.111036.129.523.915742.21291472
1/213
1029835		5.32.1346.013838.642.429.518649.31291542
5/816
1029840		83.8856.016748.552.038.122759.01291612

4:1 Design Factor for Grade 80 Alloy Chain, 5:1 Design Factor for wire rope.

Diagram Images

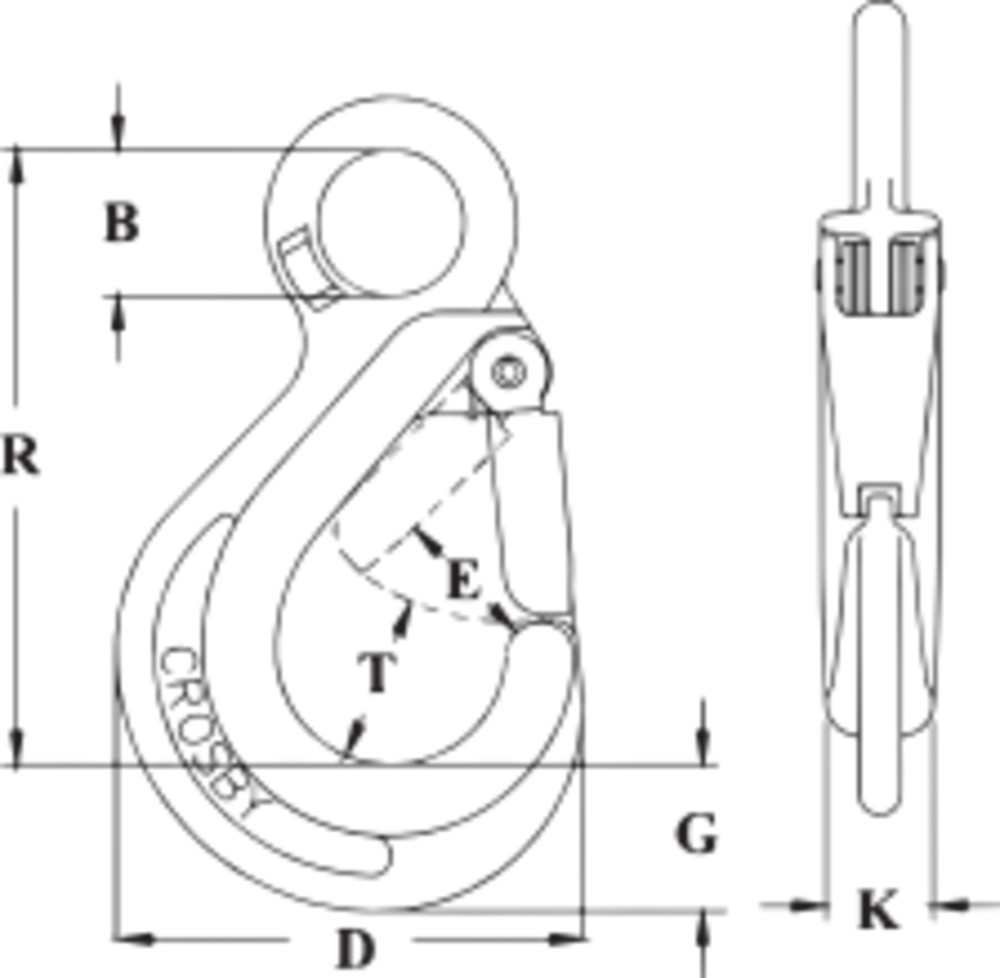

Diagram 1
