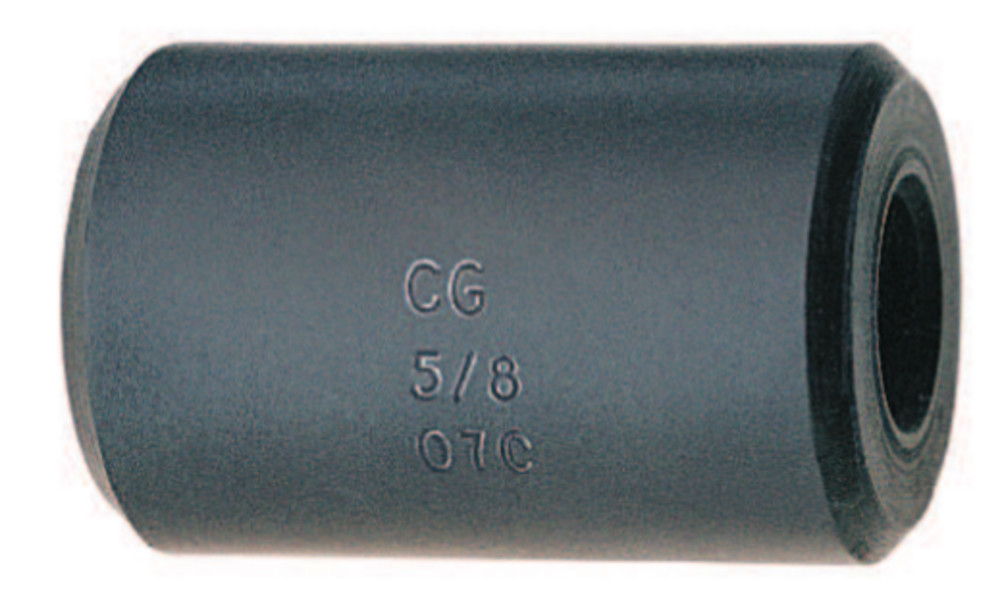

Crosby S-409 COLD TUFF® Buttons

SKU: GRRRR20 Category: Clips & Wire Rope Fittings

Product details

Swage Button terminations have an efficiency rating of 98% based on the catalog strength of wire rope.
Special processed, low carbon steel.
COLD TUFF® for better swageability.
Stamp for identification after swaging without concern for fractures (as per directions in the Wire Rope End Terminations User’s Manual).
S-409 Buttons are recommended for use with 6 x 19 or 6 x 37, IPS or XIP (EIP), RRL, FC or IWRC wire rope. Before using any National Swage fitting with any other type lay, construction or grade of wire rope, it is recommended that the termination be destructive tested and documented to prove the adequacy of the assembly to be manufactured.

S-409 Steel Swage Button Specifications										Swager / Die Data

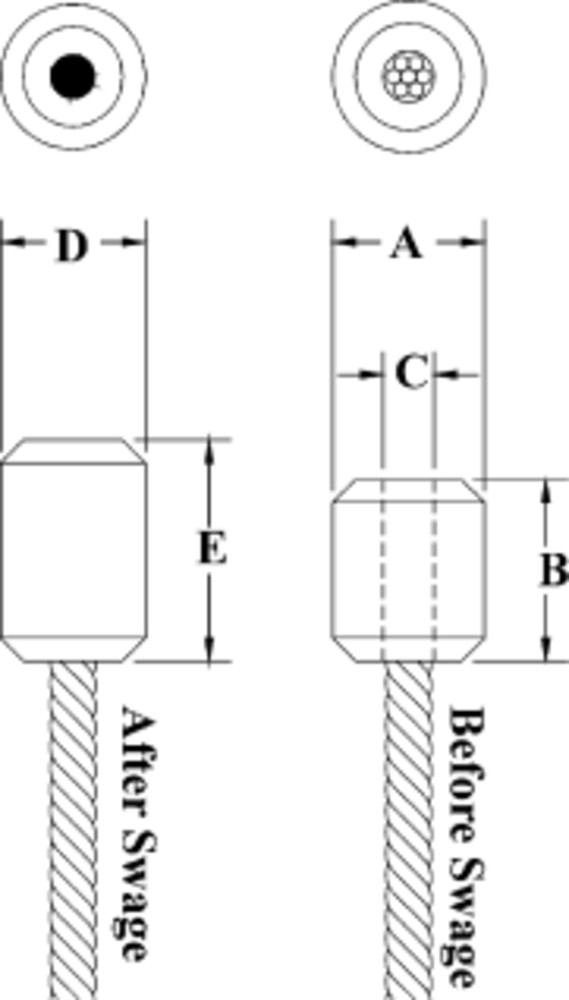

S-409 Stock No.	Size No.	Rope Size		Weight Per 100 (lb)	Before Swage Dimensions (in)			After Swage Dimensions (in)		Die Description	Stock No. 500 Tons 1000 Tons 1500 Tons 5 x 7
		(in)	(mm)		A	B	C	D Maximum After Swage Dimensions	E Length*
												1040171	1 SB	1/8	3	2	.42	.50	.14	.40	.61	1/8 - 1/4 Button	1191621
												1040215	3 SB	3/16	5	4	.56	.70	.20	.52	.84	1/4 1st Stage	1197528
												1040251	5 SB	1/4	6-7	8	.68	1.06	.31	.58	1.41	1/8 - 1/4 Button	1191621
												1040297	7 SB	5/16	8	16	.88	1.13	.36	.77	1.33	3/8 1st Stage	1192364
												1040313	8 SB	3/8	9-10	15	.88	1.48	.42	.77	1.69	3/8 1st stage	1192364
												1040331	9 SB	7/16	11	30	1.13	1.63	.48	1.03	1.94	1/2 1st Stage	1192408
												1040359	10 SB	1/2	13	50	1.31	1.89	.55	1.16	2.17	5/8 Socket	1192907
												1040377	11 SB	9/16	14	70	1.44	2.02	.61	1.29	2.41	9/16 -5/8 Button	1191665
												1040395	12 SB	5/8	16	100	1.56	2.42	.67	1.42	2.89	3/4 Socket	1192925
												1040411	13 SB	3/4	18-20	131	1.68	2.74	.80	1.55	3.25	3/4 1st Stage	1192462
												1040439	14 SB	7/8	22	220	2	3.27	.94	1.80	3.86	7/8 1st Stage	1192480
												1040457	15 SB	1	25-26	310	2.25	3.67	1.06	2.05	4.36	1 1st Stage	1192505
												1040475	16 SB	1-1/8	28-29	450	2.56	4.05	1.19	2.30	4.81	1-1/8 1st Stage	1192523
1040493	17 SB			1-1/4						31-32	650	2.81	4.57	1.33	2.56	5.42	1-3/8 Socket	1193023

S-409 Steel Swage Button Specifications										Swager / Die Data
S-409 Stock No.	Size No.	Rope Size		Weight Per 100 (kg)	Before Swage Dimensions (mm)			After Swage Dimensions (mm)		Die Description	Stock No. 500 Tons 1000 Tons 1500 Tons 5 x 7
		(in)	(mm)		A	B	C	D Maximum After Swage Dimensions	E Length*
												1040171	1 SB	1/8	3	.91	10.7	12.7	3.56	10.2	15.5	1/8 - 1/4 Button	1191621
												1040215	3 SB	3/16	5	1.81	14.2	17.8	5.08	13.2	21.3	1/4 1st Stage	1197528
												1040251	5 SB	1/4	6-7	3.63	17.3	26.9	7.87	14.7	33.5	1/8 - 1/4 Button	1191621
												1040297	7 SB	5/16	8	7.26	22.4	28.7	9.14	19.6	33.8	3/8 1st Stage	1192364
												1040313	8 SB	3/8	9-10	6.80	22.4	37.6	10.7	19.6	42.9	3/8 1st stage	1192364
												1040331	9 SB	7/16	11	13.6	28.7	41.4	12.2	26.2	49.3	1/2 1st Stage	1192408
												1040359	10 SB	1/2	13	22.7	33.3	48.0	14.0	29.5	55.1	5/8 Socket	1192907
												1040377	11 SB	9/16	14	31.8	36.6	51.3	15.5	32.8	61.2	9/16 -5/8 Button	1191665
												1040395	12 SB	5/8	16	45.4	39.6	61.5	17.0	36.1	73.4	3/4 Socket	1192925
												1040411	13 SB	3/4	18-20	59	42.7	69.6	20.3	39.6	82.6	3/4 1st Stage	1192462
												1040439	14 SB	7/8	22	100	50.8	83.1	23.9	45.7	98.0	7/8 1st Stage	1192480
												1040457	15 SB	1	25-26	141	57.2	93.2	26.9	52.1	111	1 1st Stage	1192505
												1040475	16 SB	1-1/8	28-29	204	65.0	103	30.2	58.4	122	1-1/8 1st Stage	1192523
1040493	17 SB			1-1/4						31-32	295	71.4	116	33.8	65.0	138	1-3/8 Socket	1193023
