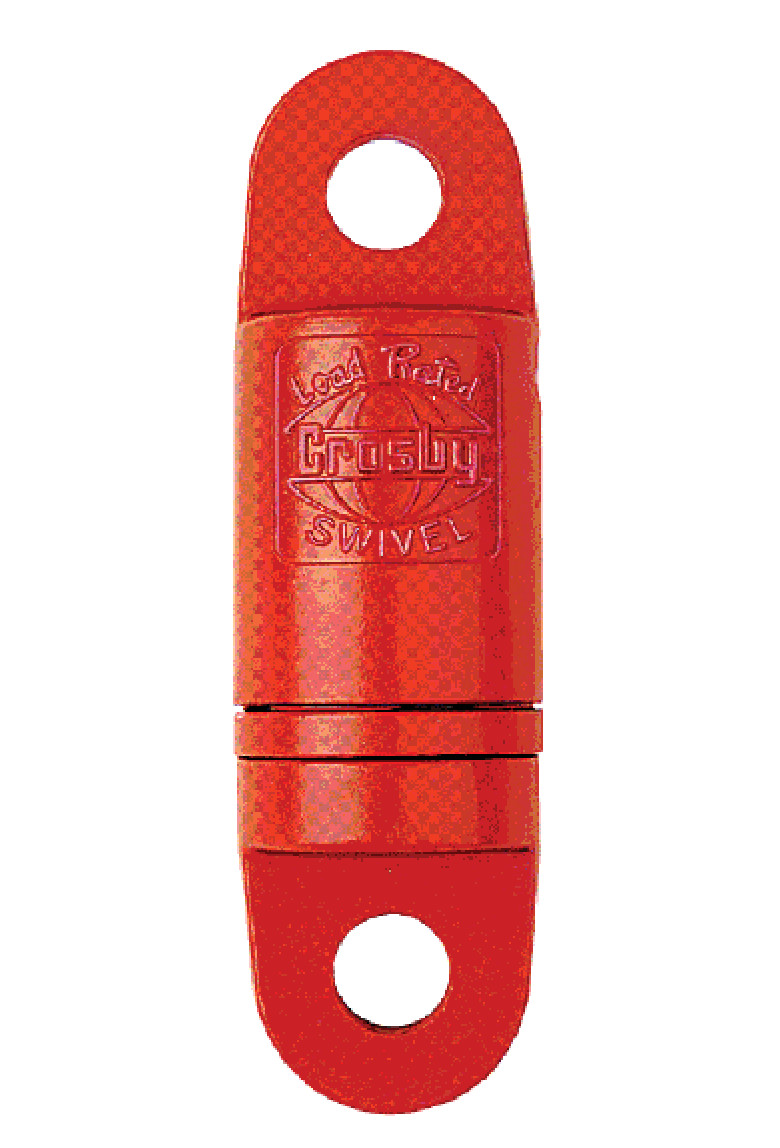

Red load-rated Crosby swivel for lifting and rigging applications.

Crosby S-5 Eye & Eye

SKU: GRRR439 Category: Hooks & Swivels

Product details

Equipped with Tapered Roller Thrust Bearing
Suitable for frequent rotation under load.
All swivels individually proof tested with labeled documentation.
All hooks furnished with latches assembled.
All jaws complete with bolts, nuts, and cotter pins.
Pressure lube fitting provided.
NOT TO BE USED ON DEMOLITION (WRECKING) BALLS.
Other types and capacities up to 1250t, available to meet your requirements.
IMPORTANT - Crosby swivels should only be used with the recommended wire rope. Contact the wire rope manufacturer for the proper wire rope to be used with Crosby swivels.

Videos

S-5 Eye & Eye

Dimensions (in)
D	G	Q	R	S	T
						3-S-5	297057	3	1/2	8.50	9.41	2.75	.75	1.03	1.12	1.25
						5-S-5	297253	5	5/8	11.30	9.81	3.00	1.00	1.28	1.25	1.25
						8-S-5	297459	8.5	3/4	29.25	11.88	4.00	1.25	1.41	1.62	1.50
						10-S-5	297654	10	7/8	42.00	15.50	4.50	1.69	1.69	2.75	1.88
						15-S-5	297850	15	1	49.00	16.38	5.00	1.94	2.03	2.75	2.12
						25-S-5	298154	25		130.00	22.25	6.00	2.25	2.31	3.88	2.38
						35-S-5	298252	35		145.00	22.25	6.50	2.25	2.31	3.88	2.38
						45-S-5	298350	45		215.00	26.50	7.00	2.50	2.53	4.00	3.00

Dimensions (mm)
D	G	Q	R	S	T
						3-S-5	297057	3	13	3.86	239	70.0	19.1	26.2	28.4	31.8
						5-S-5	297253	5	16	5.13	249	76.0	25.4	32.5	31.8	31.8
						8-S-5	297459	8.5	19	13.3	302	102	31.8	35.8	41.1	38.1
						10-S-5	297654	10	22	19.1	394	114	42.9	42.9	70.0	47.8
						15-S-5	297850	15	26	22.2	416	127	49.3	51.5	70.0	54.0
						25-S-5	298154	25		59	565	152	57.0	58.5	98.5	60.5
						35-S-5	298252	35		66	565	165	57.0	58.5	98.5	60.5
						45-S-5	298350	45		98	673	178	63.5	64.5	102	76.0

NOTE: For swivels larger than 45 metric tons, or designed to meet the requirements of demanding applications such as subsea applications, please contact the Crosby Engineered Solutions. For additional information concerning custom design products, contact Engineered Solutions at thecrosbygroup.com/engineeredsolutions.

5:1 Design Factor. Individually Proof Tested to 2 times the Working Load Limit.
