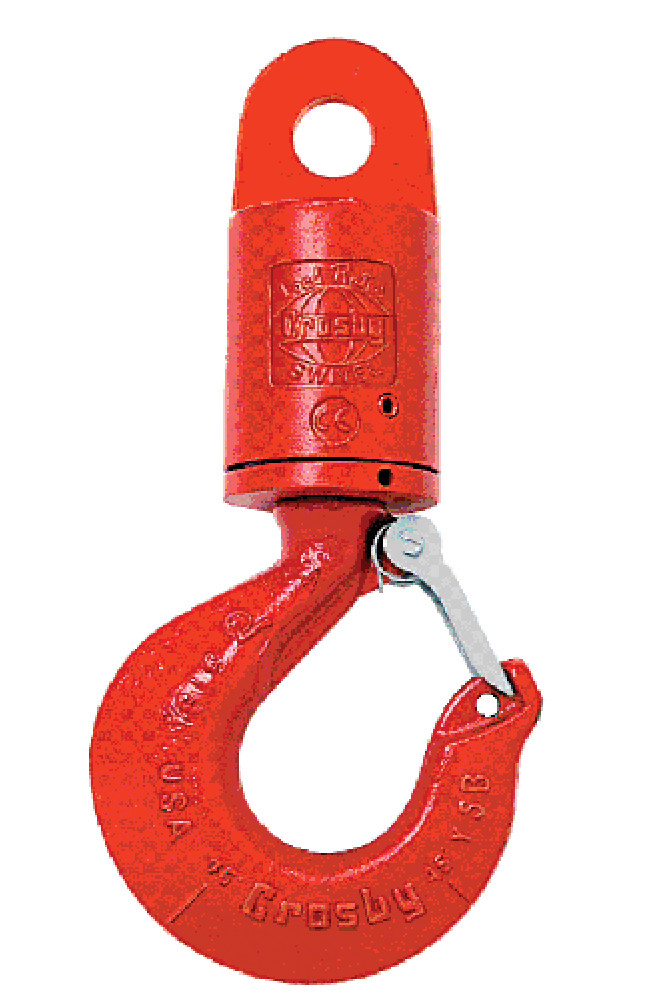

Red heavy-duty lifting hook with latch for securing loads, designed for industrial rigging and hoisting applications.

Crosby S-6 Eye & Hook - Image 2

Crosby S-6 Eye & Hook

SKU: GRRR445 Category: Hooks & Swivels

Product details

Equipped with Tapered Roller Thrust Bearing
Suitable for frequent rotation under load.
All swivels individually proof tested with labeled documentation.
All hooks furnished with latches assembled.
All jaws complete with bolts, nuts, and cotter pins.
Pressure lube fitting provided.
NOT TO BE USED ON DEMOLITION (WRECKING) BALLS.
Other types and capacities up to 1250t, available to meet your requirements.
IMPORTANT - Crosby swivels should only be used with the recommended wire rope. Contact the wire rope manufacturer for the proper wire rope to be used with Crosby swivels.

Videos

S-6 Eye & Hook

Swivel No.	Stock No.	Working Load Limit (t)*	Wire Rope Size (in)	Weight Each (lb)	Dimensions (in)
					E	F	G	L	M	P	Q	R	S	T	V
																3-S-6	297066	3	1/2	9.32	11.50	4.84	2.75	1.53	1.41	1.44	.75	1.03	1.12	1.25	1.12
																5-S-6	297262	5	5/8	14.24	13.09	6.28	3.00	1.94	1.69	1.81	1.00	1.28	1.25	1.25	1.44
																8-S-6	297468	8.5	3/4	32.00	16.07	7.54	4.00	2.46	2.22	2.25	1.25	1.41	1.62	1.50	1.62
																10-S-6	297663	10	7/8	45.50	19.12	8.34	4.50	2.59	2.41	2.59	1.69	1.69	2.75	1.88	1.94
																15-S-6	297869	15	1	63.00	21.24	10.34	5.00	2.81	3.19	3.00	1.94	2.03	2.75	2.12	2.38
																25-S-6	298163	25		135.00	27.53	13.62	6.00	3.44	3.62	3.66	2.25	2.31	3.88	2.38	3.00
																35-S-6	298261	35		215.00	30.69	14.06	6.50	3.88	3.75	4.56	2.25	2.31	3.88	2.38	3.19
																45-S-6	298369	45		270.00	35.69	15.44	7.00	4.75	4.25	5.06	2.50	2.53	4.00	3.00	3.25

Swivel No.	Stock No.	Working Load Limit (t)	Wire Rope Size (mm)	Weight Each (kg)	Dimensions (mm)
					E	F	G	L	M	P	Q	R	S	T	V
																3-S-6	297066	3	13	4.23	292	123	70.0	38.9	35.8	36.6	19.1	26.2	28.4	31.8	28.4
																5-S-6	297262	5	16	6.46	332	160	76.0	49.3	42.9	46.0	25.4	32.5	31.8	31.8	36.6
																8-S-6	297468	8.5	19	14.5	408	192	102	62.5	56.5	57.0	31.8	35.8	41.1	38.1	41.1
																10-S-6	297663	10	22	20.6	486	212	114	66.0	61.0	66.0	42.9	42.9	70.0	47.8	49.3
																15-S-6	297869	15	26	28.6	540	263	127	71.5	81.0	76.0	49.3	51.5	70.0	54.0	60.5
																25-S-6	298163	25		61	699	346	152	87.5	92.0	93.0	57.0	58.5	98.5	60.5	76.0
																35-S-6	298261	35		98	780	357	165	98.5	95.5	116	57.0	58.5	98.5	60.5	81.0
																45-S-6	298369	45		122	907	392	178	121	108	129	63.5	64.5	102	76.0	82.5

5:1 Design Factor. Individually Proof Tested to 2 times the Working Load Limit.

Diagram Images

Downloads

Downloads

Download print version of the catalog (PDF)

Locate a local sales manager

✖
