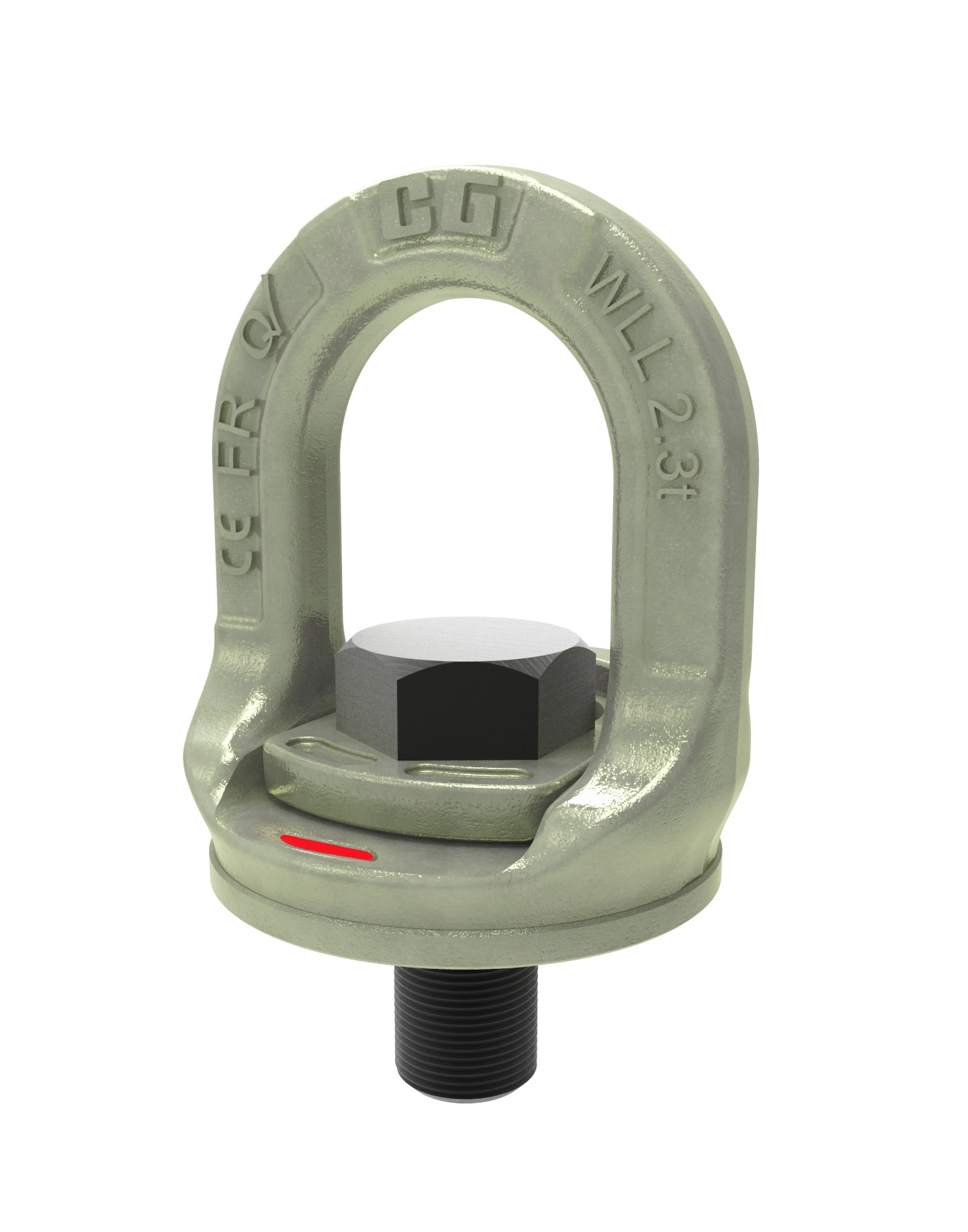

Crosby SL-150 UNC Slide-Loc Lifting Point

SKU: GRRRR45 Category: Lifting Points

Product details

When compared to respective size eye bolts, the Crosby SL-150 Slide-Loc™ has a larger eye opening for easy access.
Bail is forged alloy steel – Quenched & Tempered.
Bail swivels 360° degrees to keep the load aligned with the sling leg.
Rated at 100% for 90 degree angle.
Fatigue rated to 20,000 cycles at 1-1/2 times the Working Load Limit.
Meets the Machinery Directive 2006/42/EC guidelines and is marked with CE accordingly.
Bolt specification for metric bolt is Grade 10.9 alloy cap screw to ISO 898-1.
Unique locking mechanism makes the lifting point well suited for quick attachment to load surface. No need for tools.

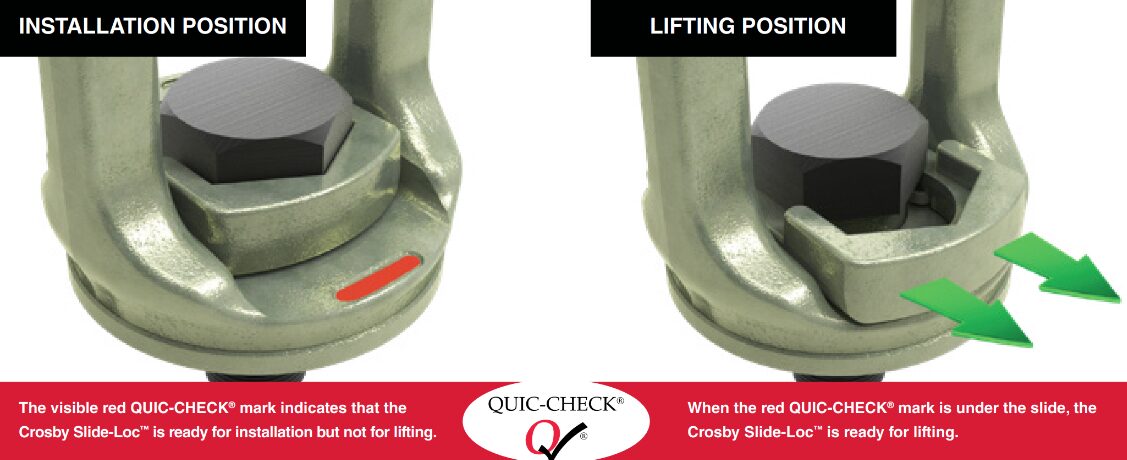

Features QUIC-CHECK® markings on bail to assist in knowing when device is ready for lifting.

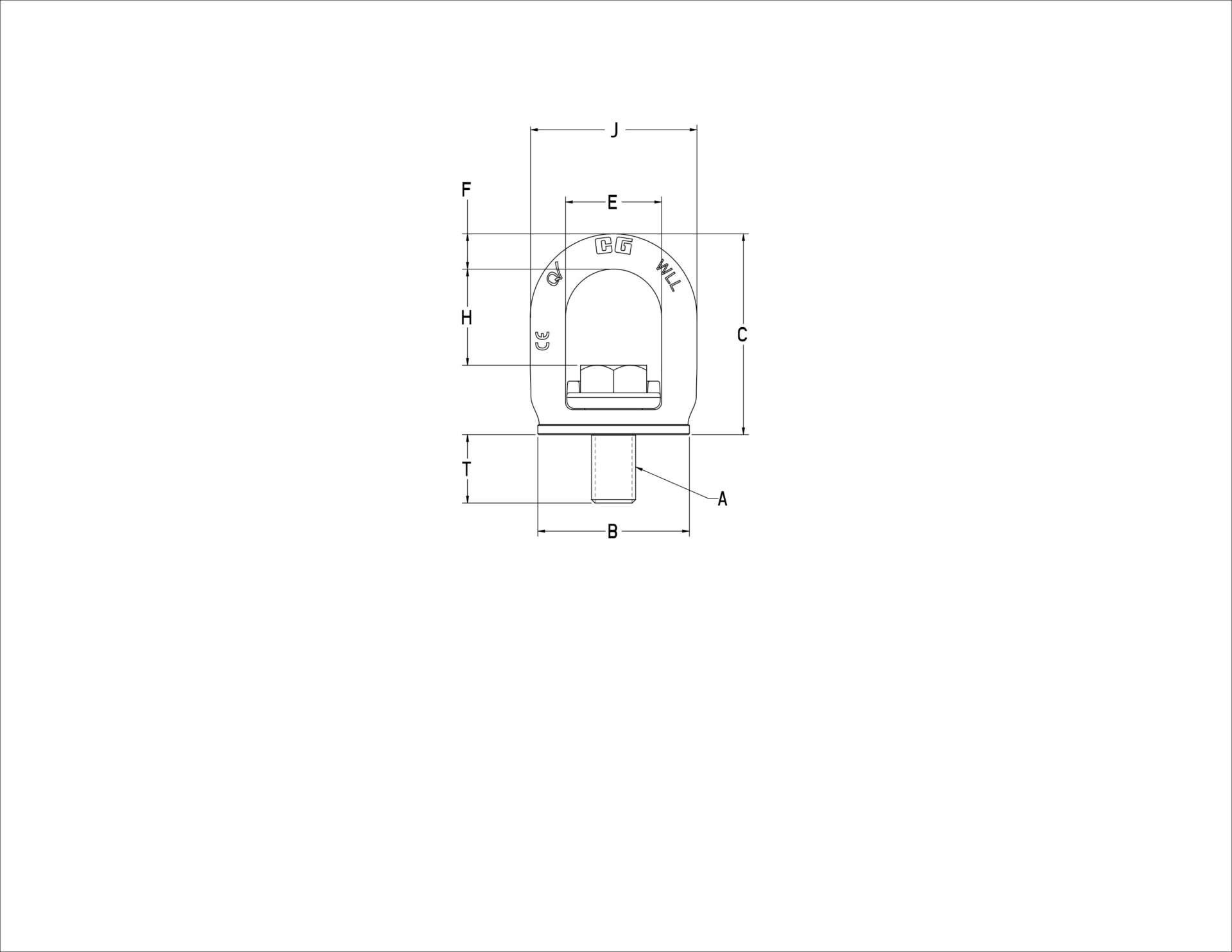

Dimensions (in)							Effective Thread Projection Length
Bolt Size A	B	C	E	F	H	J	T
								0.30	1068407	0.50	3/8 - 16 x 1	1.40	2.09	1.10	0.33	1.11	1.77	0.60
								0.53	1068416	0.75	1/2 - 13 x 1 - 1/4	1.67	2.47	1.30	0.41	1.30	2.13	0.79
								1.10	1068425	1.50	5/8 - 11 x 1 - 5/8	2.17	2.98	1.46	0.52	1.46	2.50	1.01
								2.05	1068434	2.30	3/4 - 10 x 2	2.71	3.59	1.72	0.63	1.72	2.98	1.26
								2.16	1068443	2.30	7/8 - 9 x 2	2.71	3.61	1.72	0.63	1.72	2.98	1.23
								3.73	1068452	3.20	1 - 8 x 2 - 1/2	3.25	4.33	2.08	0.76	1.93	3.59	1.59

Dimensions (mm)							Effective Thread Projection Length
Bolt Size A (in)	B	C	E	F	H	J	T
								0.14	1068407	0.50	3/8 - 16 x 1	35.6	53.1	27.9	8.4	28.2	45.0	15.2
								0.24	1068416	0.75	1/2 - 13 x 1 - 1/4	42.4	62.7	33.0	10.4	33.0	54.1	20.1
								0.50	1068425	1.50	5/8 - 11 x 1 - 5/8	55.1	75.7	37.1	13.2	37.1	63.5	25.7
								0.93	1068434	2.30	3/4 - 10 x 2	68.8	91.2	43.7	16.0	43.7	75.7	32.0
								0.98	1068443	2.30	7/8 - 9 x 2	68.8	91.7	43.7	16.0	43.7	75.7	31.2
								1.69	1068452	3.20	1 - 8 x 2 - 1/2	82.6	110.0	52.8	19.3	49.0	91.2	40.4
