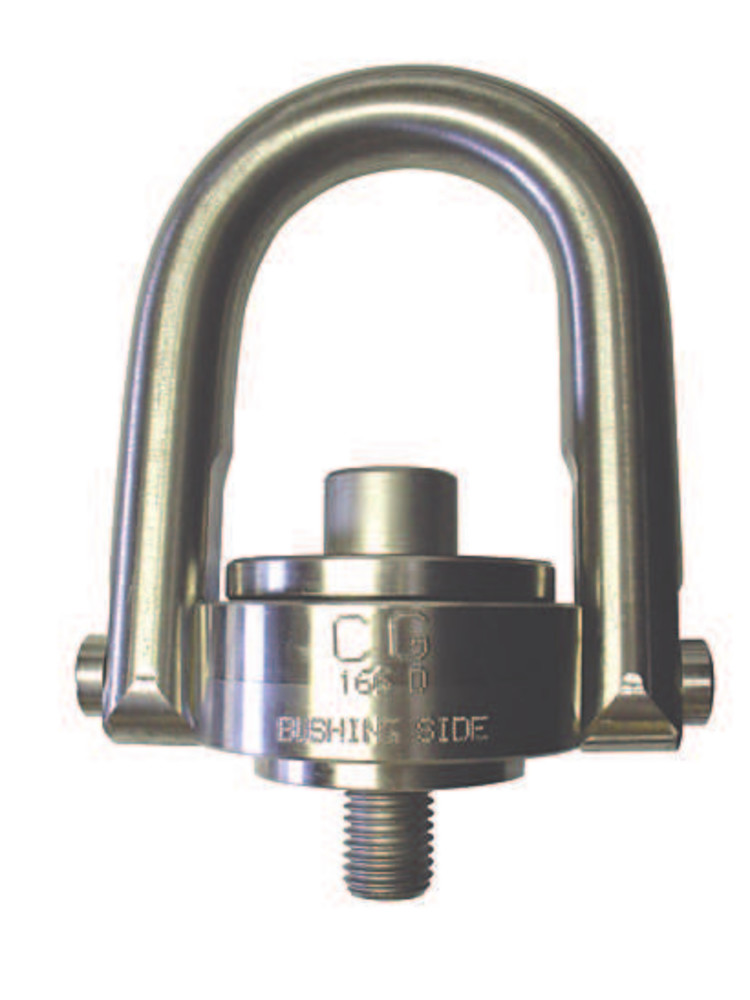

Crosby SS-125UNC Threads

SKU: GRRR273 Category: Lifting Points

Product details

All components are 316 stainless steel, except bolt retainers, which are made from 15-7 PH (UNS 15700) magnetic stainless steel.
Rated at 100 percent at 90 degree angle.
Each product has a Product Identification Code (PIC) for material traceability, along with the Working Load Limit and the name Crosby or "CG" stamped into it.
Individually proof tested to 2 times the Working Load Limit with certification.
Fatigue Rated to 20,000 cycles at 1-1/2 times the Working Load Limit.
Washer is color-coded for easy identification (Red - UNC thread).
Bolt specification is 316 stainless steel socket head cap screw to ASTM F837 Group 1 (316).
BOLT SIZE IDENTIFICATION: The size of the bolt will be stated as in the drawing above. Illustration shows meaning of each dimension given.

Videos

SS-125UNC Threads

Frame Size No.	Stock No.	Working Load Limit (lb)	Torque (ft-lb)	Dimensions (in)								Weight Each (lb)
				Bolt Size A	Effective Thread Projection Length B	C	D	Radius E	Diameter F	G	H
													1	1065000	400	3.5	5/16 - 18 x 1.0	.29	2.67	.85	.43	.34	1.84	1.27	.30
													1	1065004	400	3.5	5/16 - 18 x 1.25	.54	2.67	.85	.43	.34	1.84	1.27	.30
													1	1065008	500	6	3/8 - 16 x 1.25	.54	2.67	.85	.43	.34	1.84	1.27	.30
													2	1065016	1250	14	1/2 - 13 x 2.0	.78	4.78	1.45	.88	.69	3.52	2.31	2.6
													2	1065020	1250	14	1/2 - 13 x 2.25	1.03	4.78	1.45	.88	.69	3.52	2.31	2.6
													2	1065024	1250	14	1/2 - 13 x 2.5	1.28	4.78	1.45	.88	.69	3.52	2.31	2.6
													2	1065028	2000	30	5/8 - 11 x 2.0	.78	4.78	1.45	.88	.69	3.52	2.18	2.6
													2	1065032	2000	30	5/8 - 11 x 2.25	1.03	4.78	1.45	.88	.69	3.52	2.18	2.6
													2	1065036	2000	30	5/8 - 11 x 2.5	1.28	4.78	1.45	.88	.69	3.52	2.18	2.6
													2	1065040	2500	50	3/4 - 10 x 2.25	1.03	4.78	1.45	.88	.69	3.52	2.06	3.0
													2	1065044	2500	50	3/4 - 10 x 2.75	1.53	4.78	1.45	.88	.69	3.52	2.06	3.0
													3	1065048	3500	50	3/4 - 10 x 2.75	1.04	6.52	2.20	1.40	.94	5.14	3.06	7.0
													3	1065052	3500	50	3/4 - 10 x 3.25	1.54	6.52	2.20	1.40	.94	5.14	3.06	7.0
3	1065056	4000	80									7/8 - 9 x 2.75	1.04	6.52	2.20	1.40	.94	5.14	2.93	7.0
3	1065060	4000	80	7/8 - 9 x 3.0	1.29	6.52	2.20	1.40	.94	5.14	2.93	7.0
3	1065064	5000	115	1 - 8 x 3.0	1.29	6.52	2.20	1.40	.94	5.14	2.81	7.5
3	1065068	5000	115	1 - 8 x 3.25	1.54	6.52	2.20	1.40	.94	5.14	2.81	7.5
3	1065072	5000	115	1 - 8 x 4.0	2.29	6.52	2.20	1.40	.94	5.14	2.81	7.5
4	1065080	7500	235	1-1/4 - 7 x 4.0	1.89	8.73	3.19	1.75	1.25	6.50	4.12	14.0
5	1065084	12000	400	1-1/2 - 6 x 5.5	2.70	12.47	4.87	2.25	1.75	8.55	6.41	34.0
5	1065088	15000	550	2 - 4.5 x 5.75	2.96	12.47	4.87	2.25	1.75	8.55	5.91	36.0
6	1065092	25000	1050	2-1/2 - 4 x 8.0	4.00	16.87	6.52	3.00	2.25	11.67	8.03	88.0
6	1065096	25000	1050	2-1/2 - 8 x 8.0	4.00	16.87	6.52	3.00	2.25	11.67	8.03	88.0
7	1065100	37500	2150	3 - 4 x 10.25	5.00	19.50	8.10	3.75	2.75	14.15	8.48	166.0
8	1065104	50000	2550	3-1/2 - 4 x 13	7.00	22.09	8.60	4.00	3.25	15.90	9.28	265.0

Frame Size No.	Stock No.	Working Load Limit (kg)	Torque (Nm)	Dimensions (mm)								Weight Each (kg)
				Bolt Size A	Effective Thread Projection Length B	C	D	Radius E	Diameter F	G	H
													1	1065000	181	4.7	5/16 - 18 x 1.0	7.4	67.8	21.6	10.9	8.6	46.7	32.3	0.14
													1	1065004	181	4.7	5/16 - 18 x 1.25	13.7	67.8	21.6	10.9	8.6	46.7	32.3	0.14
													1	1065008	227	8	3/8 - 16 x 1.25	13.7	67.8	21.6	10.9	8.6	46.7	32.3	0.14
													2	1065016	567	19	1/2 - 13 x 2.0	19.8	121	36.8	22.4	17.5	89.4	58.7	1.18
													2	1065020	567	19	1/2 - 13 x 2.25	26.2	121	36.8	22.4	17.5	89.4	58.7	1.18
													2	1065024	567	19	1/2 - 13 x 2.5	32.5	121	36.8	22.4	17.5	89.4	58.7	1.18
													2	1065028	907	41	5/8 - 11 x 2.0	19.8	121	36.8	22.4	17.5	89.4	55.4	1.18
													2	1065032	907	41	5/8 - 11 x 2.25	26.2	121	36.8	22.4	17.5	89.4	55.4	1.18
													2	1065036	907	41	5/8 - 11 x 2.5	32.5	121	36.8	22.4	17.5	89.4	55.4	1.18
													2	1065040	1134	68	3/4 - 10 x 2.25	26.2	121	36.8	22.4	17.5	89.4	52.3	1.36
													2	1065044	1134	68	3/4 - 10 x 2.75	38.9	121	36.8	22.4	17.5	89.4	52.3	1.36
													3	1065048	1588	68	3/4 - 10 x 2.75	26.4	166	55.9	35.6	23.9	131	77.7	3.18
													3	1065052	1588	68	3/4 - 10 x 3.25	39.1	166	55.9	35.6	23.9	131	77.7	3.18
3	1065056	1814	108									7/8 - 9 x 2.75	26.4	166	55.9	35.6	23.9	131	74.4	3.18
3	1065060	1814	108	7/8 - 9 x 3.0	32.8	166	55.9	35.6	23.9	131	74.4	3.18
3	1065064	2268	156	1 - 8 x 3.0	32.8	166	55.9	35.6	23.9	131	71.4	3.40
3	1065068	2268	156	1 - 8 x 3.25	39.1	166	55.9	35.6	23.9	131	71.4	3.40
3	1065072	2268	156	1 - 8 x 4.0	58.2	166	55.9	35.6	23.9	131	71.4	3.4
4	1065080	3402	156	1-1/4 - 7 x 4.0	48.0	222	81	44.5	31.8	165	105	6.35
5	1065084	5443	319	1-1/2 - 6 x 5.5	68.6	317	124	57.2	44.5	217	163	15.4
5	1065088	6804	542	2 - 4.5 x 5.75	75.2	317	124	57.2	44.5	217	150	16.3
6	1065092	11340	746	2-1/2 - 4 x 8.0	102	428	166	76.2	57.2	296	204	39.9
6	1065096	11340	1424	2-1/2 - 8 x 8.0	102	428	166	76.2	57.2	296	204	39.9
7	1065100	17010	1424	3 - 4 x 10.25	127	495	206	95.3	69.9	359	215	75.3
8	1065104	22680	2915	3-1/2 - 4 x 13	178	561	218	102	82.6	404	236	120
