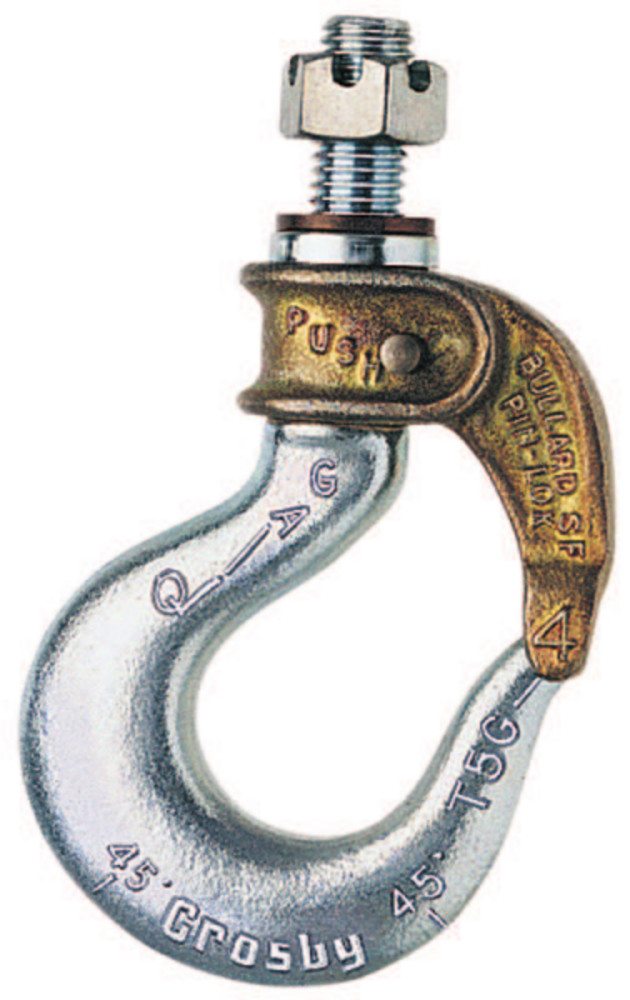

Crosby Standard Length Shank Hooks

SKU: GRRR191 Category: Hooks & Swivels

Product details

For use on existing load blocks, with standard shank length.
- BL-D with self-closing gate
Numbers 2 through 12 style hooks are threaded approximately 80% of shank length.
Crosby Bullard® Hooks incorporate QUIC-CHECK® deformation and angle indicators. (For detailed information, see the Crosby Value Added page at the beginning of this section.)

Videos

Standard Length Shank Hooks

Hook Size	BL-D Stock No.	Gate Type	WLL (short Tons)*	Weight Each (lb)	Dimensions (in)													BL-GA Gate Assemblies	BL-RK Gate Repair Kit	Hook ID Code	AA (in)
					A	B	C	D	E	F	G	H	I	J	SD	SL	ST	Self Close Stock No.	Stock No.
																						2	1050606	PIN-LOK	.91	1.1	4.12	3.00	.93	.16	.97	1.25	2.88	.81	.75	.56	.50	.91	.59	1100309	1100101	D	1.50
																						3	1050617	PIN-LOK	1.3	1.3	4.50	3.31	.94	.22	1.06	1.38	3.19	.94	.84	.63	.56	1.25	.75	1100331	1100102	F	1.50
																						4	1050628	PIN-LOK	1.5	1.7	4.88	3.63	1.00	.22	1.13	1.50	3.63	1.16	1.00	.75	.63	1.31	1.19	1100353	1100103	G	2.00
																						5	1050639	ROLLOX	2.1	2.5	5.63	4.12	1.23	.25	1.25	1.64	4.09	1.31	1.12	.84	.75	1.31	1.00	1100375	1100112	H	2.00
																						6	1050650	ROLLOX	3.6	3.5	6.23	4.70	1.25	.25	1.39	1.64	4.56	1.57	1.34	.97	.88	1.69	1.16	1100397	1100113	6	2.50
																						7	1050661	ROLLOX	3.8	5.2	6.61	5.21	1.12	.25	1.50	2.00	4.94	1.63	1.44	1.13	1.00	1.81	1.38	1100419	1100123	I	2.50
																						8	1050672	ROLLOX	5.0	7.1	7.17	5.80	1.06	.28	1.75	2.25	5.84	2.00	1.65	1.23	1.13	2.06	1.50	1100441	1100124	8	3.00
																						9	1050683	ROLLOX	6.5	9.5	7.85	6.45	1.06	.31	1.88	2.50	6.50	2.06	1.81	1.38	1.25	2.44	1.81	1100463	1100125	J	4.00
																						11	1050694	TIP-LOK	8.3	15.6	9.62	8.00	1.25	.31	2.25	3.00	7.56	2.63	2.25	1.62	1.50	2.69	1.88	1100507	1100144	K	4.00
																						12	1050705	TIP-LOK	11.2	21.0	10.53	8.84	1.25	.38	2.50	3.25	8.69	2.94	2.59	1.94	1.63	2.88	2.13	1100529	1100155	L	4.50
																						13	1050716	TIP-LOK	13.6	30.0	11.23	9.54	1.25	.38	3.00	3.75	9.63	3.28	2.75	1.94	1.75	3.50	2.20	1100551	1100166	13	5.00
																						14	1050727	TIP-LOK	16.8	40.0	12.60	10.75	1.41	.38	3.38	4.25	11.00	3.50	2.97	2.38	2.00	3.75	2.38	1100573	1100177	N	5.00

Hook Size	BL-D Stock No.	Gate Type	Working Load Limit (t)	Weight Each (kg)	Dimensions (mm)													BL-GA Gate Assemblies	BL-RK Gate Repair Kit	Hook ID Code	AA (mm)
					A	B	C	D	E	F	G	H	I	J	SD	SL	ST	Self Close Stock No.	Stock No.
																						2	1050606	PIN-LOK	.91	.50	105	76.2	23.6	4.06	24.6	31.8	73.0	20.6	19.1	14.2	12.7	23.1	15	1100309	1100101	D	38.1
																						3	1050617	PIN-LOK	1.3	.59	114	84.1	23.9	5.58	26.9	35.1	81.0	23.9	21.3	16.0	14.2	31.8	19.1	1100331	1100102	F	38.1
																						4	1050628	PIN-LOK	1.5	.77	124	92.2	25.4	5.58	28.7	38.1	92.0	29.5	25.4	19.1	16	33.3	30.2	1100353	1100103	G	50.8
																						5	1050639	ROLLOX	2.1	1.13	143	105	31.2	6.35	31.8	41.7	104	33.3	28.4	21.3	19.1	33.3	25.4	1100375	1100112	H	50.8
																						6	1050650	ROLLOX	3.6	1.59	158	119	31.8	6.35	35.3	41.7	116	39.9	34.0	24.6	22.4	43	29.5	1100397	1100113	6	63.5
																						7	1050661	ROLLOX	3.8	2.36	168	132	28.4	6.35	38.1	51.0	125	41.4	36.6	28.7	25.4	46	35.1	1100419	1100123	I	63.5
																						8	1050672	ROLLOX	5.0	3.22	182	147	26.9	7.11	44.5	57.0	148	51.0	41.9	31.2	28.7	52.5	38.1	1100441	1100124	8	76.2
																						9	1050683	ROLLOX	6.5	4.31	199	164	26.9	7.87	47.8	63.5	165	52.5	46.0	35.1	31.8	62	46	1100463	1100125	J	101.6
																						11	1050694	TIP-LOK	8.3	7.08	244	203	31.8	7.87	57.0	76.0	192	67.0	57.0	41.1	38.1	68.5	47.8	1100507	1100144	K	101.6
																						12	1050705	TIP-LOK	11.2	9.53	267	225	31.8	9.65	63.5	82.5	221	74.5	65.5	49.3	41.4	73	54	1100529	1100155	L	101.6
																						13	1050716	TIP-LOK	13.6	13.6	285	242	31.8	9.65	76.0	95.0	245	83.5	70.0	49.3	44.5	89	56	1100551	1100166	13	127.0
																						14	1050727	TIP-LOK	16.8	18.1	320	273	35.8	9.65	86.0	108	279	89.0	75.5	60.5	51	92.5	60.5	1100573	1100177	N	127.0

4:1 Design Factor.

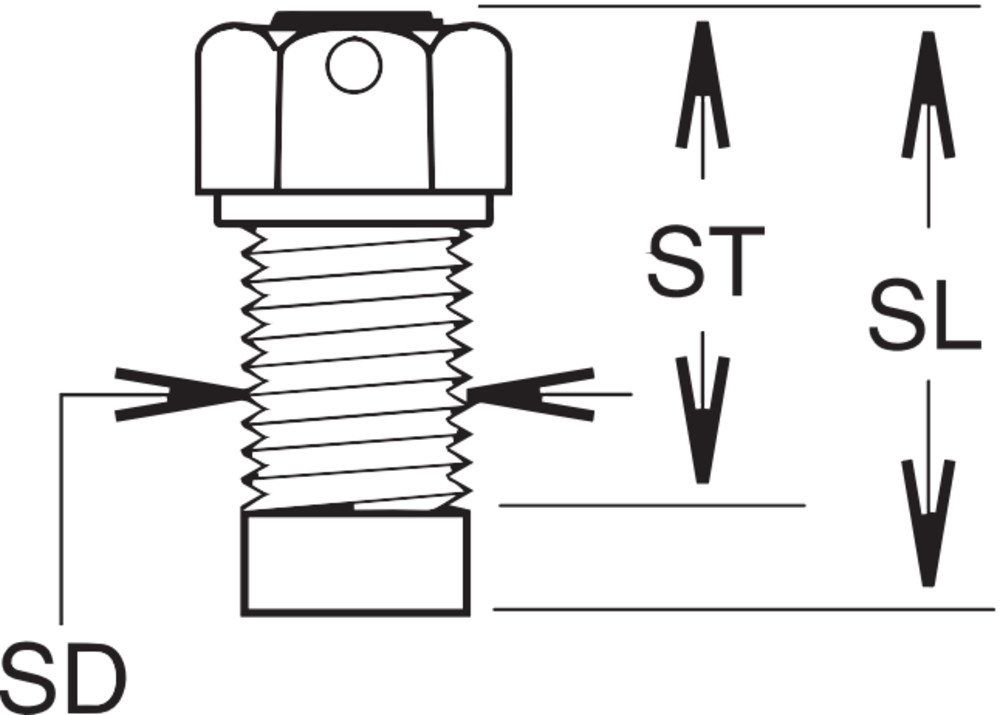

Diagram Images
