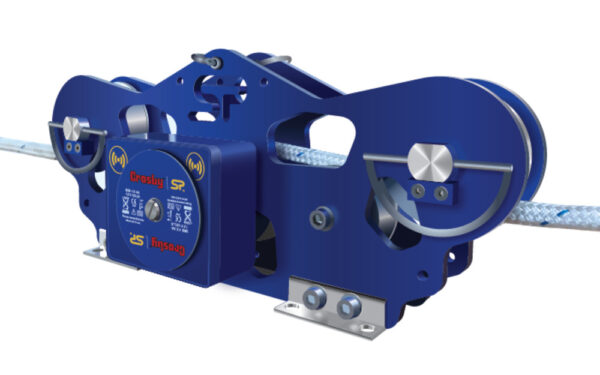

Crosby Straightpoint CableSafe

Product details

• Simple to use and set up.
• Remote monitoring using smart phone via Bluetooth.
• Rapid tension force measurement - Up to 1,968ft per minute.
• Able to be used in all weather and air quality conditions.
• Battery type: 4 x AA standard alkaline providing up to 500 hours battery life.
• Fully constructed from aerospace-grade aluminum with anodized finish.
• Five-wheel design, improving accuracy.
• Blue anodized side plates.
• Linchpins are fitted to the top sheave pins, making wire rope installation quick and simple.
• Maintenance free heavy duty bearings.
• Compatible with a wide range of synthetic rope/electrical cable diameters 5/32 in to 1 3/16 in.
• IP67 ingress protection or NEMA6 – heavy protection against dust and rain.
• Design validated by FEA.
• Accuracy: 2% of Full Scale.
• Range: 328 feet.
• Operating Temperature: 14°F to 122°F.
