Crosby Straightpoint ChainSafe

SKU: GRRR280 Category: Load Monitoring

Product details

Designed to work with 3/8 in chain.
Unmatched weight-to-strength ratio.
Update rate of 1Hz and the Bluetooth signal effortlessly connects to any iOS or Android smartphone that has our free HHP App that will alert the operator on their smartphone if any overload is occurring.
Bluetooth wireless range of 328ft.
No battery change required.
Battery life: 5 yrs based on 3 hrs use per day.
Battery Type: Lithium Thionyl Chloride (non replaceable).
Environmentally sealed to IP67/NEMA6.
Internal antenna.
Conforms to EN1677:2008.
Fatigue tested to 30,000 cycles to 1.5x WLL.
Design Factor: 4:1.
Operating Temperature: 14°F to 122°F.

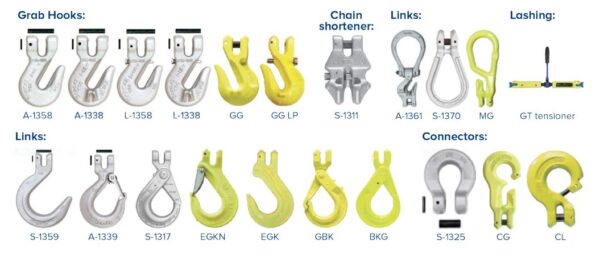

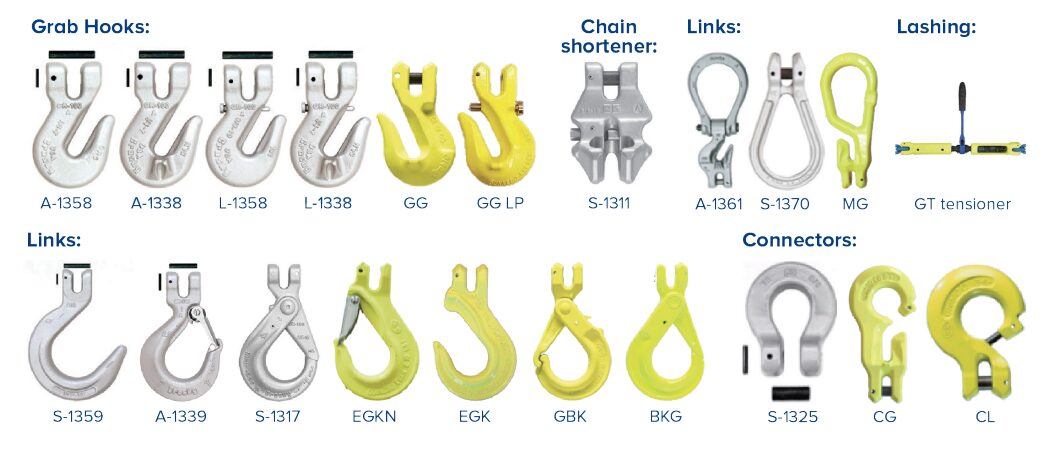

Recommended Fittings: 3/8” (10mm) G100 chain fittings.

ChainSafe

Stock No.	Model	Capacity (lb)	Resolution (lb)	Weight (lb)	Dimensions (in)
					A	B	C	D	E	F	G
												2789536	CS4T-CROSBY	88000	5	5.5	6.46	1.38	3.35	5.20	0.52	0.43	1.10

Stock No.	Model	Capacity (t)	Resolution (t)	Weight (kg)	Dimensions (mm)
					A	B	C	D	E	F	G
												2789536	CS4T-CROSBY	4	0.002	2.5	164	35	85	132	13.2	11	28
