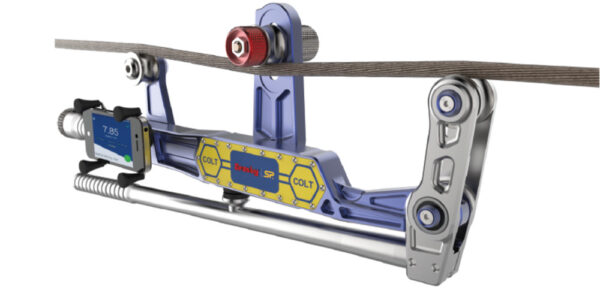

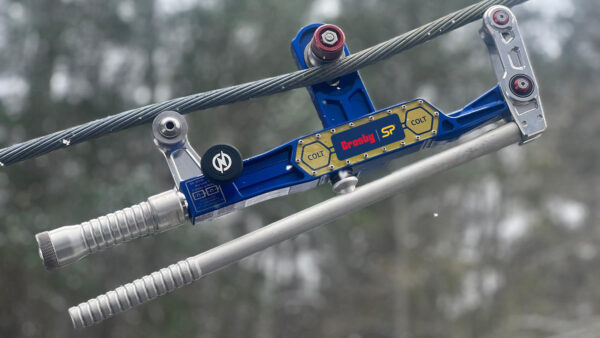

Crosby Straightpoint Clamp On Line Tension Meter (COLT)

SKU: GRRR281 Category:

Product details

  • Lightweight wire rope tension meter for fast and accurate measurement of tensions up to 11,000 lb and up to 1 in diameter.
  • Constructed from aerospace grade aluminum.
  • Unlimited wire rope calibration database via Android or iOS app.
  • Built-in magnetic smart device holder for on board display.
  • Main swivel joints fitted with high-quality bearings.
  • Lever ratio of 5.3:1 allows effortless, safe, clamping onto pre-tensioned wire ropes.

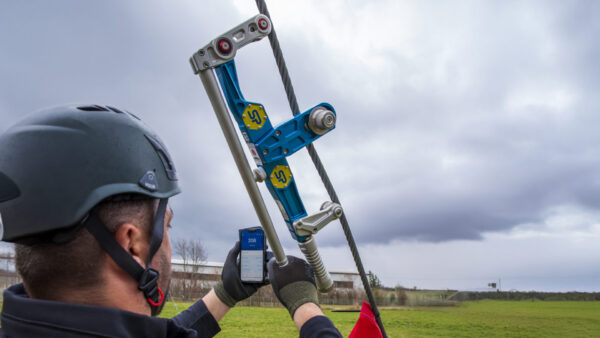

  • Wireless Bluetooth 4.2 enabling operator to stand a safe distance away, up to 328 ft.
  • Quick intuitive adjustable center sheave makes changing wire rope sizes fast and easy.
  • No easily broken external antenna.
  • High waterproof resistant design IP67 or NEMA6 for all weather use.
  • Long battery life of 1,000 hrs Bluetooth transmission time.
  • As the library of wire rope diameters and constructions is increased each app user will benefit when they update free of charge.
  • Max Line Reduction: 7/32“ with a Ø3/8” wire rope
  • Wire Rope Database: Infinite via Android or iOS app.
  • Battery Type: 2 x ‘C’ cell batteries.
  • Operating Temperature: -13°F to +158°F
  • Accuracy: ±3% of full scale if wire rope Ø and construction known.

Videos

Clamp On Line Tension Meter (COLT)

Stock No.ModelCapacity (lb)Resolution (lb)Minimum Rope Diameter (in)Maximum Rope Diameter (in)Weight (lb)Dimensions (in)
ABCD
2789000
COLT5T11000203/1617.723.2010.007.907.90
Stock No.ModelCapacity (kg)Resolution (kg)Minimum Rope Diameter (mm)Maximum Rope Diameter (mm)Weight (kg)Dimensions (mm)
ABCD
2789000
COLT5T5000105253.5589254200200

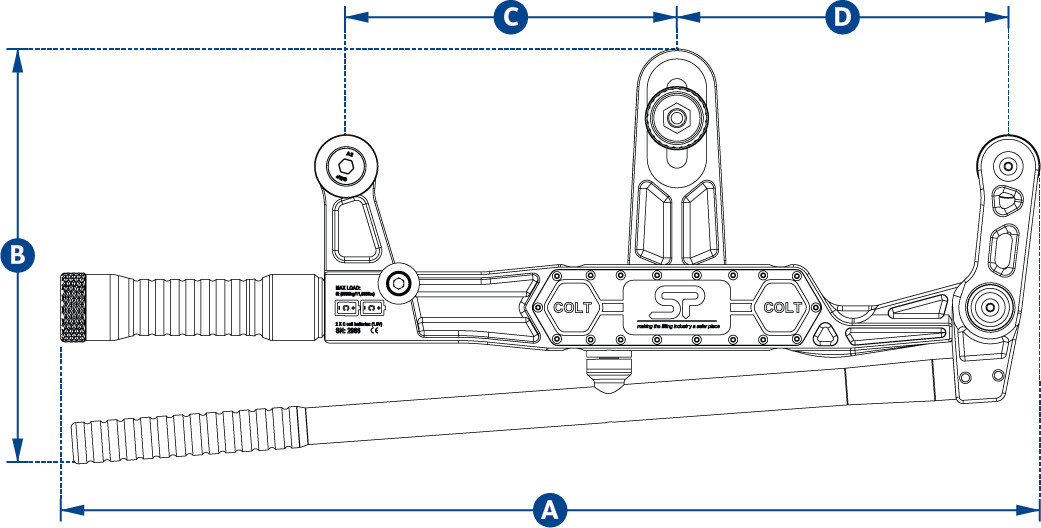

Diagram Images

Diagram 1
