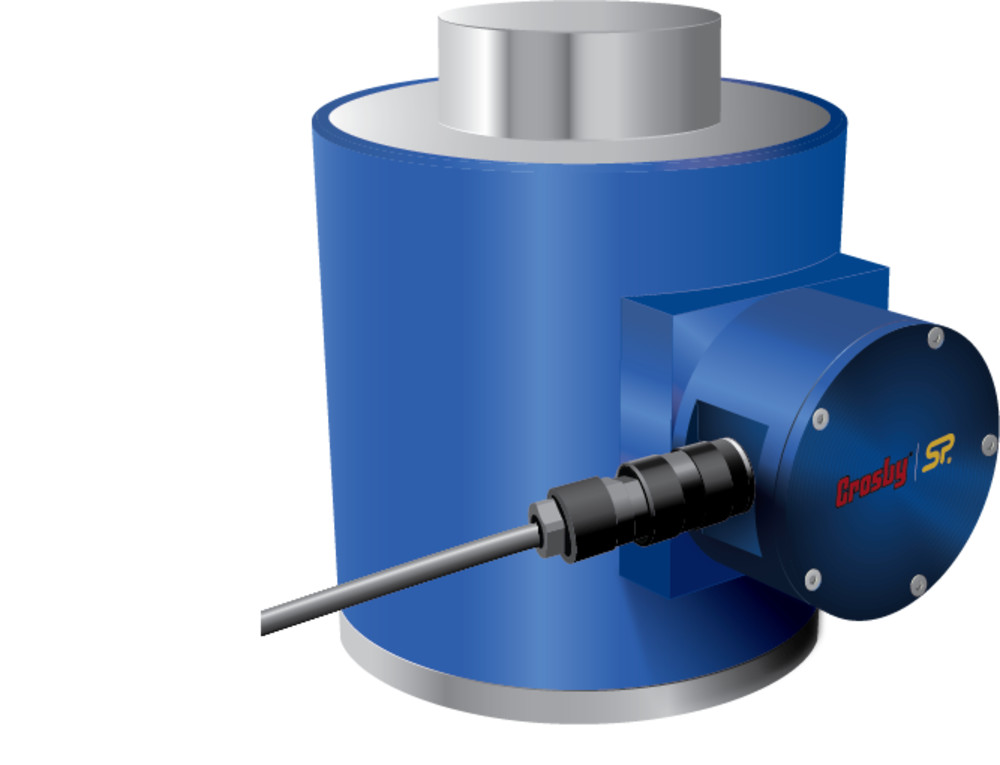

Blue hydraulic load cell illustration with attached cable, labeled Crosby | SP, for precise weight measurement.

Crosby Straightpoint Compression Loadcell NIC

SKU: GRRR364 Category: Load Monitoring

Product details

Optional analogue outputs

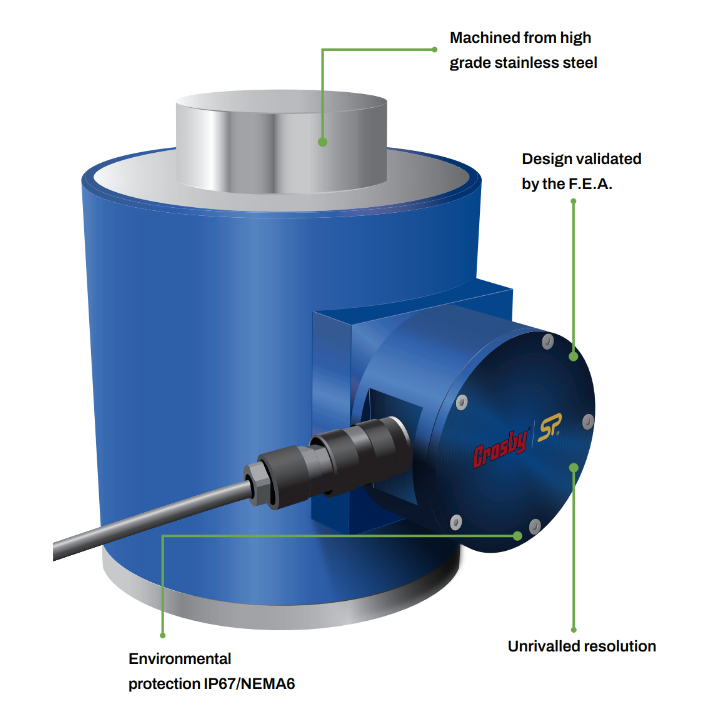

Stainless steel element
High accuracy
Custom versions available
Safety factor: 3:1
Operating Temperature: 14˚F(-10˚ C) to 122˚F (50˚C)
Accuracy: +/- 0.1% FS
Protection: IP67/NEMA6
10 Metres / 30 Feet Cable
Design validated by F.E.A.
2 year warranty

Videos

Compression Loadcell NIC

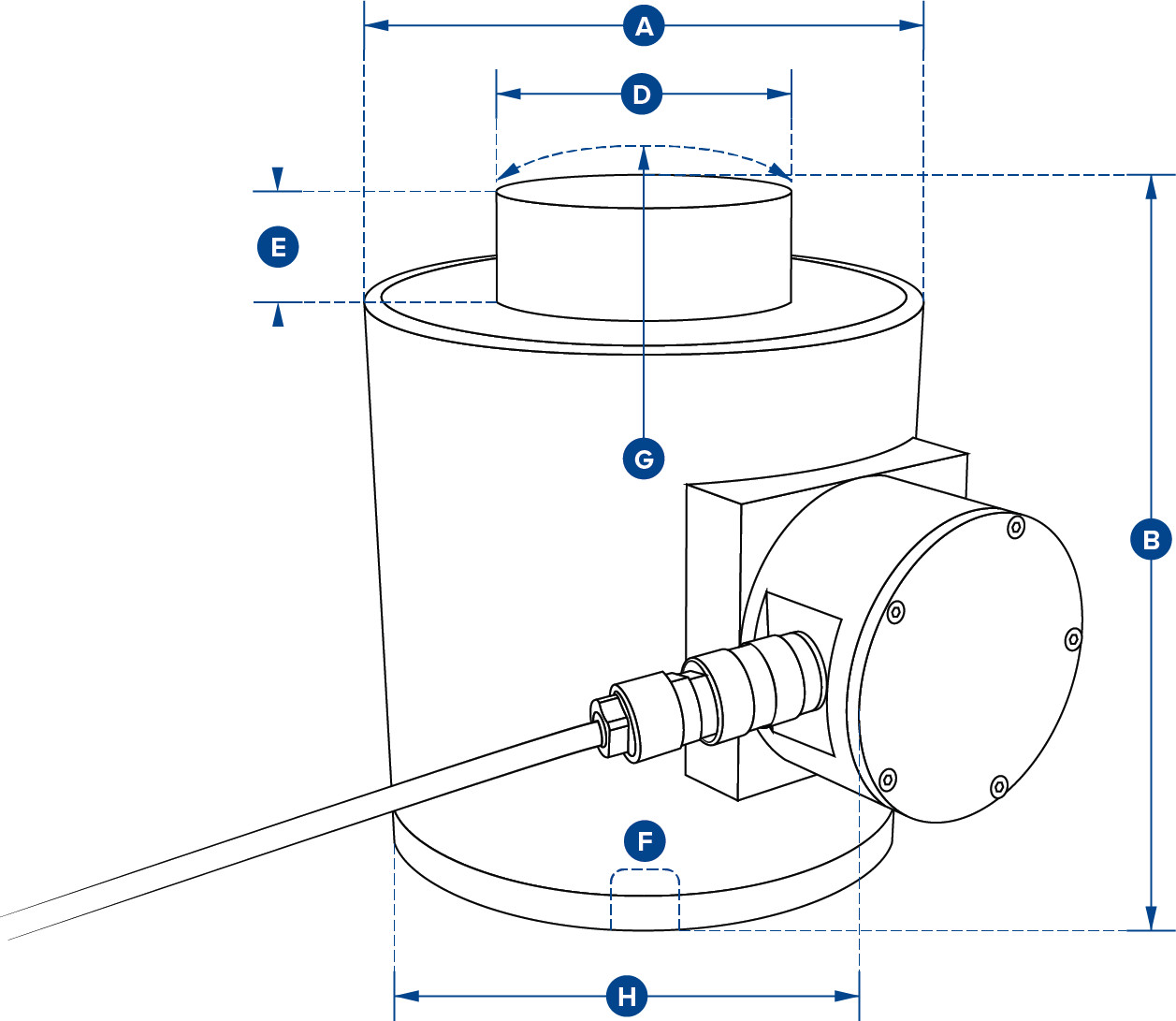

Dimensions (in)
ØA	B	ØD	E	F	G	H
							2789068	NI5TC	11000	2	13.64	3.94	5.00	2.32	0.63	M18 x 2.5	5.98	6.22
							2789062	NI10TC	22000	5	13.64	3.94	5.00	2.32	0.63	M18 x 2.5	5.98	6.22
							2789065	NI25TC	55000	10	13.64	3.94	5.00	2.32	0.63	M18 x 2.5	5.98	6.22
							2789067	NI50TC	110000	20	13.64	3.94	5.00	2.32	0.63	M20 x 2.5	5.98	6.22
							2789061	NI100TC	220000	100	34	5.98	7.24	3.15	1.02	M20 x 2.5	17.01	8.03
							2789063	NI150TC	330000	100	34	5.98	7.24	3.15	1.02	M20 x 2.5	17.01	8.03
							2789064	NI300TC	660000	200	143	7.28	11.81	6.10	1.08	M20 x 2.5	17.01	9.33
							2789066	NI500TC	1100000	500	143	7.28	11.81	6.10	1.08	M20 x 2.5	17.01	9.33
							2789275	NI1000TC	2200000	1000	379	14.25	12.20	10.63	1.57	M30 x 3.5	37.40	16.38

Dimensions (mm)
ØA	B	ØD	E	F	G	H
							2789068	NI5TC	5	0.001	6.2	100	127	59	16	M18 x 2.5	152	158
							2789062	NI10TC	10	0.002	6.2	100	127	59	16	M18 x 2.5	152	158
							2789065	NI25TC	25	0.005	6.2	100	127	59	16	M18 x 2.5	152	158
							2789067	NI50TC	50	0.01	6.2	100	127	59	16	M20 x 2.5	152	158
							2789061	NI100TC	100	0.05	15.5	152	184	80	26	M20 x 2.5	432	204
							2789063	NI150TC	150	0.05	15.5	152	184	80	26	M20 x 2.5	432	204
							2789064	NI300TC	300	0.1	65	185	300	155	28	M20 x 2.5	432	237
							2789066	NI500TC	500	0.2	65	185	300	155	28	M20 x 2.5	432	237
							2789275	NI1000TC	1000	0.5	172	362	310	270	40	M30 x 3.5	950	416

Diagram Images

Manufactured in ranges from 5te to 1000te – other capacities available on application.

Crosby Straightpoint compression load cells are manufactured to the same stringent standards as all Straightpoint products.

The bodies are machined from high grade stainless steel, offering excellent strength and anti-corrosion properties. Compression load cells can be supplied with optional loadcaps to protect objects being tested.

The compact lightweight design provides ease of use and superior portability, allowing Straightpoint compression load cells to be used in a broad range of industries including mining, energy, defense, heavy rigging, shipping and general transportation sectors.
