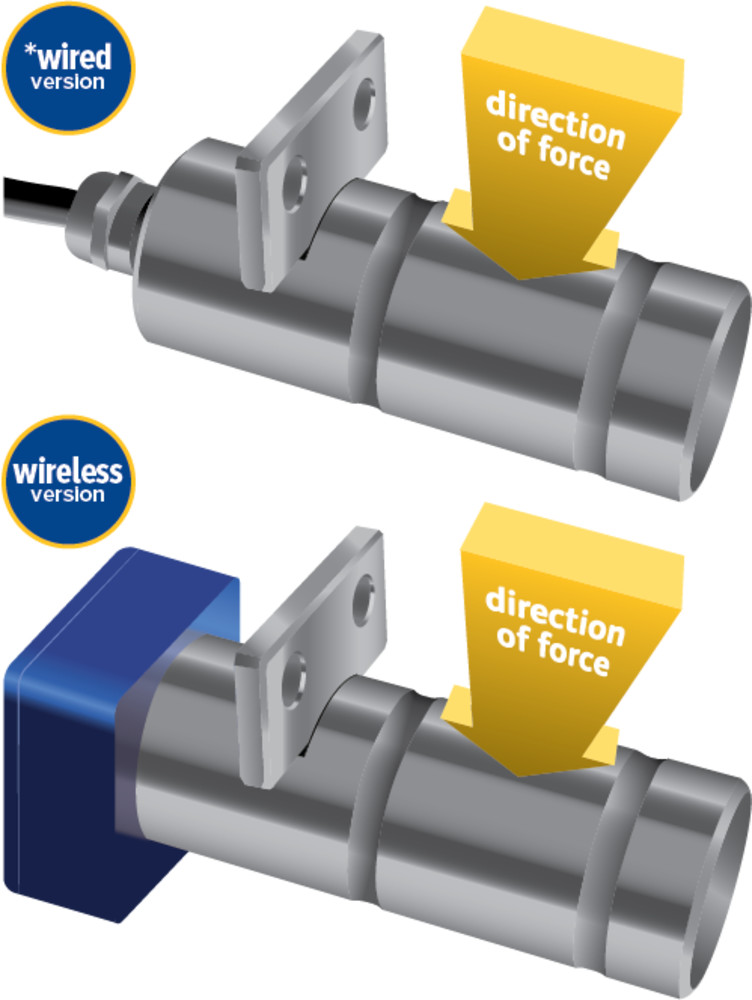

Wired and wireless load sensors with arrows showing force direction in a mechanical setup.

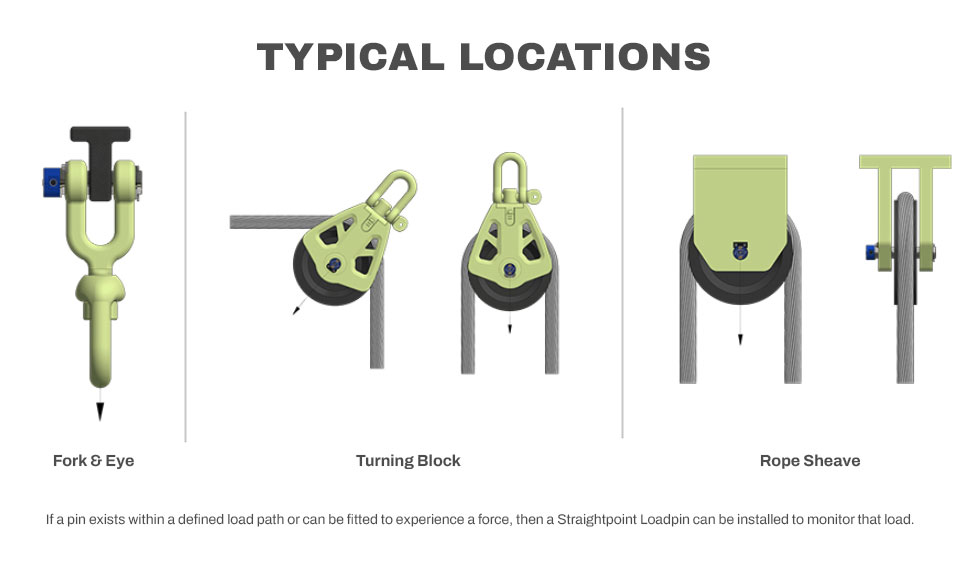

Diagram showing typical locations: Fork & Eye, Turning Block, Rope Sheave for load monitoring with Straightpoint Loadpin.

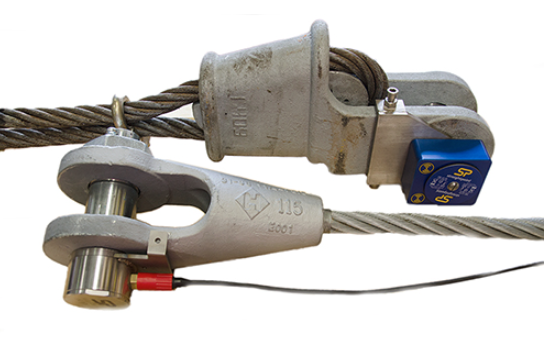

Tension measuring device attached to steel cable for load monitoring and safety inspection.

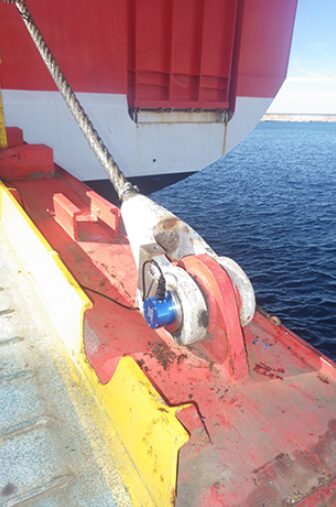

Close-up of a ship mooring hook and rope on a dock, with blue water in the background.

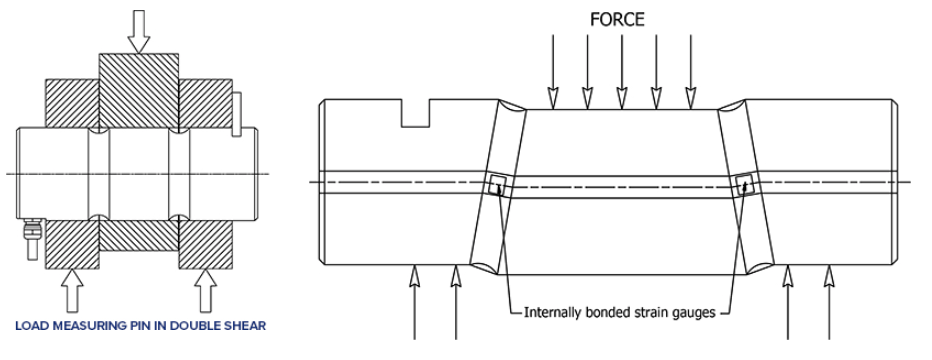

Technical diagram of a load measuring pin in double shear with internally bonded strain gauges.

Crosby Straightpoint Loadpin

SKU: GRRR357 Category: Load Monitoring

Product details

Designed for use in applications where an end of line loadcell cannot be used, meaning an integrated solution is required.
High tensile stainless steel.
Supplied complete with an anti-rotation plate as a cabled or wireless solution.
Built to withstand the harshest environments in industries such as marine and offshore oil and gas.
Suitable for use in exposed situations and can also be supplied to withstand immersion in seawater at extreme depths.
Supplied with a 32 ft cable as standard, however, usable cable length varies greatly with lengths available to 4,900 ft, depending on output format.
Include mV/V, RS-485, utilizing the ASCII, MODBUS RTU and CAN-BUS protocols or an analog output such as 4-20mA for PLC integration.
Design validated by FEA.
Design Factor: 3:1.
Operating Temperature: -4°F (-20°C) to 158°F (70°C).
Accuracy: ±1% of full scale.
Protection: IP67 [IP68 available as an option] NEMA6 [NEMA6P available on application].

Loadpin

Stock No.	Model	Capacity (lb)	Resolution (lb)	Weight (lb)	Dimensions (in)
					A	B	C	ØD
									2789276	LP500KG	1100	0.5	0.4	0.94	1.42	2.76	0.79
									2789277	LP1T	2200	1	0.5	1.38	1.93	3.15	0.79
									2789278	LP2.5T	5500	2	0.9	1.77	2.76	3.94	0.98
									2789279	LP3.5T	7700	2	1.3	1.97	2.95	4.13	1.18
									2789280	LP6.5T	14000	5	2.6	2.48	3.74	4.92	1.57
									2789281	LP15T	33000	5	5	2.95	4.49	5.91	1.97
									2789282	LP25T	55000	10	10.3	3.50	5.98	7.68	2.48
									2789283	LP50T	110000	20	18	4.02	7.01	8.86	2.95
									2789284	LP100T	220000	100	24	4.33	7.48	9.06	3.46
									2789285	LP250T	550000	200	64	5.12	8.66	11.81	4.92
									2789286	LP500T	1100000	500	172	8.86	14.57	17.32	6.69
									2789287	LP750T	1650000	500	319	11.61	19.69	23.23	7.87
									2789288	LP1000T	2200000	1000	603	14.17	24.09	28.03	9.84
2789289	LP1500T	3300000	1000	854					16.93	28.78	32.76	10.83

Stock No.	Model	Capacity (t)	Resolution (t)	Weight (kg)	Dimensions (mm)
					A	B	C	ØD
									2789276	LP500KG	500 (kg)	0.2 (kg)	0.9	24	36	70	20
									2789277	LP1T	1,000 (kg)	0.5 (kg)	1	35	49	80	20
									2789278	LP2.5T	2.5	0.001	1.2	45	70	100	25
									2789279	LP3.5T	3.5	0.001	1.4	50	75	105	30
									2789280	LP6.5T	6.5	0.002	2	63	95	125	40
									2789281	LP15T	15	0.002	3.1	75	114	150	50
									2789282	LP25T	25	0.005	5.6	89	152	195	63
									2789283	LP50T	50	0.01	8.6	102	178	225	75
									2789284	LP100T	100	0.05	11.8	110	190	230	88
									2789285	LP250T	250	0.1	29.8	130	220	300	125
									2789286	LP500T	500	0.2	79.2	225	370	440	170
									2789287	LP750T	750	0.2	146	295	500	590	200
									2789288	LP1000T	1000	0.5	275	360	612	712	250
2789289	LP1500T	1500	0.5	389					430	731	832	275

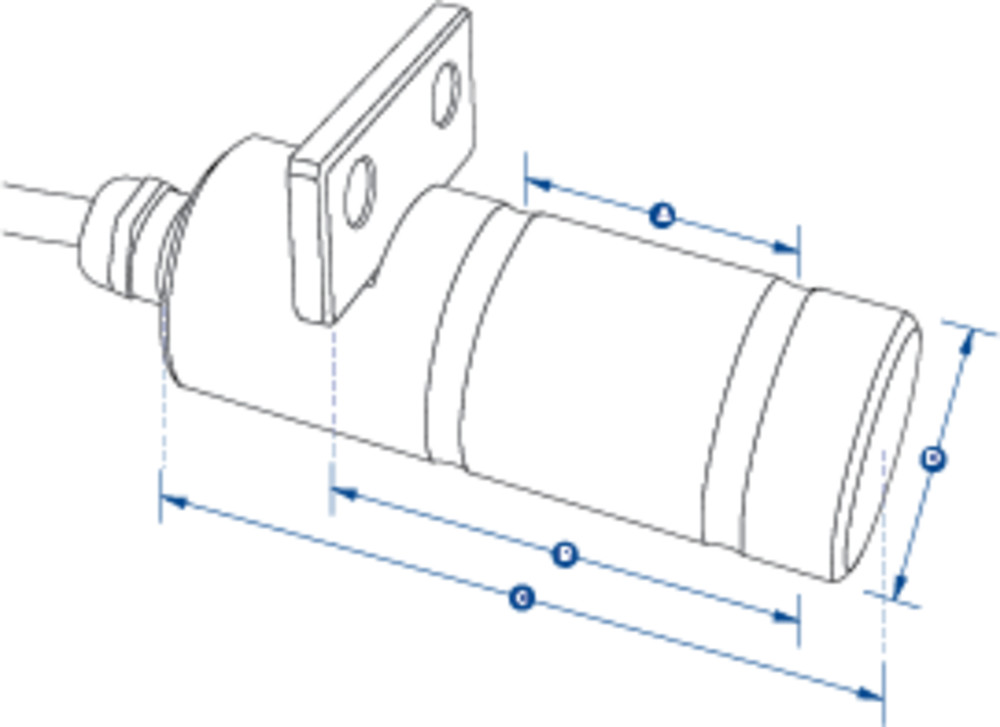

Diagram Images

The Crosby Straightpoint range of Load Measurement Pins (LMP’s) are designed for use in applications where an end of line load cell cannot be used, meaning an integrated solution is required.

Often a customized solution, they are manufactured from high tensile stainless steel and are normally supplied complete with an anti-rotation plate as a cabled or wireless solution.

Built to withstand the harshest environments in industries such as marine and offshore oil and gas, they are suitable for use in exposed situations and can also be supplied to withstand immersion in seawater at extreme depths.

Crosby Straightpoint Loadpins are typically connected to Straightpoint’s Handheld plus, or may be supplied with a vast array of output formats. These include mV/V, 4-20mA output, utilising the ASCII, MODBUS RTU and CAN-BUS protocols or an analogue output such as 4-20mA for PLC integration. All are also supplied with a 10 meter or 32ft cable as standard, however, usable cable length varies greatly with lengths available to 1500 meters or 4900ft, depending on output format.
