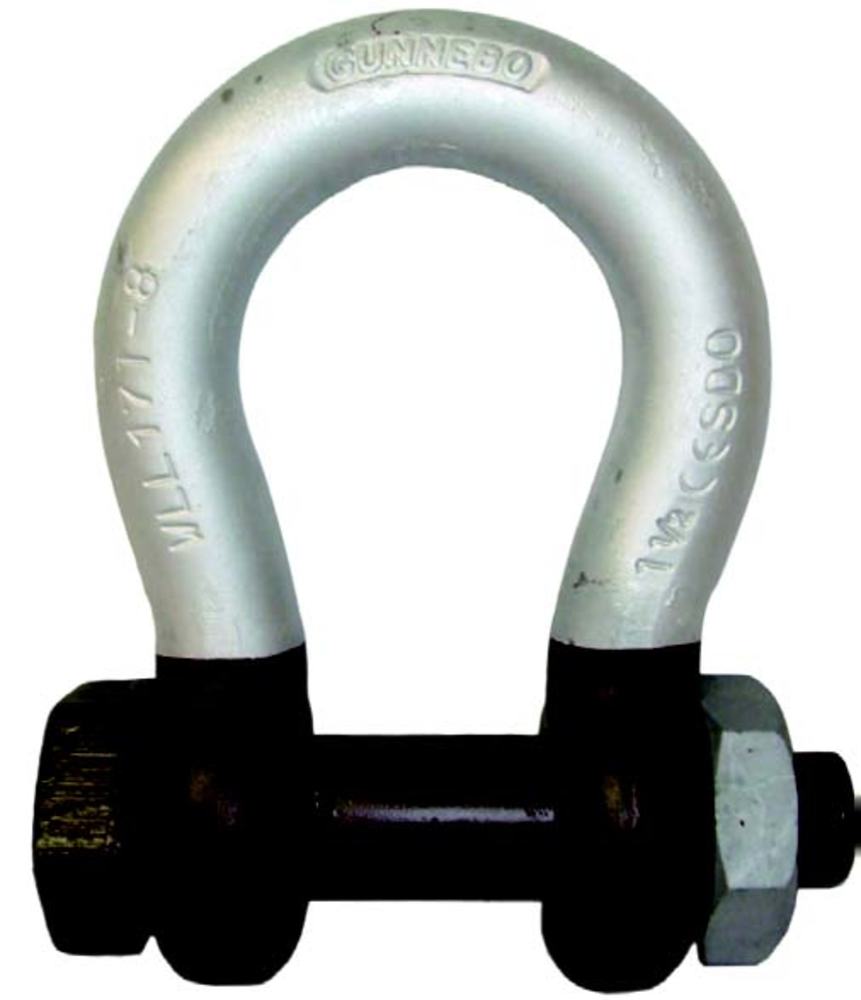

Gunnebo Industries Arctic Shackle No 856

Gunnebo Industries Arctic Shackle No 856

SKU: GRRRR47 Category: Shackles

Product details

Specifically designed for adverse weather and harsh sea conditions, including extreme low temperatures like those in the North Sea.
Type Approved to DNV 2.7-1 for offshore containers and meets impact requirements of 42 J at -40° C.
Made from special alloy steel, hot-dip galvanized for maximum corrosion resistance.
All parts, including the safety bolt, are hot-dip galvanized..
Rated for temperatures ranging from -40° F (-40° C) to 392°F (200° C).
Clearly marked with brand, grade, WLL, size, CE marking, and traceability code for full traceability.
Bolt is marked with manufacturer ID, traceability code, and grade to ensure quality and authenticity.

Videos

Arctic Shackle No 856

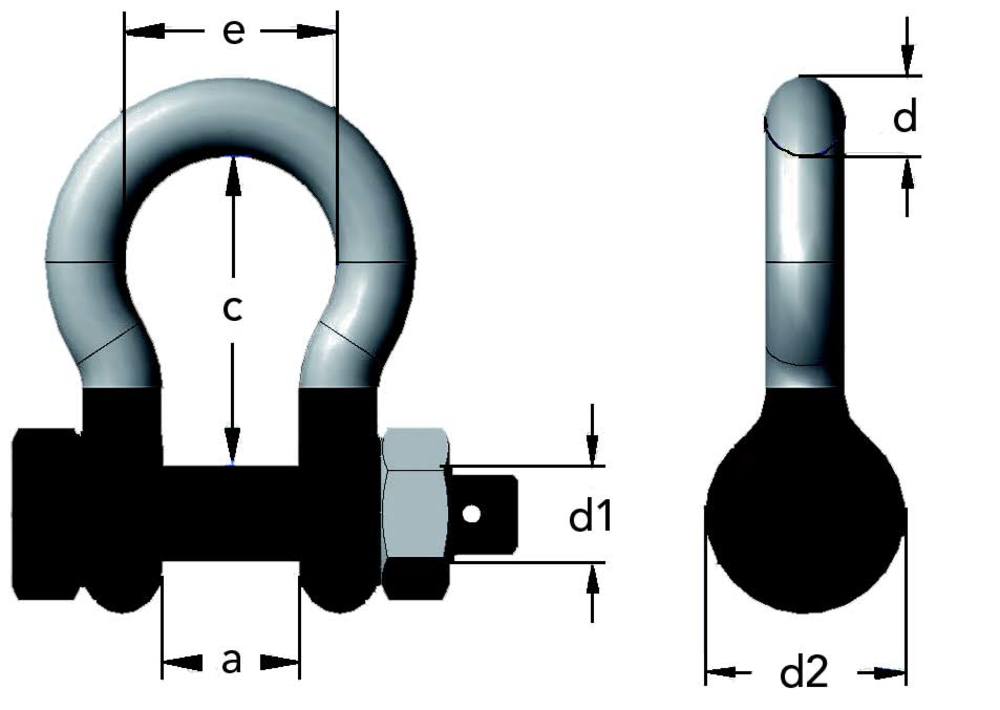

Bow shackle with safety bolt

Nominal Size d
(mm)	(in)
		A085613	2.0	8.00	0.62	13	1/2”	0.82	1.85	1.29	1.29	0.92
		A085616	3.25	8.00	0.74	16	5/8”	1.06	2.36	1.65	1.57	1.54
		A085619	4.75	8.00	0.86	19	3/4”	1.22	2.79	1.92	1.88	2.64
		A085622	6.5	7.85	0.98	22	7/8”	1.45	3.30	2.36	2.04	3.74
		A085625	8.5	7.25	1.10	25	1”	1.69	3.74	2.67	2.36	5.51
		A085628	9.5	6.94	1.25	28	1 1/8”	1.81	4.25	2.91	2.51	7.49
		A085632	12.0	6.40	1.37	32	1 1/4”	2.04	4.68	3.26	2.83	10.5
		A085635	13.5	6.10	1.49	35	1 3/8”	2.24	5.19	3.50	2.99	15.4
		A085638	17.0	6.00	1.65	38	1 1/2”	2.36	5.74	3.85	3.30	19.8
		A085645	25.0	6.00	1.96	45	1 3/4”	2.91	7.00	5.00	4.13	33.0
		A085652	35.0	6.00	2.24	50	2”	3.26	7.75	5.43	4.56	46.2
		A085664	55.0	6.00	2.75	65	2 1/2”	4.13	10.2	7.08	5.70	85.9

Nominal Size d
(mm)	(in)
		A085613	2.0	8.00	16	13	1/2”	21	47	33	33	0.42
		A085616	3.25	8.00	19	16	5/8”	27	60	42	40	0.7
		A085619	4.75	8.00	22	19	3/4”	31	71	49	48	1.2
		A085622	6.5	7.85	25	22	7/8”	37	84	60	52	1.7
		A085625	8.5	7.25	28	25	1”	43	95	68	60	2.5
		A085628	9.5	6.94	32	28	1 1/8”	46	108	74	64	3.4
		A085632	12.0	6.40	35	32	1 1/4”	52	119	83	72	4.8
		A085635	13.5	6.10	38	35	1 3/8”	57	132	89	76	7
		A085638	17.0	6.00	42	38	1 1/2”	60	146	98	84	9
		A085645	25.0	6.00	50	45	1 3/4”	74	178	127	105	15
		A085652	35.0	6.00	57	50	2”	83	197	138	116	21
		A085664	55.0	6.00	70	65	2 1/2”	105	260	180	145	39

Unique benefits with the Arctic ShackleAdverse weather and rough sea conditions in combination with extremely low temperatures, as often encountered for instance in the North Sea, places tough requirements on the products used. 856 Arctic shackles are specially designed for these conditions. The Arctic Shackle is type approved to DNV 2.7-1 Offshore containers and meets the impact requirements of 42 J at – 40 degrees ºC.The Arctic Shackle is a grade 8 shackle with all parts hot-dip galvanized, including the safety bolt, and has the characteristic brown color marking.

* Forging tolerance: +/- 5% on inside width/length.

Split pin included
