Gunnebo Industries Bow Shackle No 855

SKU: GRRR474 Category: Shackles

Product details

Made from high tensile carbon steel, quenched and tempered for enhanced strength and durability.
All parts are hot-dip galvanized for corrosion protection.
Grade 6.
6:1 Design Factor.
Rated for temperatures ranging from -40° F (-40° C) to 392°F (200° C).
Complies with EN 10204-3.1, DNVGL-ST-E271-2.7-1, and E273-2.7-3 Type Approval Certification.
Meets EN 13889 and US Federal Specification RR-C-271 standards.
Clearly marked with the brand, grade, Working Load Limit, size, CE marking, and traceability code.
The safety bolt carries markings including manufacturer ID, traceability code, and grade for quality assurance.

Videos

Bow Shackle No 855

Stock No.	WLL (t) 6:1	Pin d1 (in)	Nominal Size d		Inner Width a* (in)	Inner Length c* (in)	Bow Width e (in)	Eye Outer d2 (in)	Weight (lb)
			(mm)	(in)
										A085513	2.0	0.63	13	1/2”	0.83	1.85	1.30	1.30	0.93
										A085516	3.25	0.75	16	5/8”	1.06	2.36	1.65	1.57	1.54
										A085519	4.75	0.87	19	3/4”	1.22	2.80	1.93	1.89	2.65
										A085522	6.5	0.98	22	7/8”	1.46	3.31	2.36	2.05	3.75
										A085525	8.5	1.10	25	1”	1.69	3.74	2.68	2.36	5.69
										A085528	9.5	1.26	28	1 1/8”	1.81	4.25	2.91	2.52	7.50
										A085532	12.0	1.38	32	1 1/4”	2.05	4.69	3.27	2.83	10.6
										A085535	13.5	1.50	35	1 3/8”	2.24	5.20	3.50	2.99	15.4
										A085538	17.0	1.65	38	1 1/2”	2.36	5.75	3.86	3.31	19.8
										A085545	25.0	1.97	45	1 3/4”	2.91	7.01	5.00	4.13	33.0
										A085552	35.0	2.24	50	2”	3.27	7.76	5.43	4.41	46.2
										A085564	55.0	2.76	65	2 1/2”	4.13	10.2	7.09	5.71	85.9

Stock No.	WLL (t) 6:1	Pin d1 (mm)	Nominal Size d		Inner Width a* (mm)	Inner Length c* (mm)	Bow Width e (mm)	Eye Outer d2 (mm)	Weight (kg)
			(mm)	(in)
										A085513	2.0	16	13	1/2”	21	47	33	33	0.42
										A085516	3.25	19	16	5/8”	27	60	42	40	0.70
										A085519	4.75	22	19	3/4”	31	71	49	48	1.20
										A085522	6.5	25	22	7/8”	37	84	60	52	1.70
										A085525	8.5	28	25	1”	43	95	68	60	2.58
										A085528	9.5	32	28	1 1/8”	46	108	74	64	3.40
										A085532	12.0	35	32	1 1/4”	52	119	83	72	4.80
										A085535	13.5	38	35	1 3/8”	57	132	89	76	7.00
										A085538	17.0	42	38	1 1/2”	60	146	98	84	9.00
										A085545	25.0	50	45	1 3/4”	74	178	127	105	15.00
										A085552	35.0	57	50	2”	83	197	138	112	21.00
										A085564	55.0	70	65	2 1/2”	105	260	180	145	39.00

* Forging tolerance: +/- 5% on inside width/length.

Split pin included

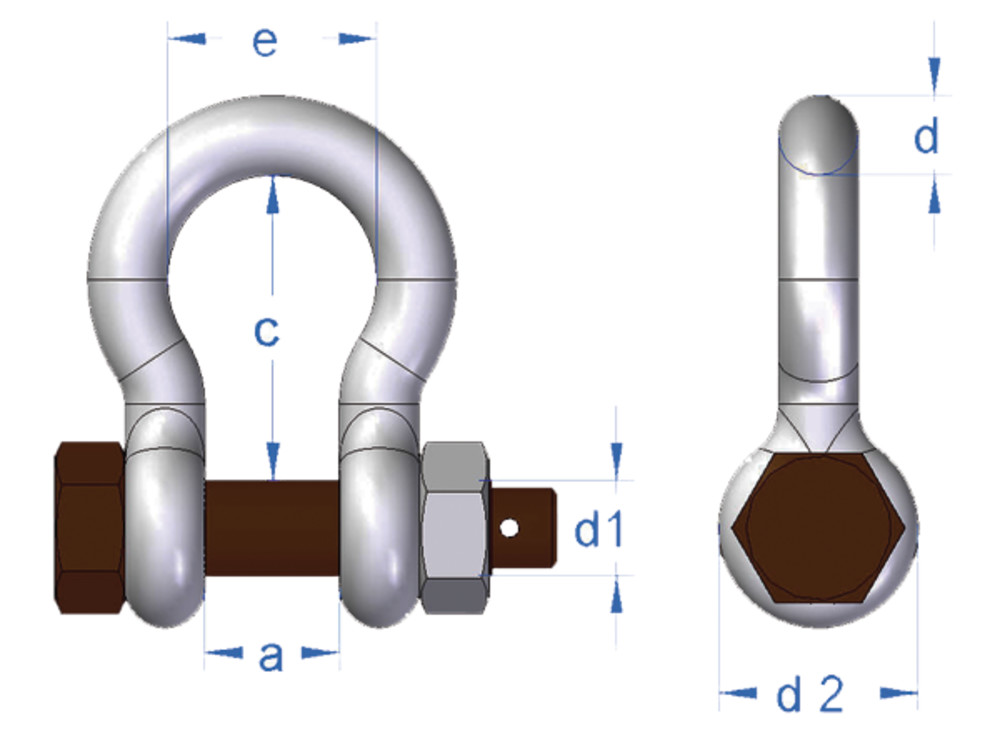

Diagram Images
