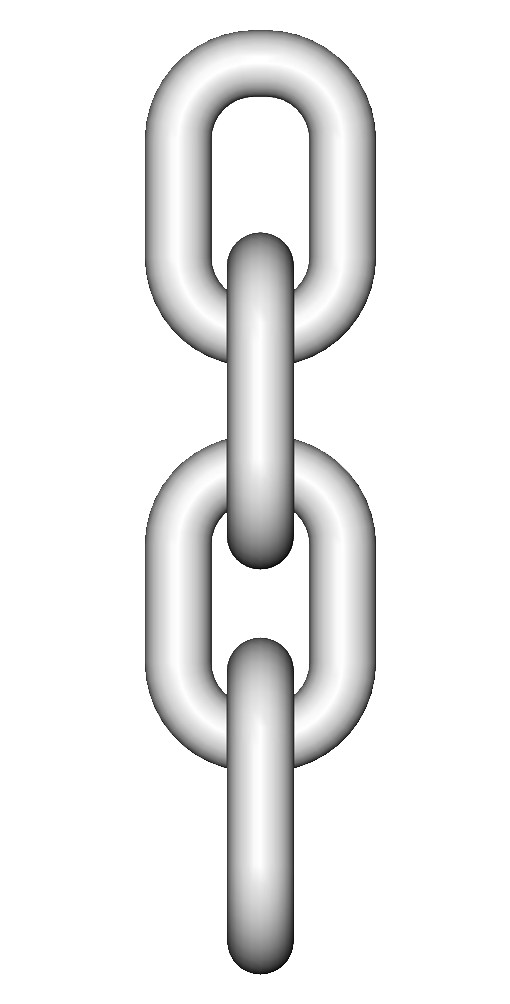

Illustration of three metal chain links connected vertically, symbolizing strength and connection.

Gunnebo Industries Chain KLZ HDG

SKU: GRRR189 Category: Chain & Accessories

Product details

High tensile steel.
Hardened and tempered.
Grade 8/80.
Temperature range -40°F to 392°F (-40°C to 200°C).
Design Factor 4:1.
Standards: EN 818-2:2008 (material dim. Ø +10%), ISO 1461:2009, ASTM A391/A391M-07 2012 (material dim. Ø +10%), and applicable parts of NS9415:2009.

Chain KLZ HDG

Stock No.	Code	Dimensions (in)			Weight lb / foot	Min. Breaking Load (lb)	Delivery Length
		d	P	w1
								ZG802306	KLZ-6-8 HDG	0.25	0.70	0.35	2.20	10160	3.28 x 328 ft
								ZG802307	KLZ-8-8 HDG	0.34	0.94	0.44	3.74	18000	3.28 x 328 ft
								ZG802308	KLZ-10-8 HDG	0.43	1.18	0.56	5.73	28400	3.28 x 328 ft
								ZG802309	KLZ-13-8 HDG	0.56	1.53	0.75	9.92	48000	3.28 x 328 ft
								ZG802310	KLZ-16-8 HDG	0.68	1.88	0.90	14.7	72400	3.28 x 328 ft

Stock No.	Code	Dimensions (mm)			Weight kg / m	Minimum Breaking Load (kN)	Delivery Length
		d	P	w1
								ZG802306	KLZ-6-8 HDG	6.6	18	8.9	1.0	45.2	1 x 100 m
								ZG802307	KLZ-8-8 HDG	8.8	24	11.2	1.7	80.6	1 x 100 m
								ZG802308	KLZ-10-8 HDG	11.0	30	14.4	2.6	130	1 x 100 m
								ZG802309	KLZ-13-8 HDG	14.3	39	19.2	4.5	214	1 x 100 m
								ZG802310	KLZ-16-8 HDG	17.3	48	23.0	6.7	322	1 x 100 m
