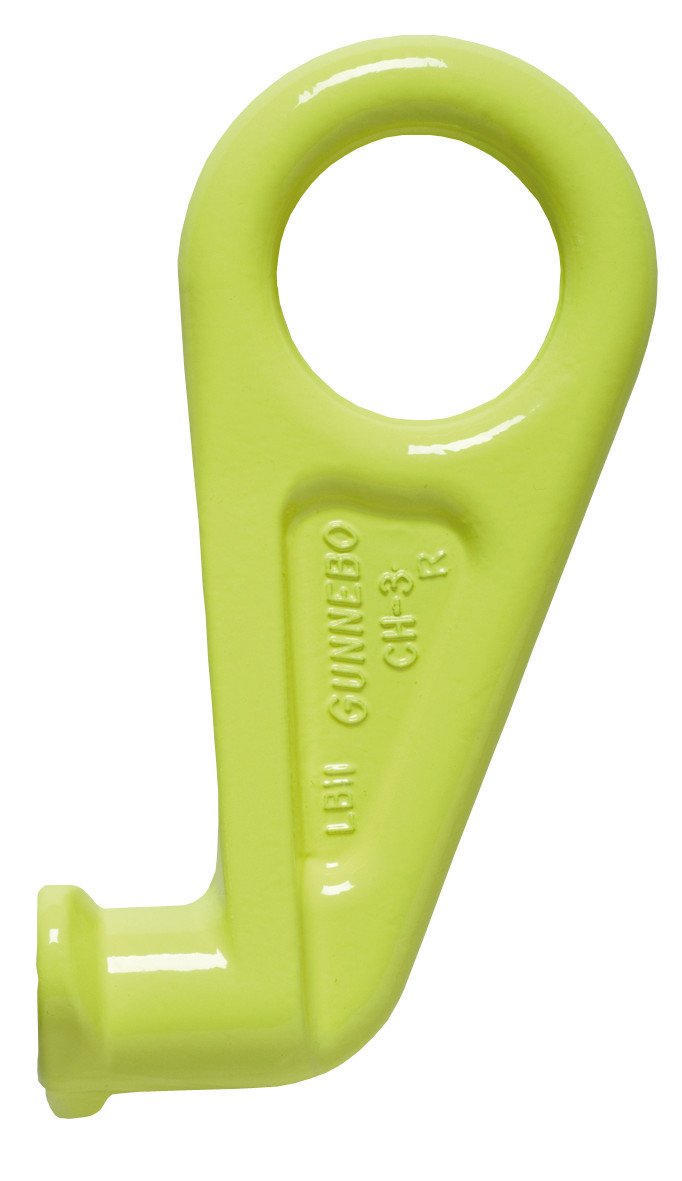

Yellow lifting hook with a circular eye, labeled Gunnebo CH-3 R.

Gunnebo Industries Container Hook CH - Image 2

Gunnebo Industries Container Hook CH - Image 3

Gunnebo Industries Container Hook CH

SKU: GRRR471 Category: Hooks & Swivels

Product details

Designed specifically for lifting containers from their lower fittings.

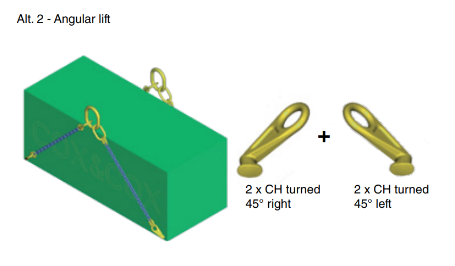

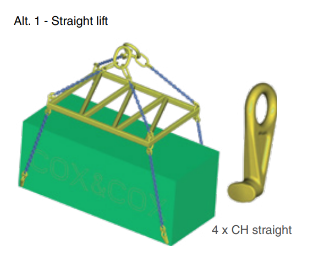

Allows for both straight and angular (45-degree) positioning at the bottom of the load.
4:1 Design Factor.

Videos

Container Hook CH

Made for lifting containers in their lower fittings.

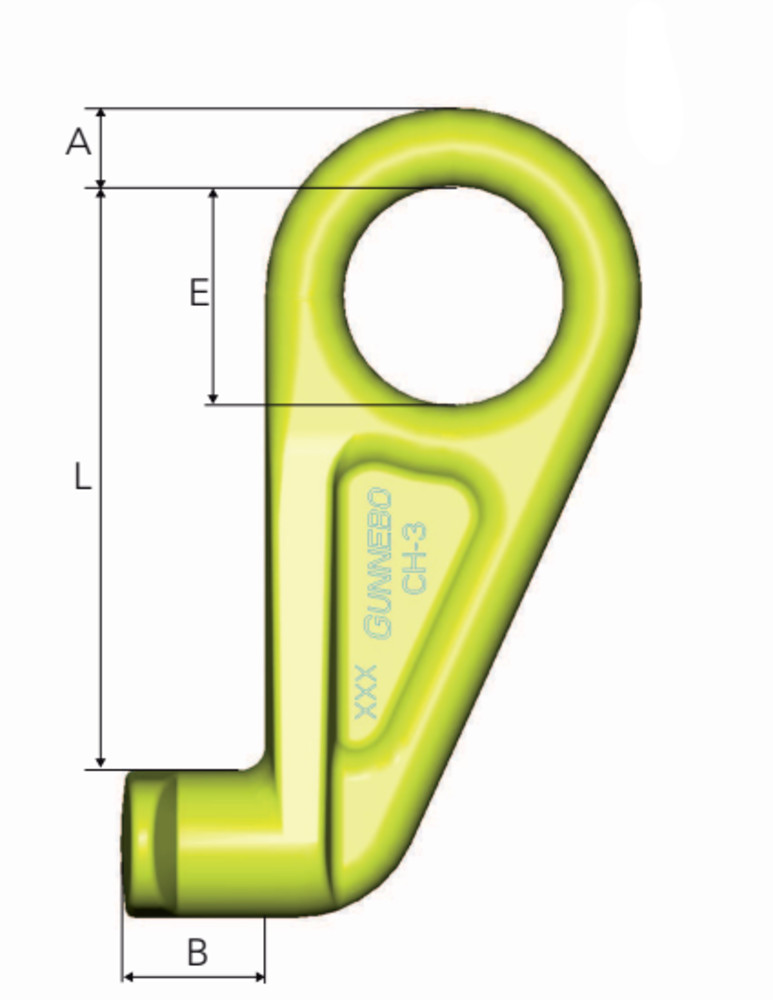

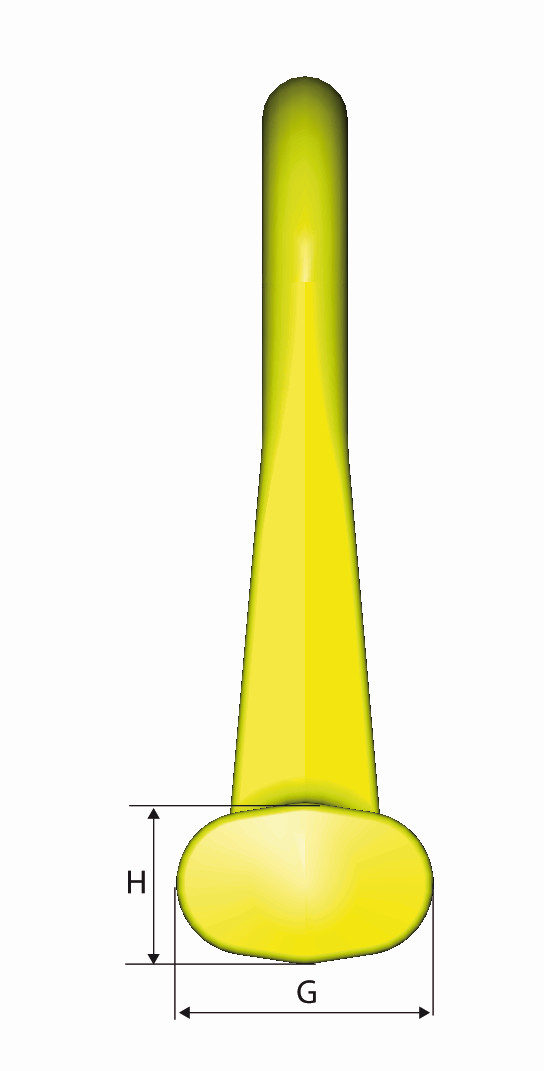

Stock No.	Code	WLL (lb)	Dimensions (in)						Weight (lb)
			A	L	E	B	H	G
										Z101220	CH-3	27,550	.98	7.36	2.76	1.81	1.85	2.95	8.378
										Z101221	CH-3. 45° left	27,550	.98	7.36	2.76	1.81	1.85	2.95	8.378
										Z101219	CH-3. 45° right	27,550	.98	7.36	2.76	1.81	1.85	2.95	8.378

Stock No.	Code	WLL (t)	Dimensions (mm)						Weight (kg)
			A	L	E	B	H	G
										Z101220	CH-3	12.5	25	187	70	46	47	75	3.8
										Z101221	CH-3. 45° left	12.5	25	187	70	46	47	75	3.8
										Z101219	CH-3. 45° right	12.5	25	187	70	46	47	75	3.8

4:1 Design Factor.
