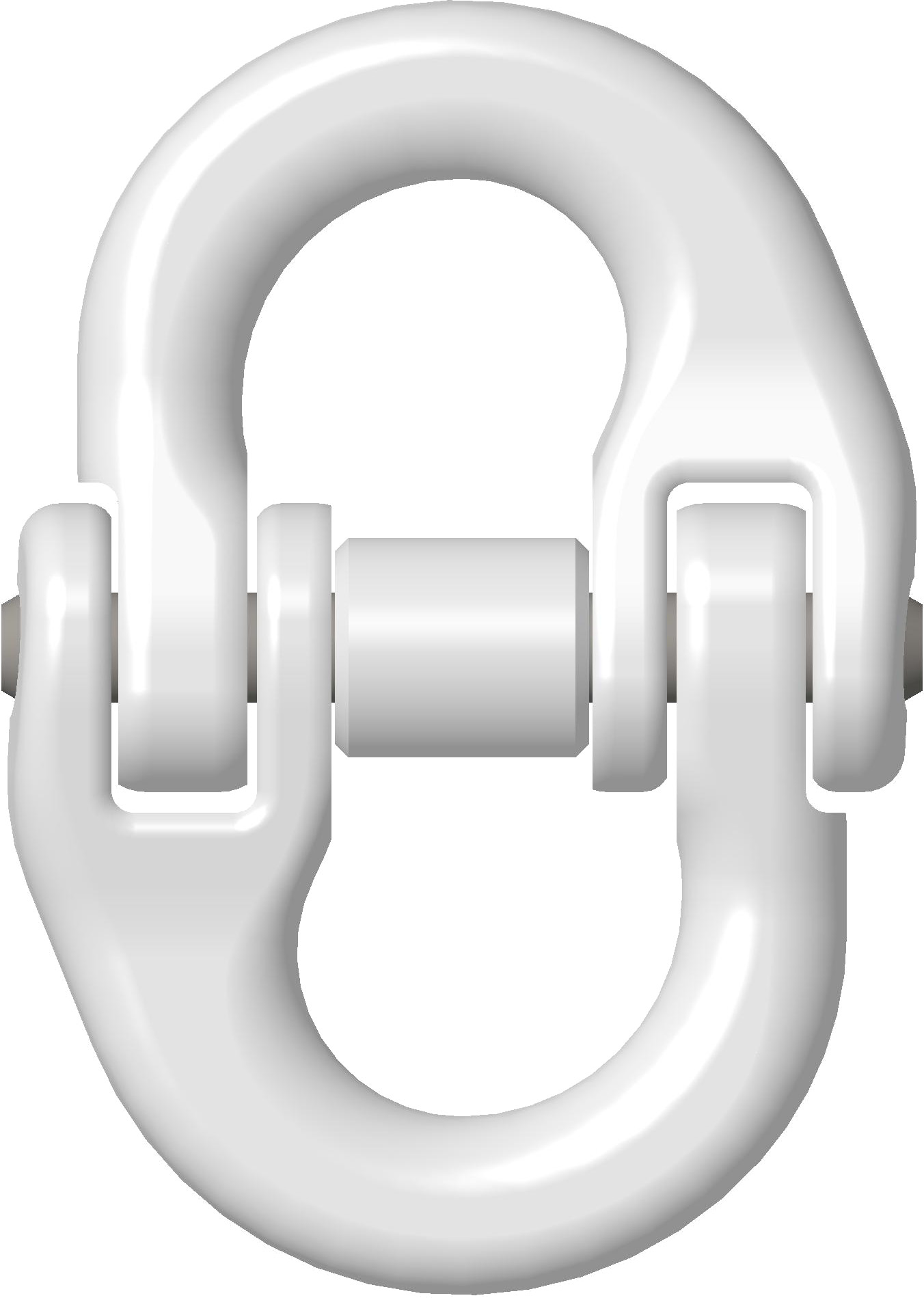

White chain link illustration with a detailed connector, symbolizing strength and connection.

Gunnebo Industries Coupling Link G HDG

SKU: GRRR275 Category: Chain & Accessories

Product details

Hot-dip galvanized coating for increased service lifetime.
Well-suited for maritime environments.
High tensile steel, Quenched & Tempered.
Grade 8/80.
Temperature range -40°F to 392°F (-40°C to 200°C).
Design Factor 4:1.
Meets EN 1677-1:2008, EN 1677-3:2008, and ISO 1461:2009 requirements.

Coupling Link G HDG

Stock No.	Code	WLL (lb)*	Dimensions (in)					Weight (lb)
			L	B	F	A	C
									ZG100821	G-6-8 HDG	2,500	1.77	.59	.28	.31	.67	.22
									ZG100822	G-8-8 HDG	4,500	2.20	.71	.35	.43	.87	.44
									ZG100823	G-10-8 HDG	7,100	2.68	.98	.43	.51	1.02	.66
									ZG100824	G-13-8 HDG	12,000	3.50	1.18	.59	.63	1.30	1.54
									ZG100825	G-16-8 HDG	18,000	4.00	1.42	.75	.79	1.57	2.65

Stock No.	Code	WLL (t)*	Dimensions (mm)					Weight (kg)
			L	B	F	A	C
									ZG100821	G-6-8 HDG	1.12	45	15	7	8	17	0.1
									ZG100822	G-8-8 HDG	2.0	56	18	9	11	22	0.2
									ZG100823	G-10-8 HDG	3.2	68	25	11	13	26	0.3
									ZG100824	G-13-8 HDG	5.4	89	30	15	16	33	0.7
									ZG100825	G-16-8 HDG	8.2	102	36	19	20	40	1.2

4:1 Design Factor

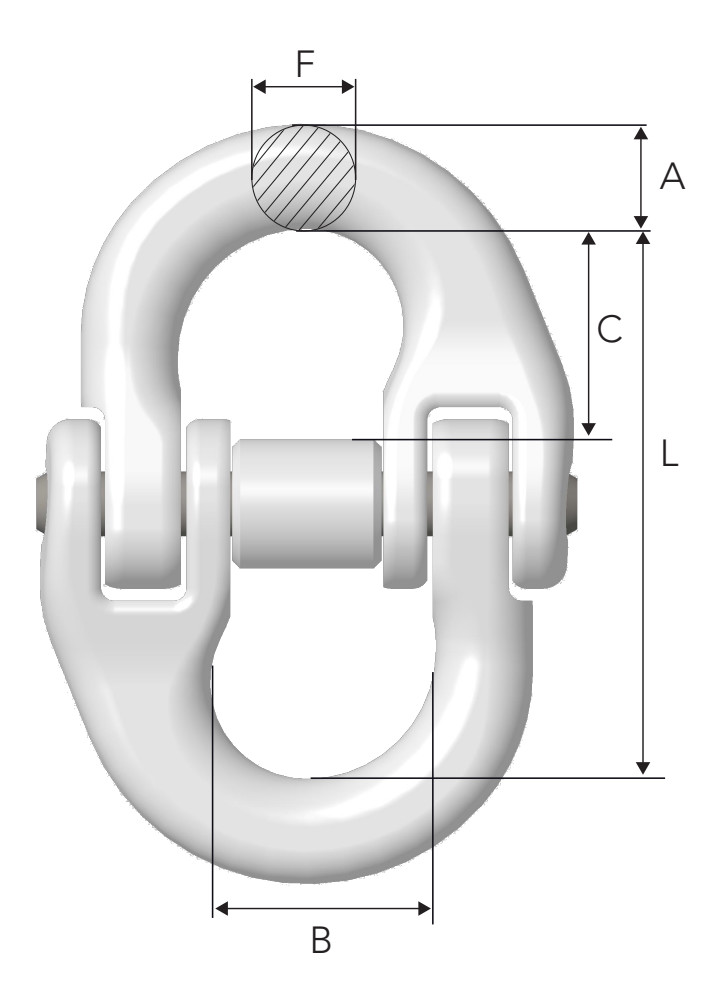

Diagram Images
