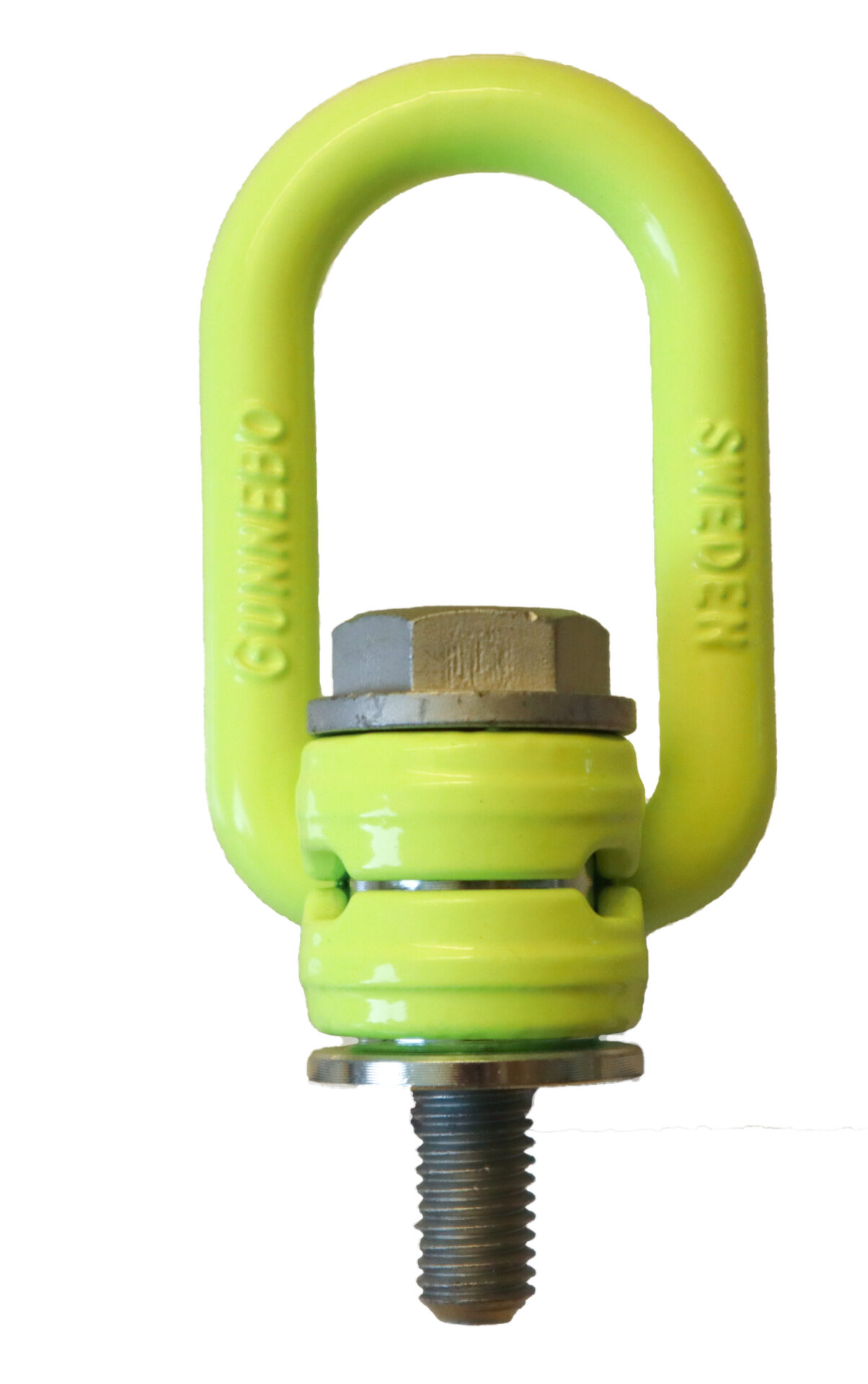

Gunnebo Industries De-Centered Lifting Point DLP

Gunnebo Industries De-Centered Lifting Point DLP - Image 2

Gunnebo Industries De-Centered Lifting Point DLP

SKU: GRRRRR6 Category: Lifting Points

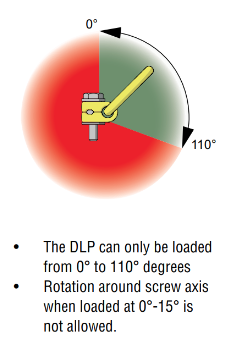

Product details

Compact design makes the DLP ideal for narrow spaces, such as corners or edge position.
Makes rigging fast and easy, and helps prevent damage to the load due to impacts from the hook.
Closed oblong link is equipped with a 'stay up' function for easy on-hooking, for sizes up to M24, when there is limited space.
Designed to be folded over the housing when idle, allowing the lifting point to be almost completely stowed away when not in use.
Hexagon bolt is RFID prepared, making it easy to assemble and disassemble with a wrench.
Bolt clearly marked with Working Load Limit, mounting torque, and manufacturer ID.
CE marked.
Part of the full GrabiQ system, from master link to lifting point.

Videos

De-Centered Lifting Point DLP

Stock No.	Length (in)	Code	Dimensions (in)											Weight (lb)***
			B	C	D	E	F	G	L1	M	X	Y	Z
															Standard Bolt Length (Length = L)
															Z102208	0.51	DLP-M8 x 1.25	1.38	1.88	0.39	1.54	0.55	0.39	3.07	0.31	1.18	2.16	1.02	0.66
															Z102210	0.51	DLP -M10 x 1.5	1.38	1.88	0.39	1.54	0.55	0.39	3.07	0.39	1.18	2.16	1.02	0.66
															Z102212	0.90	DLP -M12 x 1.75	1.38	1.88	0.47	2.01	0.79	0.55	3.58	0.47	1.73	2.32	1.25	1.10
															Z102216	0.90	DLP-M16 x 2	1.38	1.88	0.47	2.01	0.79	0.55	3.58	0.62	1.73	2.32	1.25	1.10
															Z102220	1.33	DLP-M20 x 2.5	2.13	3.46	0.70	2.8	1.1	0.70	5.70	0.78	2.28	3.54	1.88	3.52
															Z102224	1.33	DLP-M24 x 3	2.13	3.46	0.70	2.8	1.1	0.70	5.70	0.94	2.28	3.54	1.88	3.74
															Z102230	2.08	DLP-M30 x 3.5	3.23	3.70	1.02	4.09	1.54	1.06	7.16	1.18	3.46	4.80	2.95	11.0
															Z102236	2.08	DLP-M36 x 4	3.23	3.70	1.02	4.09	1.54	1.06	7.16	1.41	3.46	4.80	2.95	11.4
															Z102242	2.87	DLP-M42 x 4.5	3.94	4.09	1.41	5.35	2.13	1.33	8.50	1.65	4.44	6.14	4.33	25.5
															Z102248	2.87	DLP-M48 x 5	3.94	4.05	1.41	5.35	2.13	1.33	8.50	1.88	4.44	6.14	4.33	26.2
															Long Bolt Length** (Length = L2)
															Z1022080L	3.83	DLP-M8 x 1.25	1.38	1.88	0.39	1.54	0.55	0.39	3.07	0.31	1.18	2.16	1.02	0.66
Z1022100L	3.83	DLP -M10 x 1.5												1.38	1.88	0.39	1.54	0.55	0.39	3.07	0.39	1.18	2.16	1.02	0.66
Z1022120L	4.64	DLP -M12 x 1.75	1.38	1.88	0.47	2.01	0.79	0.55	3.58	0.47	1.73	2.32	1.25	1.10
Z1022160L	6.22	DLP-M16 x 2	1.38	1.88	0.47	2.01	0.79	0.55	3.58	0.62	1.73	2.32	1.25	1.10
Z1022200L	7.79	DLP-M20 x 2.5	2.13	3.46	0.70	2.8	1.1	0.70	5.70	0.78	2.28	3.54	1.88	3.52
Z1022240L	9.37	DLP-M24 x 3	2.13	3.46	0.70	2.8	1.1	0.70	5.70	0.94	2.28	3.54	1.88	3.74
Z1022300L	11.6	DLP-M30 x 3.5	3.23	3.70	1.02	4.09	1.54	1.06	7.16	1.18	3.46	4.80	2.95	11.0
Z1022360L	11.6	DLP-M36 x 4	3.23	3.70	1.02	4.09	1.54	1.06	7.16	1.41	3.46	4.80	2.95	11.4
Z1022420L	11.5	DLP-M42 x 4.5	3.94	4.09	1.41	5.35	2.13	1.33	8.50	1.65	4.44	6.14	4.33	25.5
Z1022480L	11.5	DLP-M48 x 5	3.94	4.05	1.41	5.35	2.13	1.33	8.50	1.88	4.44	6.14	4.33	26.2

Stock No.	Length (mm)	Code	Dimensions (mm)											Weight (kg)***
			B	C	D	E	F	G	L1	M	X	Y	Z
															Standard Bolt Length (Length = L)
															Z102208	13	DLP-M8 x 1.25	35	48	10	39	14	10	78	8	30	55	26	0.3
															Z102210	13	DLP -M10 x 1.5	35	48	10	39	14	10	78	10	30	55	26	0.3
															Z102212	23	DLP -M12 x 1.75	35	48	12	51	20	14	91	12	44	59	32	0.5
															Z102216	23	DLP-M16 x 2	35	48	12	51	20	14	91	16	44	59	32	0.5
															Z102220	34	DLP-M20 x 2.5	54	88	18	71	28	18	145	20	58	90	48	1.6
															Z102224	34	DLP-M24 x 3	54	88	18	71	28	18	145	24	58	90	48	1.7
															Z102230	53	DLP-M30 x 3.5	82	94	26	104	39	27	182	30	88	122	75	5.0
															Z102236	53	DLP-M36 x 4	82	94	26	104	39	27	182	36	88	122	75	5.2
															Z102242	73	DLP-M42 x 4.5	100	104	36	136	54	34	216	42	113	156	110	11.6
															Z102248	73	DLP-M48 x 5	100	103	36	136	54	34	216	48	113	156	110	11.9
															Long Bolt Length** (Length = L2)
															Z1022080L	97.5	DLP-M8 x 1.25	35	48	10	39	14	10	78	8	30	55	26	0.3
Z1022100L	97.5	DLP -M10 x 1.5												35	48	10	39	14	10	78	10	30	55	26	0.3
Z1022120L	118	DLP -M12 x 1.75	35	48	12	51	20	14	91	12	44	59	32	0.5
Z1022160L	158	DLP-M16 x 2	35	48	12	51	20	14	91	16	44	59	32	0.5
Z1022200L	198	DLP-M20 x 2.5	54	88	18	71	28	18	145	20	58	90	48	1.6
Z1022240L	238	DLP-M24 x 3	54	88	18	71	28	18	145	24	58	90	48	1.7
Z1022300L	295	DLP-M30 x 3.5	82	94	26	104	39	27	182	30	88	122	75	5.0
Z1022360L	295	DLP-M36 x 4	82	94	26	104	39	27	182	36	88	122	75	5.2
Z1022420L	293	DLP-M42 x 4.5	100	104	36	136	54	34	216	42	113	156	110	11.6
Z1022480L	293	DLP-M48 x 5	100	103	36	136	54	34	216	48	113	156	110	11.9
