Gunnebo Industries Dee Shackle No 835

Gunnebo Industries Dee Shackle No 835 - Image 2

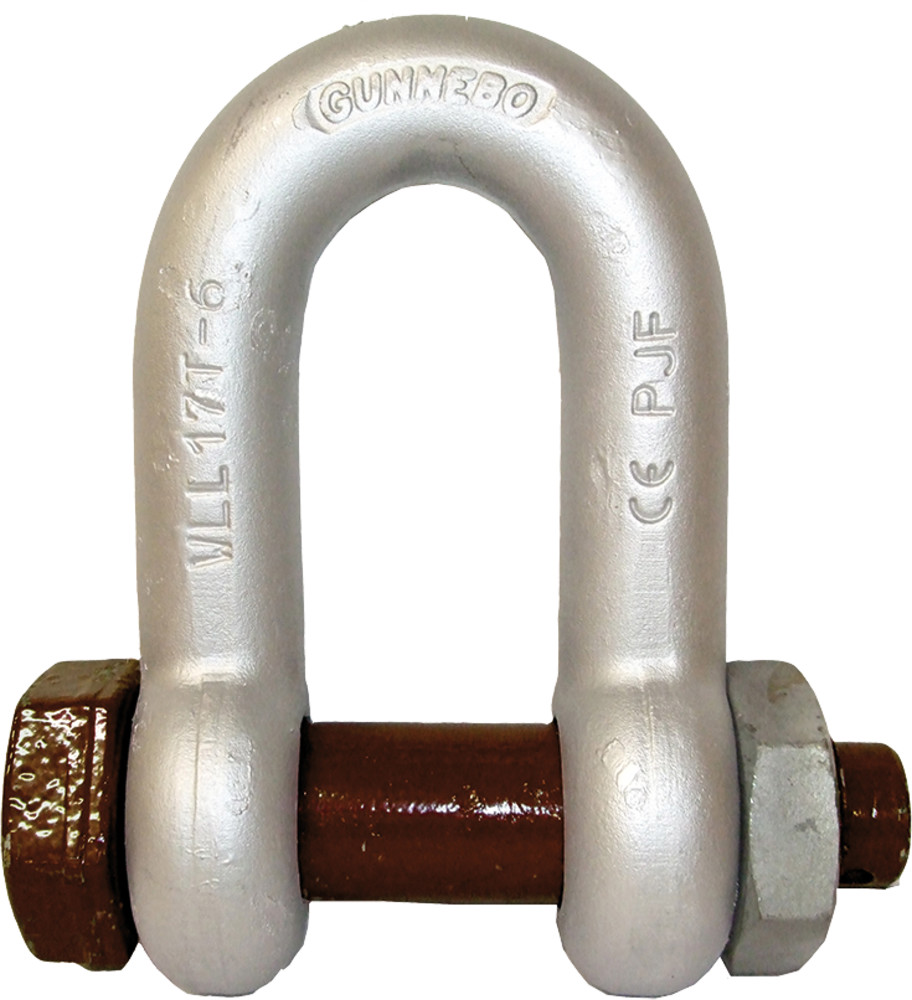

Gunnebo Industries Dee Shackle No 835

SKU: GRRR102 Category: Shackles

Product details

Made from high tensile carbon steel, quenched and tempered for enhanced strength and durability.
All parts are hot-dip galvanized for corrosion protection.
Grade 6.
6:1 Design Factor.
Rated for temperatures ranging from -40° F (-40° C) to 392°F (200° C).
Complies with EN 10204-3.1, DNVGL-ST-E271-2.7-1, and E273-2.7-3 Type Approval Certification.
Meets EN 13889 and US Federal Specification RR-C-271 standards.

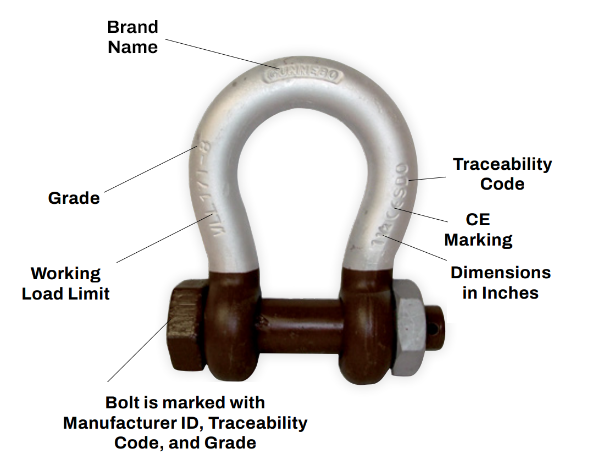

Clearly marked with the brand, grade, Working Load Limit, size, CE marking, and traceability code.
The safety bolt is marked with a manufacturer ID, traceability code, and grade, ensuring authenticity and compliance.

Videos

Dee Shackle No 835

Stock No.	WLL (t) 6:1	Pin d1 (in)	Nominal Size d		Inner Width a* (in)	Inner Length c* (in)	Eye Outer d2 (in)	Weight (lb)
			(mm)	(in)
									A083516	3.25	0.75	16	5/8”	1.06	2.01	1.57	1.32
									A083519	4.75	0.87	19	3/4”	1.22	2.36	1.89	2.43
									A083522	6.5	0.98	22	7/8”	1.46	2.80	2.05	3.31
									A083525	8.5	1.10	25	1”	1.69	3.19	2.36	4.85
									A083528	9.5	1.26	28	1 1/8”	1.81	3.54	2.52	6.83
									A083532	12.0	1.38	32	1 1/4”	2.05	3.94	2.83	9.26
									A083535	13.5	1.50	35	1 3/8”	2.24	4.37	2.99	12.4
									A083538	17.0	1.65	38	1 1/2”	2.36	4.80	3.31	16.5
									A083545	25.0	1.97	45	1 3/4”	2.91	5.87	4.13	28.7

Stock No.	WLL (t) 6:1	Pin d1 (mm)	Nominal Size d		Inner Width a* (mm)	Inner Length c* (mm)	Eye Outer d2 (mm)	Weight (kg)
			(mm)	(in)
									A083516	3.25	19	16	5/8”	27	51	40	0.60
									A083519	4.75	22	19	3/4”	31	60	48	1.10
									A083522	6.5	25	22	7/8”	37	71	52	1.50
									A083525	8.5	28	25	1”	43	81	60	2.20
									A083528	9.5	32	28	1 1/8”	46	90	64	3.10
									A083532	12.0	35	32	1 1/4”	52	100	72	4.20
									A083535	13.5	38	35	1 3/8”	57	111	76	5.60
									A083538	17.0	42	38	1 1/2”	60	122	84	7.50
									A083545	25.0	50	45	1 3/4”	74	149	105	13.00

* Forging tolerance: +/- 5% on inside width/length.

Split pin included

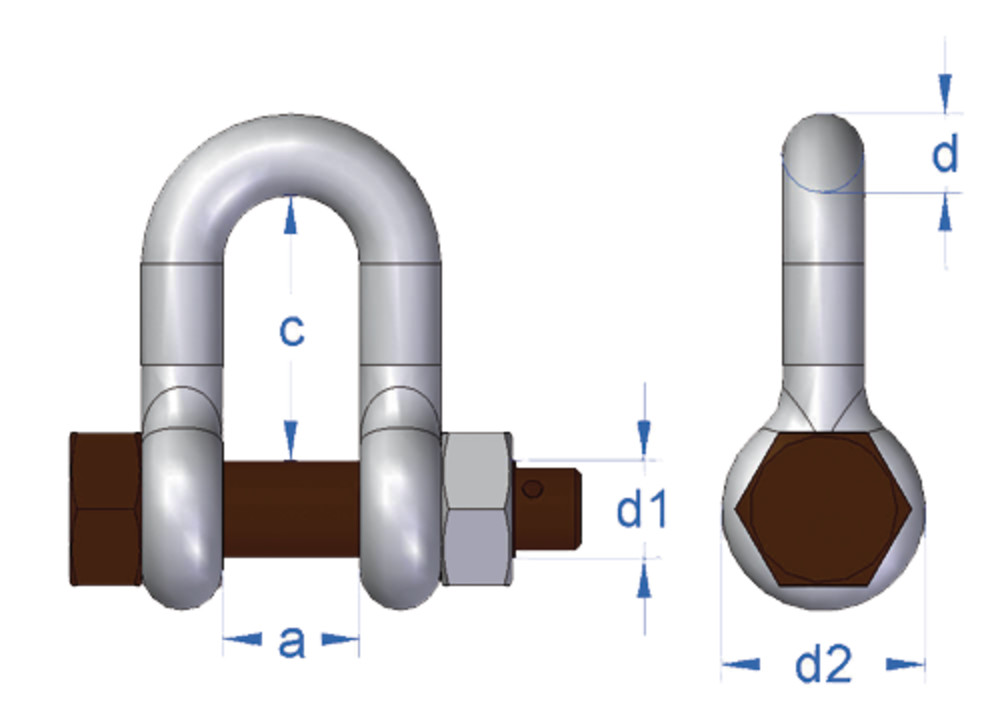

Diagram Images
