Gunnebo Industries GrabiQ Chain KLA, Grade 10 (400)

SKU: GRRR318 Category:

Product details

  • Short link lifting chain.
  • Hardened and tempered.
  • Maximum in-service temperature 400° C.
  • Painted blue.
  • Design Factor 4:1.
  • Marked with '8+G'.
  • Meets EN 818+2:2008, ISO 1461:2009, and applicable parts of NS9415:2009 requirements.

Videos

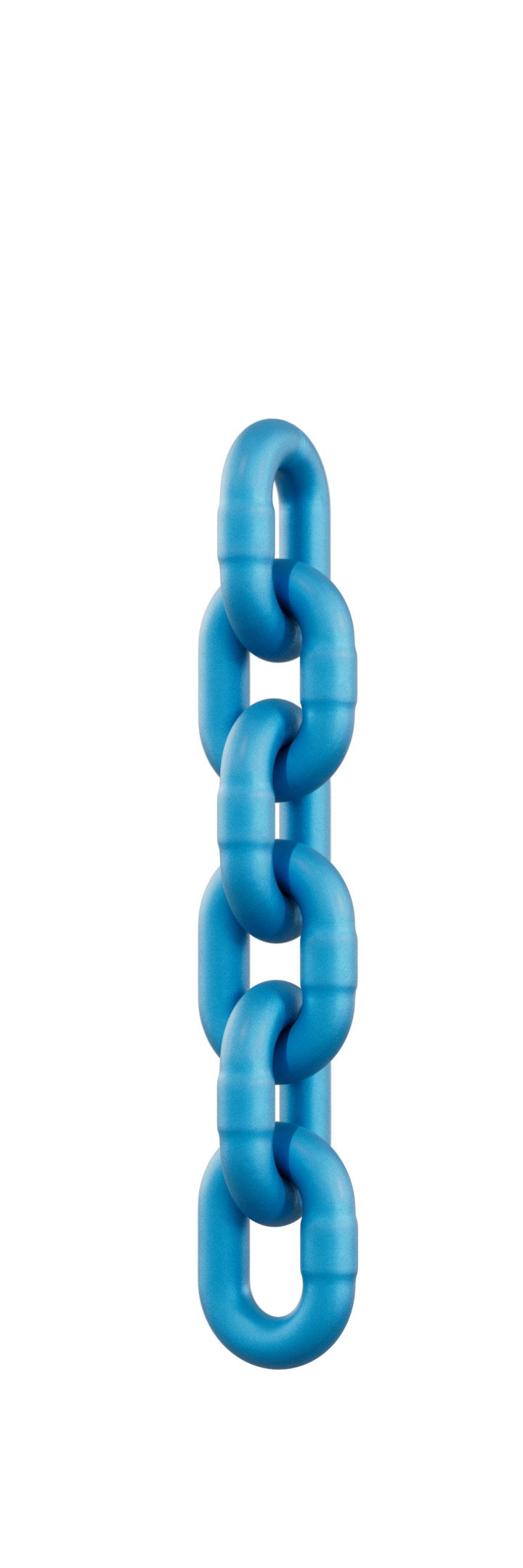

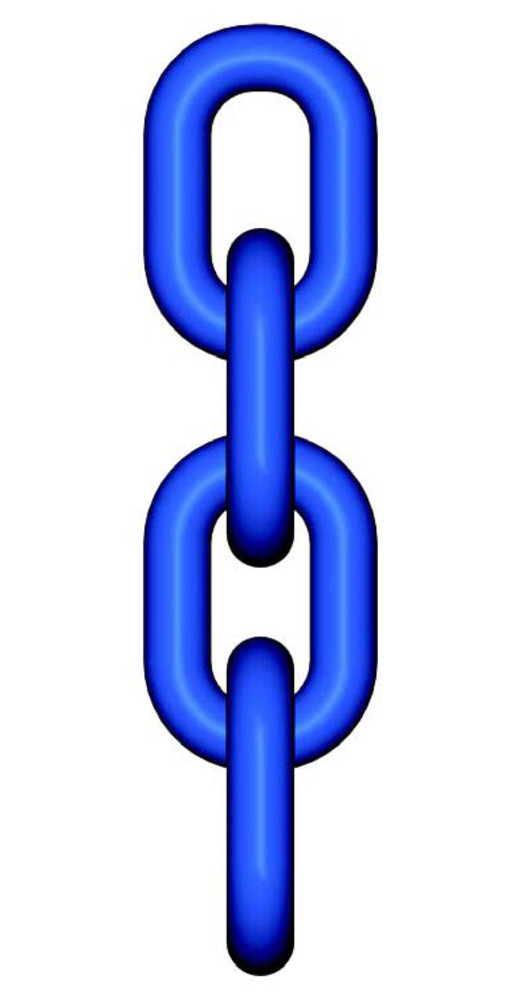

GrabiQ Chain KLA, Grade 10 (400)

Short link lifting chain

Stock No.Chain LengthCodeWLL (lb)Dimensions (in)Weight lb / footMPF (lb)Breaking Force (lb)
d nom.Pw1
Z802306		1 x 200 mKLA 6-10 (400)33060.250.700.35.67827213218
Z802307		1 x 200 mKLA 8-10 (400)55000.340.940.441.141416222929
Z802308		1 x 100 mKLA 10-10 (400)88000.431.180.561.752203035518
Z802309		1 x 100 mKLA 13-10 (400)148000.561.530.753.023731660246
Z802310		1 x 100 mKLA 16-10 (400)220400.681.880.904.505642490369
Stock No.Chain LengthCodeWLL (t)Dimensions (mm)Weight kg / mMPF (kN)Breaking Force (kN)
d nom.Pw1
Z802306		1 x 200 mKLA 6-10 (400)1.56.6188.91.036.858.9
Z802307		1 x 200 mKLA 8-10 (400)2.58.82411.21.763102
Z802308		1 x 100 mKLA 10-10 (400)4.011.03014.42.698158
Z802309		1 x 100 mKLA 13-10 (400)6.714.33919.24.5166268
Z802310		1 x 100 mKLA 16-10 (400)10.017.34823.06.7251402

Fulfills the requirements in: EN 818-2:2008 (WLL+25%, material dimension Ø +10%)

Note: This chain is marked with ”8+” in addition to the marking required by the machine directive

For larger sizes, see GrabiQ Grade 10 (200) or Classic Grade 8.
