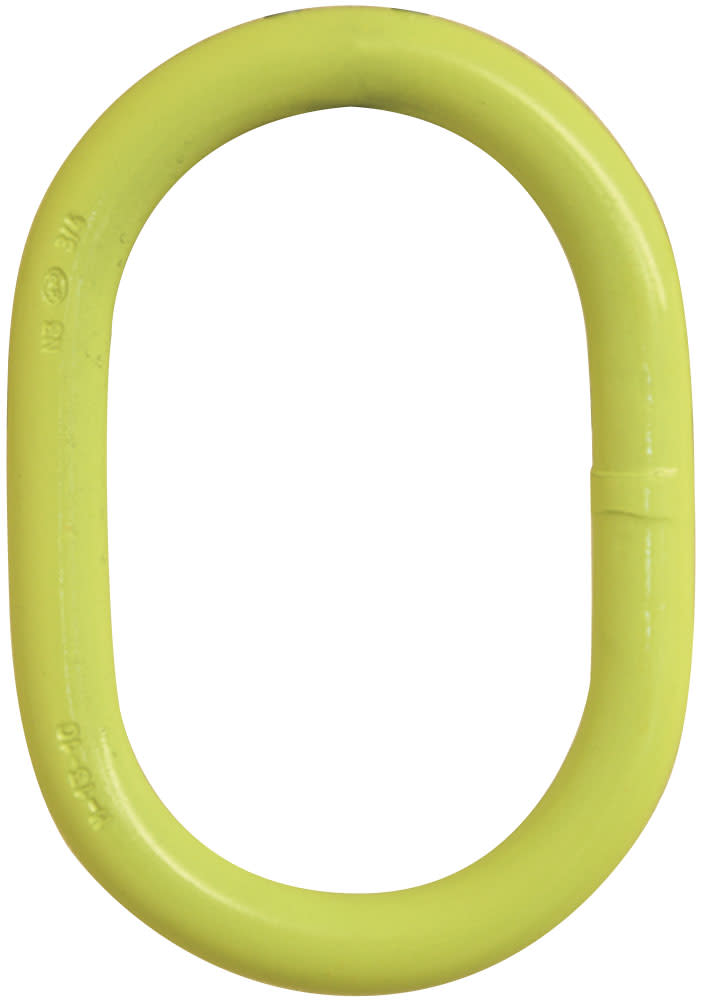

Yellow oval metal link against white background, used in heavy-duty applications.

Gunnebo Industries Grade 100 Welded Master Link M

SKU: GRRRR38 Category:

Product details

  • Clearly marked with the product type (M indicating a single-type master link), size designation, traceability code, and country of origin.
  • Marked H32 (Gunnebo Industries manufacturing ID and third-party audit by BG in Germany).
  • Meets EN 1677:2008 (WLL +25%), ASTM A952/A952M, AS 3775:2014, AS 3776:2015, and DNV 2.7-1 standards.
  • 5:1 Design Factor.
  • Fatigue rated to at least 20,000 cycles at 1.5 times the Working Load Limit.
  • Designed for use with chain, wire or synthetic rope. Applications with wire and synthetic rope generally require a 5:1 Design Factor.
  • Fulfills or exceeds requirements in EN1677:2008, ASTM A952/A952M-02, AS 3775:2014 and AS 3776:2015.

Videos

Grade 100 Welded Master Link M

Stock No.CodeWLL (lb) 5:1Dimensions (in)Weight (lb)
EN 1677-4A-952/A952M AS 3775.2-2014LED
Z202622		M-2622-1090,36413.397.091.7728.7
Z203632		M-3632-10158,68814.768.272.3657.3
Z200100		M-100T-10220,40017.729.842.7694.8
Z203226		M-3226-1094,772102,70611.817.872”32.63
Z200125		M-125T-10*275,500275,50017.7210.243 1/8”125.66
Stock No.CodeWLL (t) 5:1Dimensions (mm)Weight (kg)
EN 1677-4A-952/A952M AS 3775.2-2014LED
Z202622		M-2622-1041.03401804512.9
Z203632		M-3632-1072.03752106026.3
Z200100		M-100T-10100.04502507042.7
Z203226		M-3226-1057.03502005520.7
Z200125		M-125T-10*125.0125.04502608057.5

5:1 Design Factor.

*Dimension L and E not according to EN 1677-4.
