Gunnebo Industries Master Link SKO (open)

SKU: GRRR139 Category: Chain & Accessories

Product details

For use with Grade 80 chain and the SK system.
Meets EN 1677:2008, ISO 8539:2009, ASTM A952/A952M, AS 3776:2015, and SANS 1595:2003 requirements.
Design Factor 4:1.

Master Link SKO (open)

Stock No.	Code	WLL (lb)*	Dimensions (in)				Weight (lb)
			L	E	G	K
								Z418683	SKO-7/8-8	4,500	3.90	1.97	.55	.59	.66
								Z418780	SKO-10-8	7,100	5.00	2.60	.71	.79	1.32
								Z419383	SKO-13-8	12,000	5.71	2.83	.87	.98	2.2
								Z419480	SKO-16-8	18,000	6.89	3.23	.98	1.18	3.31
								Z419587	SKO-18/20-8	28,300	8.03	4.13	1.18	1.42	6.39

Stock No.	Code	WLL (t)*	Dimensions (mm)				Weight (kg)
			L	E	G	K
								Z418683	SKO-7/8-8	2.0	99	50	14	15	0.3
								Z418780	SKO-10-8	3.2	127	66	18	20	0.6
								Z419383	SKO-13-8	5.4	145	72	22	25	1
								Z419480	SKO-16-8	8.2	175	82	25	30	1.5
								Z419587	SKO-18/20-8	12.8	204	105	30	36	2.9

4:1 Design Factor.

Fulfills requirements in: EN 1677:2008, ISO 8539:2009, ASTM A952/A952M and AS 3776:2015.

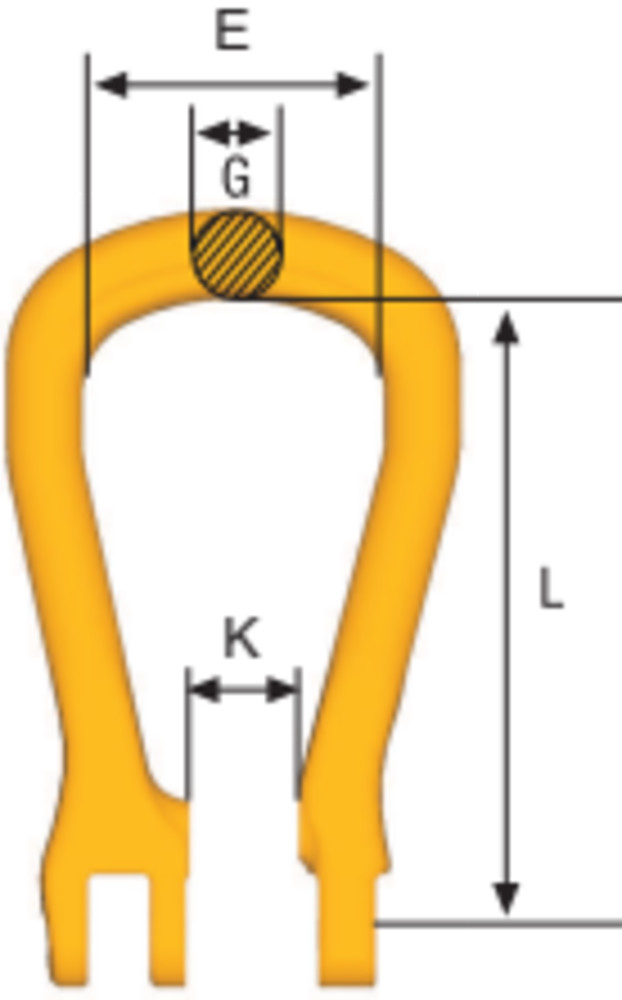

Diagram Images
