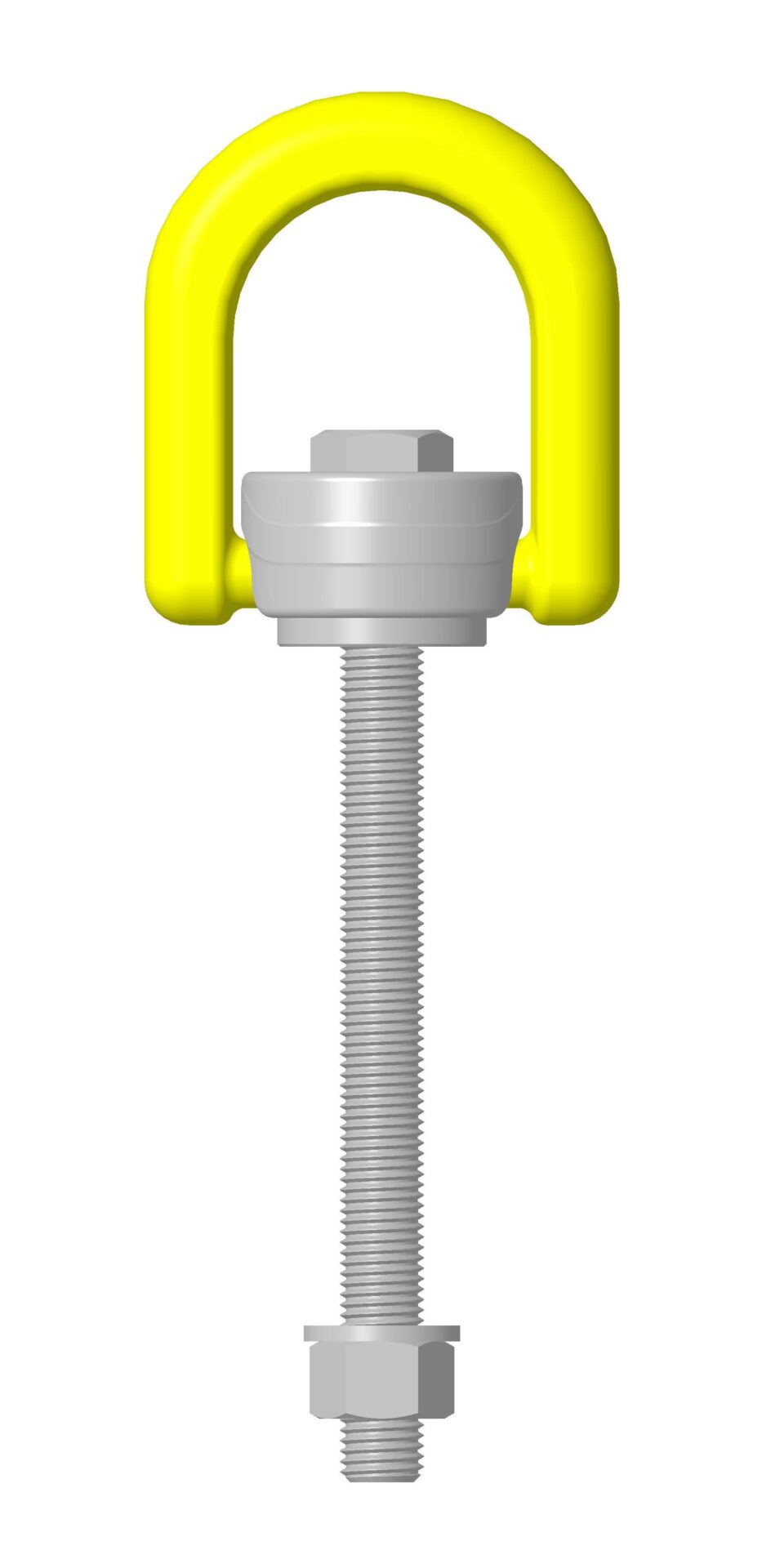

Gunnebo Industries RLP with UNC thread

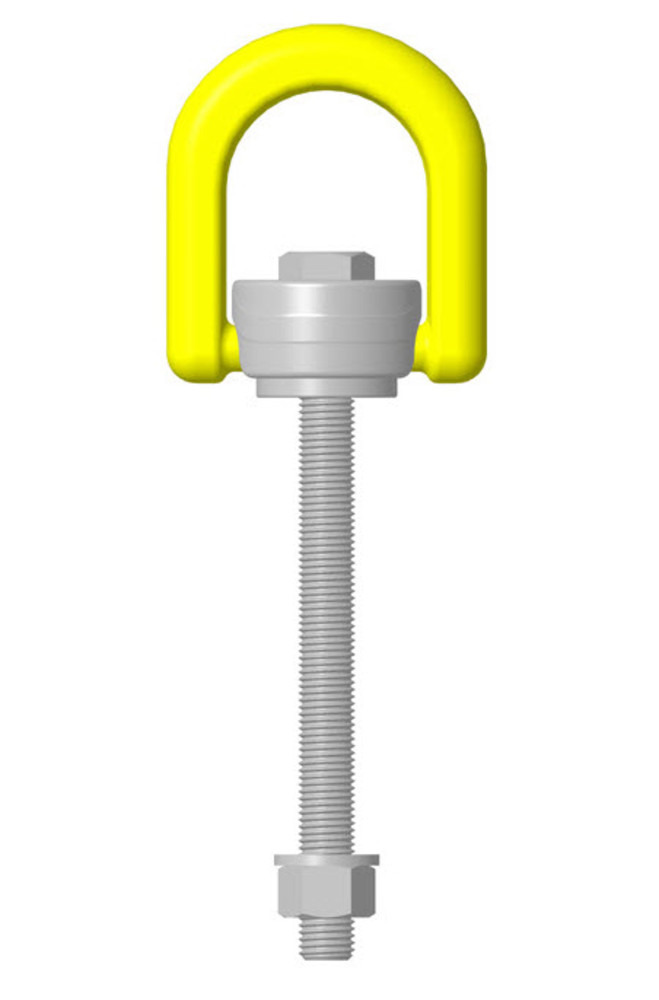

Gunnebo Industries RLP with UNC thread - Image 2
Gunnebo Industries RLP with UNC thread - Image 3
Gunnebo Industries RLP with UNC thread - Image 4

Gunnebo Industries RLP with UNC thread

SKU: GRRR194 Category:

Product details

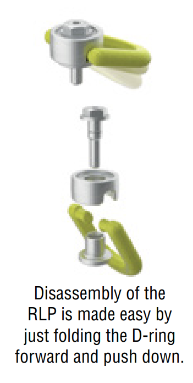

  • Dismountable D-ring to enable assembly of roundsling, master link, or hook directly onto the lifting point.
  • Easy disassembly by turning of D-ring (no tools required).
  • Long bolt supplied with nut and washer.
  • Weight calculated with standard bolt length.
  • Design Factor 4:1.
  • Bolt, nut, washer according to ISO898-1 Class 10.9.
  • Standard length and long length bolts are available as spare parts.

RLP with UNC thread

Stock No.Length (in)CodeDimensions (in)Weight (lb)***

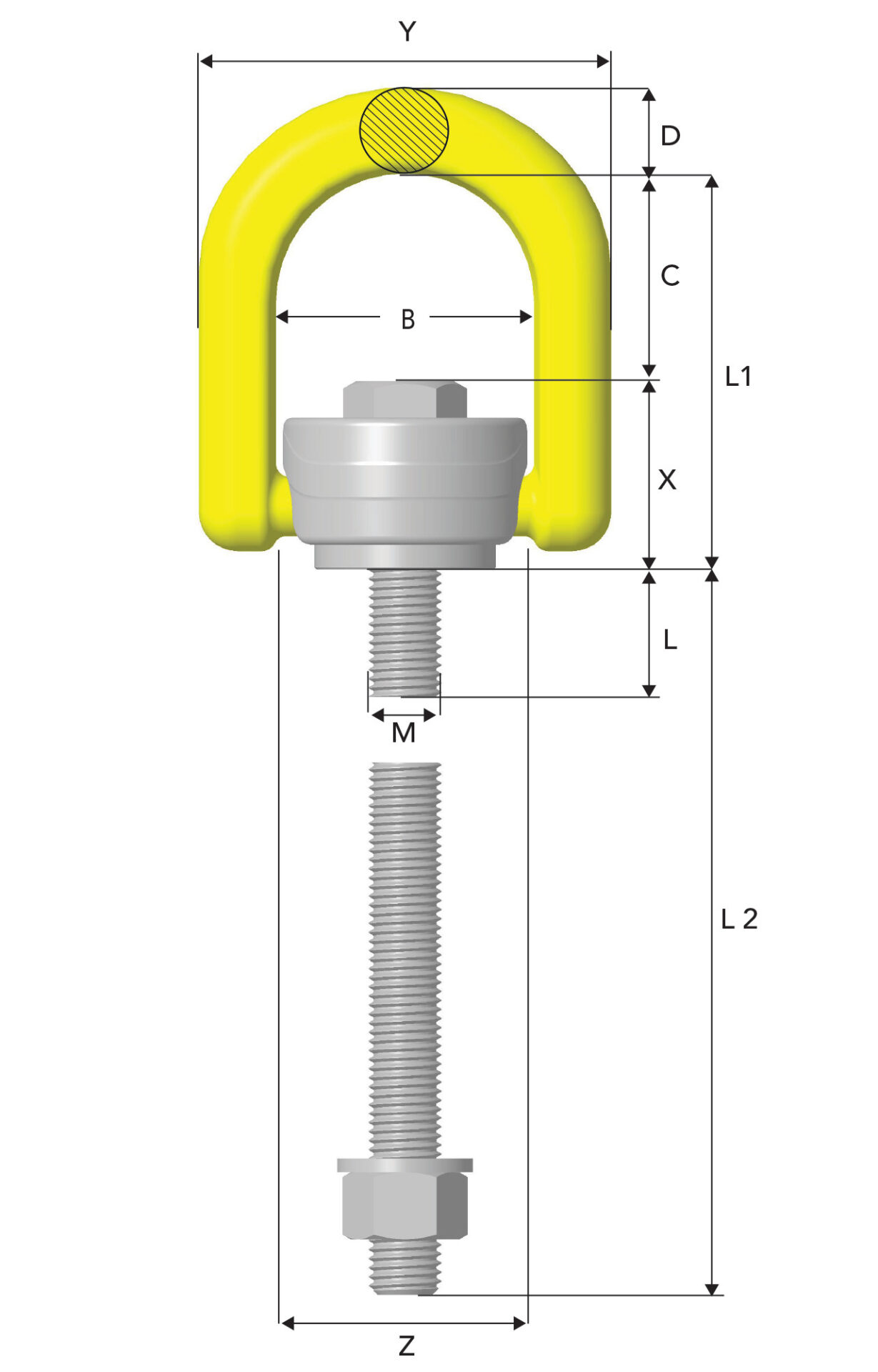

BCDL1XYZM
Standard Bolt Length (Length - L)
Z101808		0.62RLP-5/16”-18 UNC1.651.370.472.441.062.51Ø1.575/16”0.66
Z101810		0.62RLP-3/8”-16 UNC1.651.370.472.441.062.51Ø1.573/8”0.66
Z101812		0.98RLP-1/2”-13 UNC2.241.810.753.461.653.58Ø2.121/2”2.20
Z101816		0.98RLP-5/8”-11 UNC2.241.810.753.461.653.58Ø2.125/8”2.20
Z101820		1.41RLP-3/4”-10 UNC3.272.161.14.332.165.23Ø3.143/4”6.39
Z101821		1.41RLP-7/8”-9 UNC3.272.161.14.332.165.23Ø3.147/8”6.39
Z101824		1.41RLP 1”-8 UNC3.272.161.14.332.165.23Ø3.141”6.39
Z101830		2.28RLP 1 1/4”-7 UNC4.492.751.345.823.077.16Ø4.371 1/4”15.6
Z101836		2.28RLP 1 1/2”-6 UNC4.492.751.345.823.077.16Ø4.371 1/2”16.0
Z101842		3.18RLP 1 3/4”-5 UNC5.873.581.577.483.899.01Ø5.591 3/4”31.7
Z101848		3.18RLP 2” -4.5 UNC5.873.581.577.483.899.01Ø5.592”32.4
Long Bolt Length** (Length = L2)
Z1018080L		3.97RLP-5/16”-18 UNC1.651.370.472.441.062.51Ø1.575/16”0.66
Z1018100L		3.97RLP-3/8”-16 UNC1.651.370.472.441.062.51Ø1.573/8”0.66
Z1018120L		4.72RLP-1/2”-13 UNC2.241.810.753.461.653.58Ø2.121/2”2.20
Z1018160L		6.29RLP-5/8”-11 UNC2.241.810.753.461.653.58Ø2.125/8”2.20
Z1018200L		7.87RLP-3/4”-10 UNC3.272.161.14.332.165.23Ø3.143/4”6.39
Z1018210L		7.87RLP-7/8”-9 UNC3.272.161.14.332.165.23Ø3.147/8”6.39
Z1018240L		9.44RLP 1”-8 UNC3.272.161.14.332.165.23Ø3.141”6.39
Z1018300L		11.8RLP 1 1/4”-7 UNC4.492.751.345.823.077.16Ø4.371 1/4”15.6
Z1018360L		11.8RLP 1 1/2”-6 UNC4.492.751.345.823.077.16Ø4.371 1/2”16.0
Z1018420L		11.8RLP 1 3/4”-5 UNC5.873.581.577.483.899.01Ø5.591 3/4”31.7
Z1018480L		11.8RLP 2” -4.5 UNC5.873.581.577.483.899.01Ø5.592”32.4
Stock No.Length (in)CodeDimensions (mm)Weight (kg)***
BCDL1XYZM
Standard Bolt Length (Length - L)
Z101808		0.62RLP-5/16”-18 UNC423512622764Ø1.570.3
Z101810		0.62RLP-3/8”-16 UNC423512622764Ø1.570.3
Z101812		0.98RLP-1/2”-13 UNC574619884291Ø2.121.0
Z101816		0.98RLP-5/8”-11 UNC574619884291Ø2.121.0
Z101820		1.41RLP-3/4”-10 UNC83552811055133Ø3.142.9
Z101821		1.41RLP-7/8”-9 UNC83552811055133Ø3.142.9
Z101824		1.41RLP 1”-8 UNC83552811055133Ø3.142.9
Z101830		2.28RLP 1 1/4”-7 UNC114703414878182Ø4.377.1
Z101836		2.28RLP 1 1/2”-6 UNC114703414878182Ø4.377.3
Z101842		3.18RLP 1 3/4”-5 UNC149914019099229Ø5.5914.4
Z101848		3.18RLP 2” -4.5 UNC149914019099229Ø5.5914.7
Long Bolt Length** (Length = L2)
Z1018080L		3.97RLP-5/16”-18 UNC423512622764Ø1.570.3
Z1018100L		3.97RLP-3/8”-16 UNC423512622764Ø1.570.3
Z1018120L		4.72RLP-1/2”-13 UNC574619884291Ø2.121.0
Z1018160L		6.29RLP-5/8”-11 UNC574619884291Ø2.121.0
Z1018200L		7.87RLP-3/4”-10 UNC83552811055133Ø3.142.9
Z1018210L		7.87RLP-7/8”-9 UNC83552811055133Ø3.142.9
Z1018240L		9.44RLP 1”-8 UNC83552811055133Ø3.142.9
Z1018300L		11.8RLP 1 1/4”-7 UNC114703414878182Ø4.377.1
Z1018360L		11.8RLP 1 1/2”-6 UNC114703414878182Ø4.377.3
Z1018420L		11.8RLP 1 3/4”-5 UNC149914019099229Ø5.5914.4
Z1018480L		11.8RLP 2” -4.5 UNC149914019099229Ø5.5914.7

** Long Bolt supplied with nut and washer. *** Weight is calculated with standard bolt length. Bolt, nut and washer according to: ISO 898-1 Class 10.9
