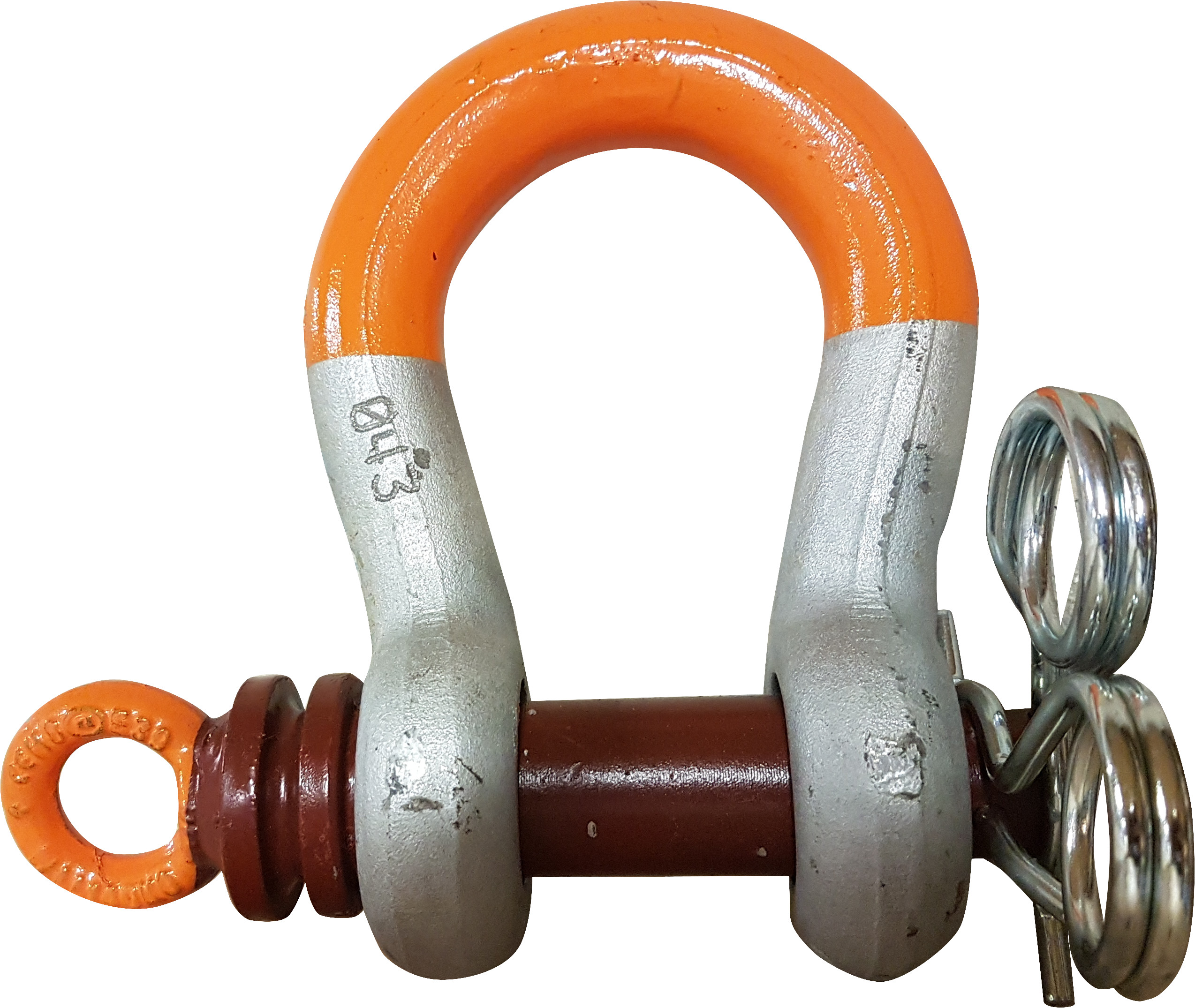

Gunnebo Industries ROV Release Shackle No 863

SKU: GRRR311 Category: Subsea & ROV

Product details

Designed for smooth and easy use in retrieving and releasing subsea lifting and rigging operations.
Equipped with bolt and two locking pins.
High tensile steel, Quenched & Tempered.
All load-bearing parts are hot-dip galvanized.
Temperature range -40°F to 392°F (-40°C to 200°C).
Design Factor 5:1.
Dim according to EN 13889.

Videos

ROV Release Shackle No 863

Equipped with bolt and two locking pins

Stock No.	WLL metric tonnes	Dimensions (in)						Weight (lb)

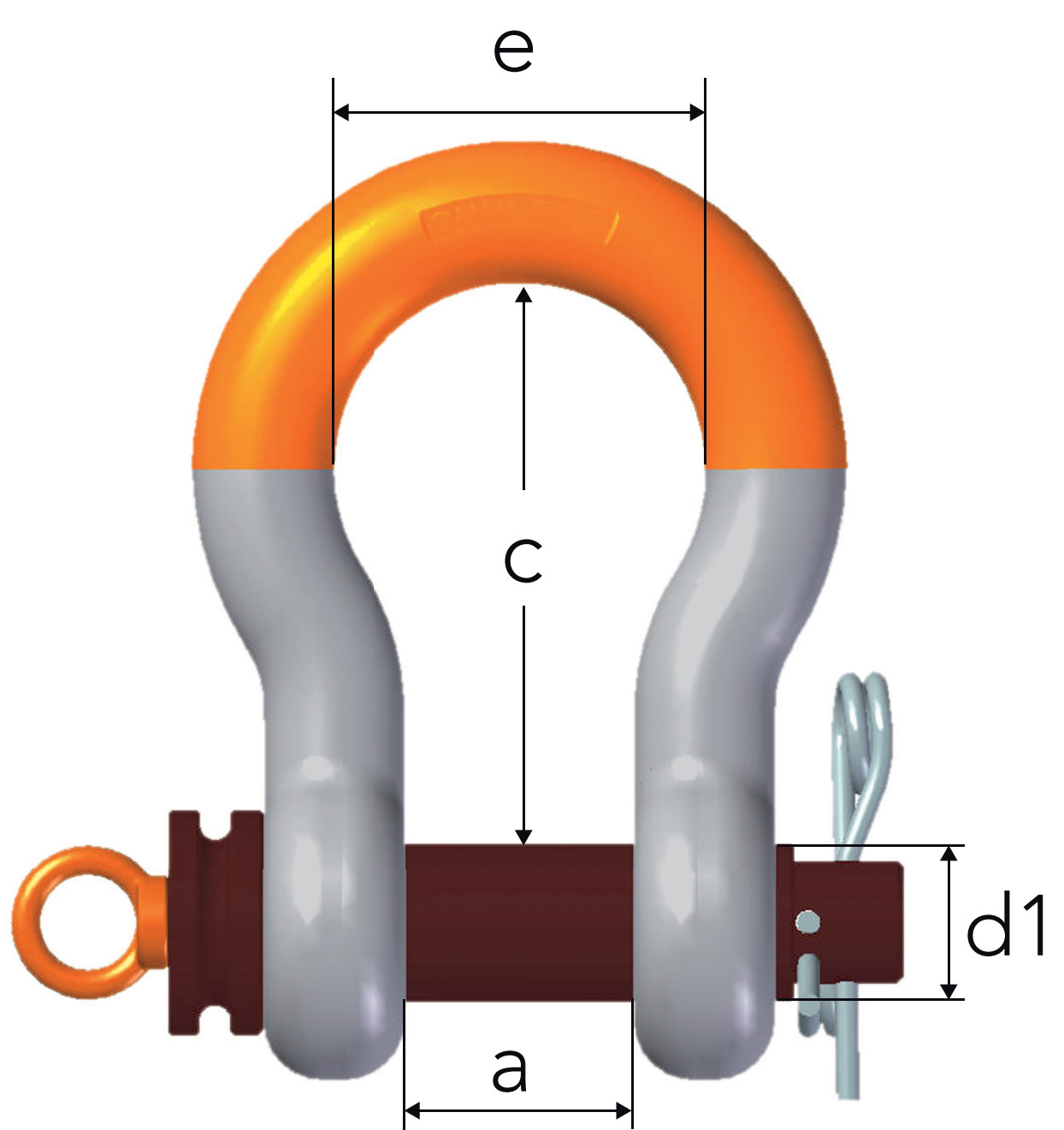

		d1	d	a	c	d2	e
									A086322	6.5	0.98	0.86	1.45	3.30	2.04	2.28	3.52
									A086328	9.5	1.25	1.10	1.81	4.25	2.51	2.91	7.49
									A086332	12.0	1.37	1.25	2.04	4.68	2.83	3.26	11.0
									A086338	17.0	1.65	1.49	2.36	5.74	3.30	3.85	17.1
									A086345	25.0	1.96	1.77	2.91	7.00	4.13	5.00	30.6
									A086352	35.0	2.24	1.96	3.26	7.75	5.00	5.43	37.4
									A086364	55.0	2.75	2.55	4.13	10.2	5.98	7.08	81.5

Stock No.	WLL (t)	Dimensions (mm)						Weight (kg)
		d1	d	a	c	d2	e
									A086322	6.5	25	22	37	84	52	58	1.6
									A086328	9.5	32	28	46	108	64	74	3.4
									A086332	12.0	35	32	52	119	72	83	5.0
									A086338	17.0	42	38	60	146	84	98	7.8
									A086345	25.0	50	45	74	178	105	127	13.9
									A086352	35.0	57	50	83	197	127	138	17.0
									A086364	55.0	70	65	105	260	152	180	37.0

5:1 Design Factor. Maximum Proof Load is 2.0 times the Working Load Limit.
