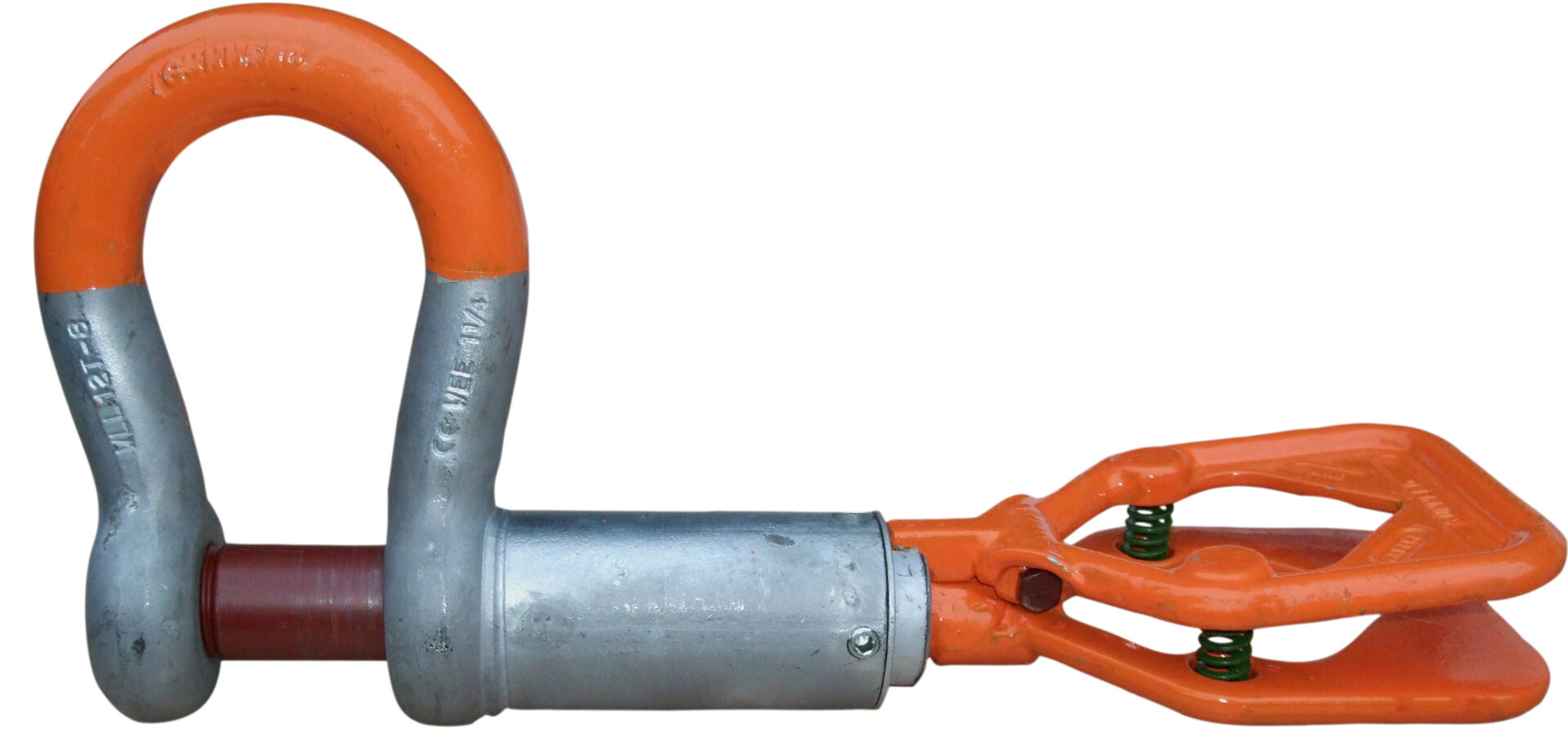

Gunnebo Industries ROV Retrieve Shackle No 861

Gunnebo Industries ROV Retrieve Shackle No 861 - Image 2

Gunnebo Industries ROV Retrieve Shackle No 861 - Image 3

Gunnebo Industries ROV Retrieve Shackle No 861

SKU: GRRR216 Category: Subsea & ROV

Product details

Designed for smooth and easy use in retrieving and releasing subsea lifting and rigging operations.
High tensile steel, Quenched & Tempered.
All load-bearing parts are hot-dip galvanized.
Temperature range -40°F to 392°F (-40°C to 200°C).
No loose parts in closed or opened positions.
No need for wires or monkey fists.
High-visibility handles are closed-die forged and have double safety functions.

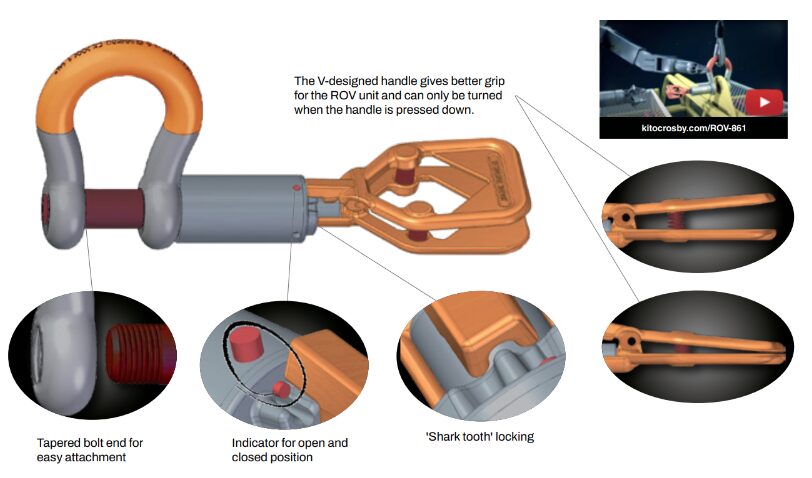

Shark tooth locking with indicator shows if the shackle is in open or locked position.
Tapered bolt end for easy attachment.
Design Factor 6:1.
Dim according to EN 13889.

Videos

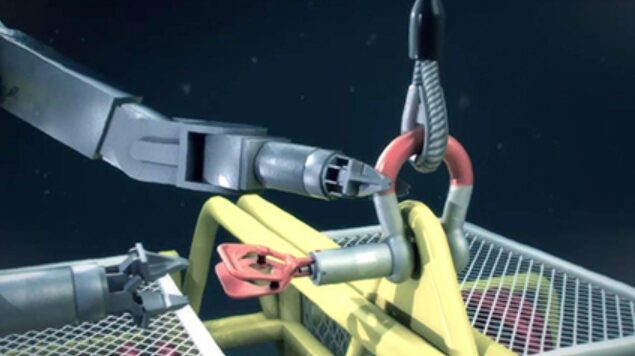

ROV Retrieve Shackle No 861

All shackles have unique marking

Stock No.	WLL (t)	Design Factor	Dimensions (in)										Weight (lb)

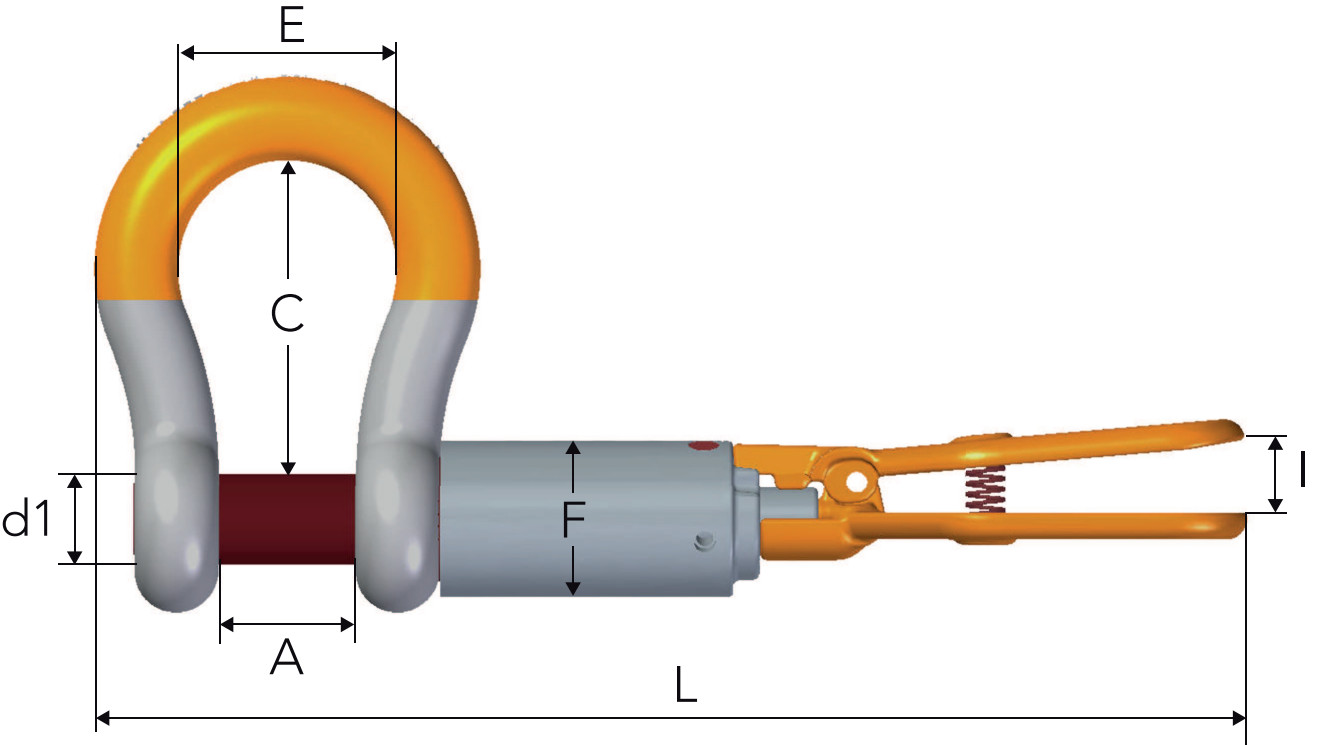

			d1	d	A	C	E	F	L	I	H	G
														A086128	9.5	6:1	1.25	1.10	1.81	4.25	2.91	2.36	17.3	1.22	5.19	1.29	14.3
														A086132	12.0	6:1	1.37	1.25	2.04	4.68	3.27	2.36	18.1	1.22	5.19	1.29	17.6
														A086138	17.0	6:1	1.65	1.49	2.36	5.74	3.86	2.50	19.7	1.22	5.19	1.29	23.1
														A086145	25.0	6:1	1.96	1.77	2.91	7.00	5	2.75	22.2	1.22	5.19	1.29	36.3
														A086152	35.0	6:1	2.24	1.96	3.26	7.75	5.43	2.99	23.7	1.22	5.19	1.29	45.1
														A086164	55.0	6:1	2.75	2.55	4.13	10.2	7.09	3.46	28.0	1.22	5.19	1.29	92.5
														A086176	85.0	5:1	3.27	3.31	5.24	12.99	7.48	4.25	28.0	1.22	5.19	1.30	92.5

Stock No.	WLL (t)	Design Factor	Dimensions (mm)										Weight (kg)
			d1	d	A	C	E	F	L	I	H	G
														A086128	9.5	6:1	32	28	46	108	74	60	440	31	132	33	6.5
														A086132	12.0	6:1	35	32	52	119	83	60	460	31	132	33	8.0
														A086138	17.0	6:1	42	38	60	146	98	63.5	501	31	132	33	10.0
														A086145	25.0	6:1	50	45	74	178	127	70	565	31	132	33	15.7
														A086152	35.0	6:1	57	50	83	197	138	76	604	31	132	33	20.0
														A086164	55.0	6:1	70	65	105	260	180	88	712	31	132	33	42.0
														A086176	85.0	5:1	83	84	133	330	190	108	745	31	132	33	78.3

6:1 Design Factor. Maximum Proof Load is 2.0 times the Working Load Limit.
