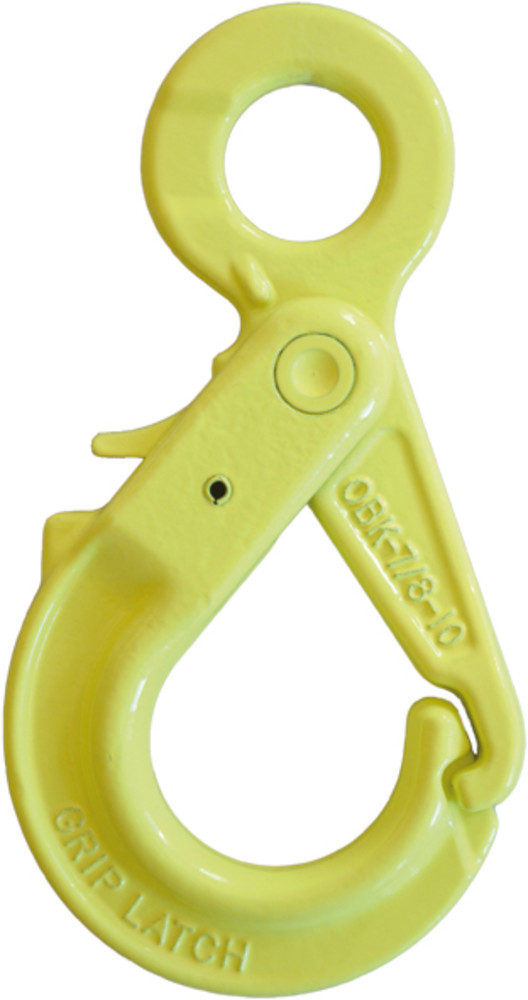

Yellow industrial lifting hook with grip latch, ideal for heavy-duty lifting applications and secure load handling.

Gunnebo Industries Safety Hook OBK

SKU: GRRR355 Category: Hooks & Swivels

Product details

The original self-locking safety hook, featuring an eye connector and Griplatch.
Made from forged alloy steel, hardened and tempered for durability.
Fluorescent color for high visibility in the field.
Clear markings include the country of origin, traceability code, model, size, and grade for easy identification.
Replaceable trigger set available as a complete spare part kit, allowing for quick and easy assembly and maintenance.
Fatigue tested and proof load tested at 2.5 times the Working Load Limit.
Meets EN 1677:2008 (WLL +25%) and ASTM A952/A952M standards.
4:1 Design Factor.

Videos

Safety Hook OBK

Safety hook with eye connector and grip latch.

Stock No.	Code	WLL (lb)*	Dimensions (in)							Weight (lb)
			A	L	B	E	F	G	H
											Z101048	OBK-6-10	3,306	.47	4.06	1.02	.87	.35	.59	.67	.88
											Z101143	OBK-7/8-10	5,700	.55	5.47	1.46	1.10	.39	.79	.87	1.76
											Z101145	OBK-10-10	8,800	.63	6.69	1.85	1.34	.51	.87	1.14	2.87
											Z101147	OBK-13-10	15,000	.83	8.11	2.09	1.73	.59	1.14	1.50	5.73
											Z101141	OBK-16-10	22,600	1.02	9.88	2.68	2.20	.75	1.14	1.77	9.70
											Z101240	OBK-18/20-10	35,300	1.10	11.54	2.91	2.36	.87	1.73	2.20	16.09

Stock No.	Code	WLL (t)	Dimensions (mm)							Weight (kg)
			A	L	B	E	F	G	H
											Z101048	OBK-6-10	1.5	12	103	26	22	9	15	17	0.4
											Z101143	OBK-7/8-10	2.6	14	139	37	28	10	20	22	0.8
											Z101145	OBK-10-10	4.0	16	170	47	34	13	22	29	1.3
											Z101147	OBK-13-10	6.8	21	206	53	44	15	29	38	2.6
											Z101141	OBK-16-10	10.3	26	251	68	56	19	29	45	4.4
											Z101240	OBK-18/20-10	16.0	28	293	74	60	22	44	56	8.3

Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M-02 and AS 3776:2015.

4:1 Design Factor

Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M.

For larger sizes see Classic Grade 8(OBK-22-8).

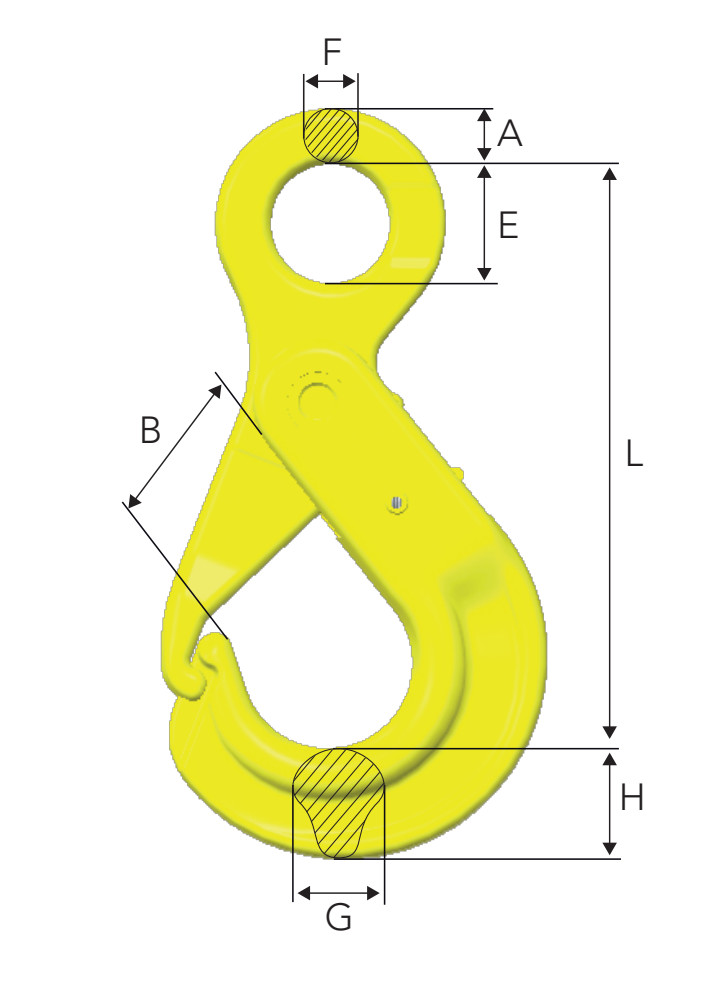

Diagram Images
