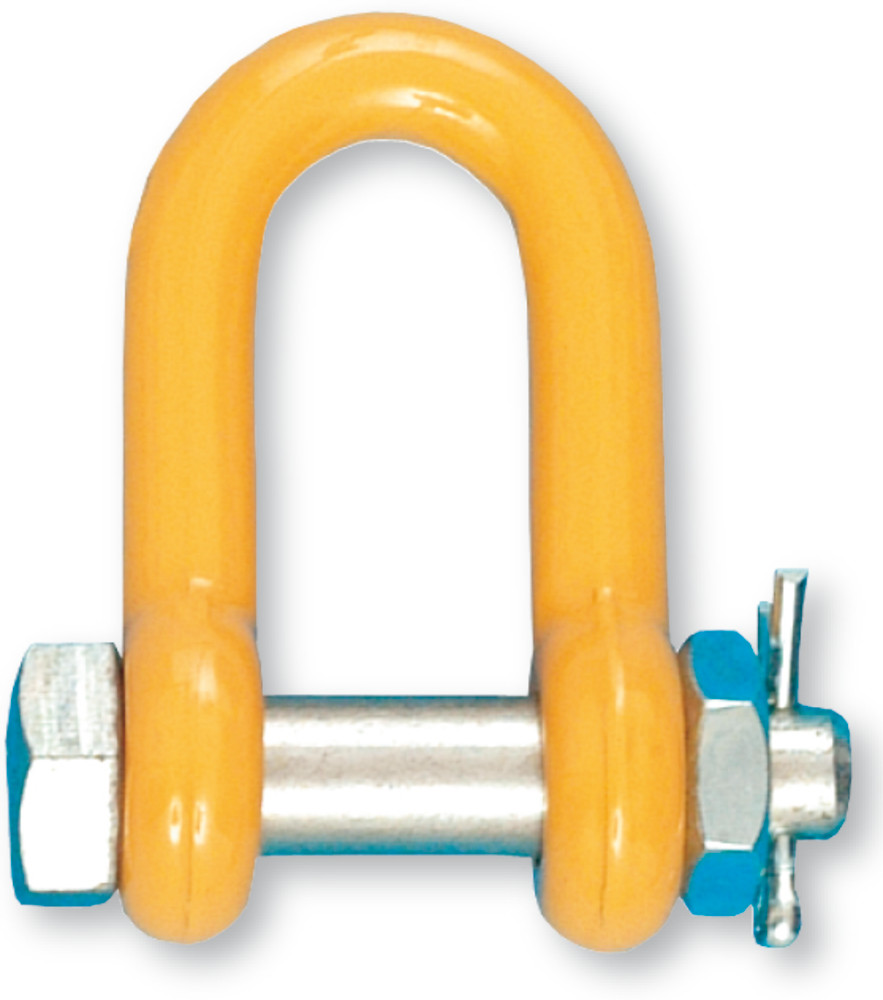

Yellow D-shackle with metal pin and hex nut for heavy-duty lifting and rigging tasks.

Gunnebo Industries Shackle SA

SKU: GRRR349 Category: Shackles

Product details

Made from durable alloy steel for heavy-duty lifting applications.
Grade 8.
Painted yellow for improved visibility in the field.
4:1 Design Factor.

Videos

Shackle SA

Rated at 4:1 for use with Grade 80 chain slings. Complies with EN 1677-1.

Stock No.	Code	WLL (t) 4:1	For Chain Size (in)	Pin d1 (in)	Nominal Size d (in)	Inner Width a* (in)	Inner Length c* (in)	Eye Outer d2 (in)	Weight (lb)
										Z100706	SA-7/8-8	2.0	9/32", 5/16"	0.39	0.31	0.59	1.18	0.78	0.22
										Z298728	SA-10-8	3.2	3/8"	0.63	0.51	0.94	2.04	1.33	0.88
										Z292528	SA-13-8	5.4	1/2"	0.79	0.62	1.10	2.55	1.57	1.54
										Z293024	SA-16-8	8.2	5/8"	0.87	0.70	1.18	2.83	1.81	2.20
										Z299622	SA-19-8	11.5	3/4”	1.06	0.86	1.41	3.38	2.04	3.74
										Z294122	SA-22-8	15.5	7/8”	1.18	0.98	1.57	3.70	2.36	5.51
										Z304328	SA-26-8	21.7	1”	1.54	1.25	1.88	4.56	2.99	11.40

Stock No.	Code	WLL (t) 4:1	For Chain Size (mm)	Pin d1 (mm)	Nominal Size d (mm)	Inner Width a* (mm)	Inner Length c* (mm)	Eye Outer d2 (in)	Weight (kg)
										Z100706	SA-7/8-8	2.0	7, 8	M10	8	15	30	20	0.1
										Z298728	SA-10-8	3.2	10	M16	13	24	52	34	0.4
										Z292528	SA-13-8	5.4	13	M20	16	28	65	40	0.7
										Z293024	SA-16-8	8.2	16	M22	18	30	72	46	1
										Z299622	SA-19-8	11.5	19	M27	22	36	86	52	1.7
										Z294122	SA-22-8	15.5	22	M30	25	40	94	60	2.5
										Z304328	SA-26-8	21.7	26	M38	32	48	116	76	5.2

Split pin included

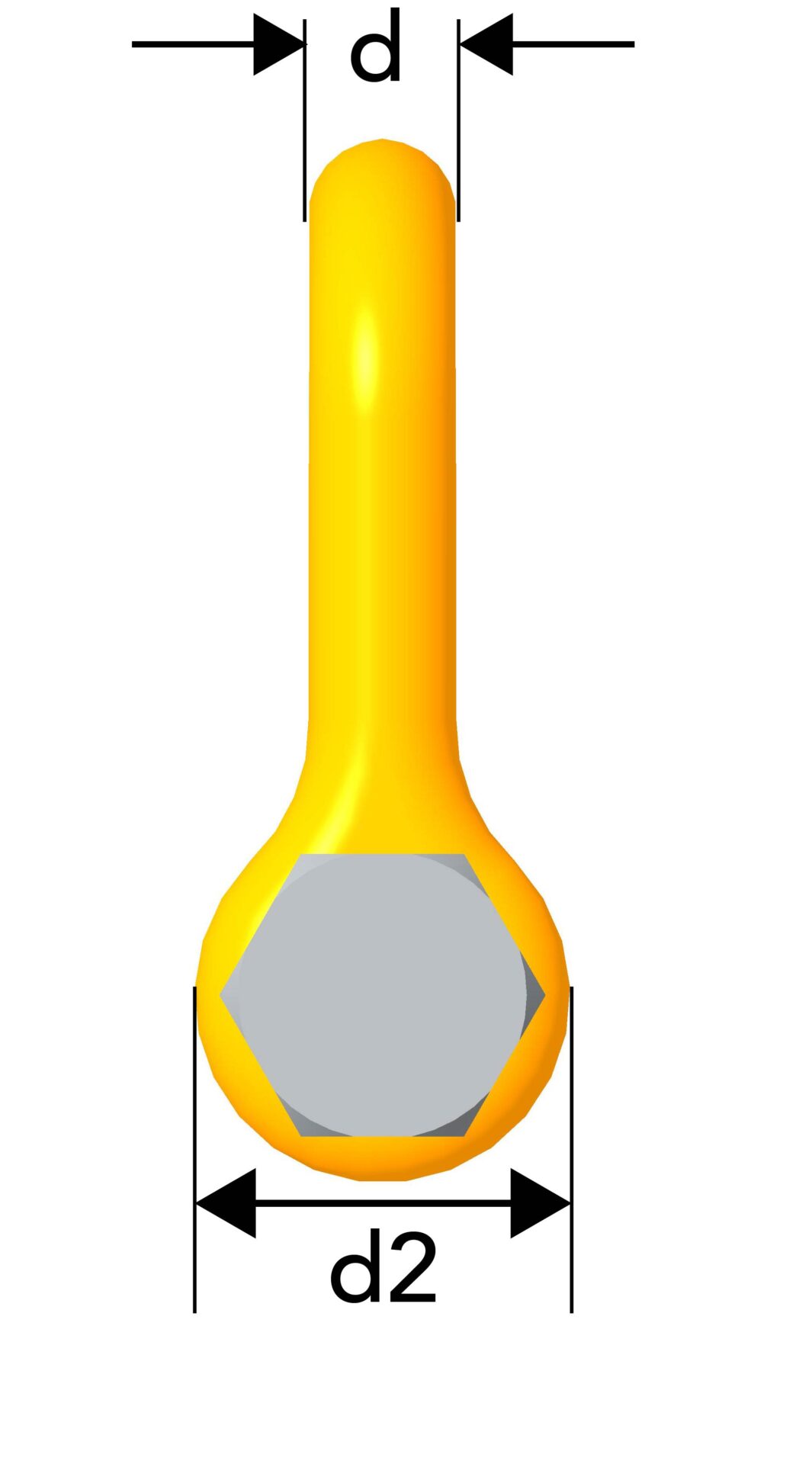

Diagram Images
