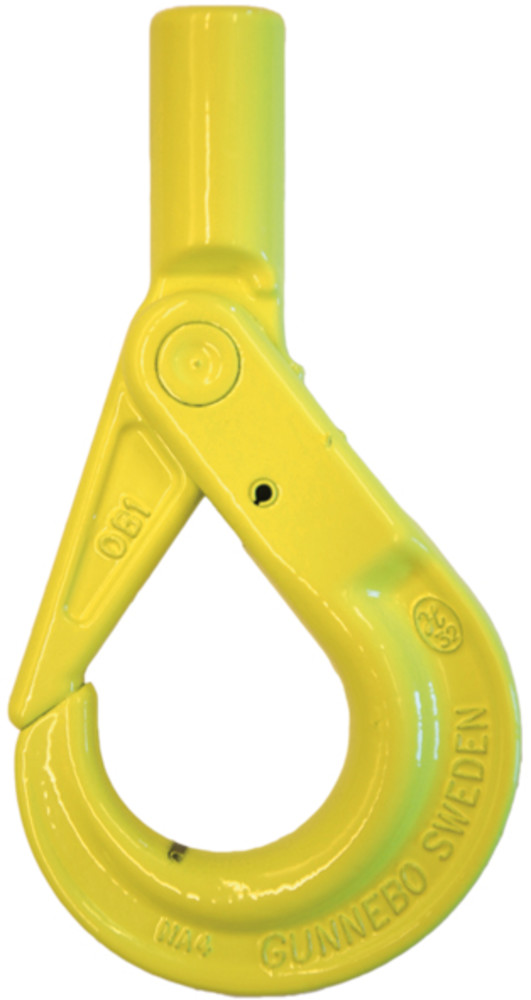

Yellow Gunnebo Sweden lifting hook with latch for industrial use.

Gunnebo Industries Shank Safety Hook BKT

SKU: GRRRR14 Category: Hooks & Swivels

Product details

Made from forged alloy steel.
Hardened and tempered.
Fluorescent color for maximum visibility.
Ready for customized machines.
Design Factor 4:1.
Meets EN 1677:2008 (WLL +25%), ASTM A952/A952M requirements.

Videos

Shank Safety Hook BKT

Safety hook with shank for customized machines.

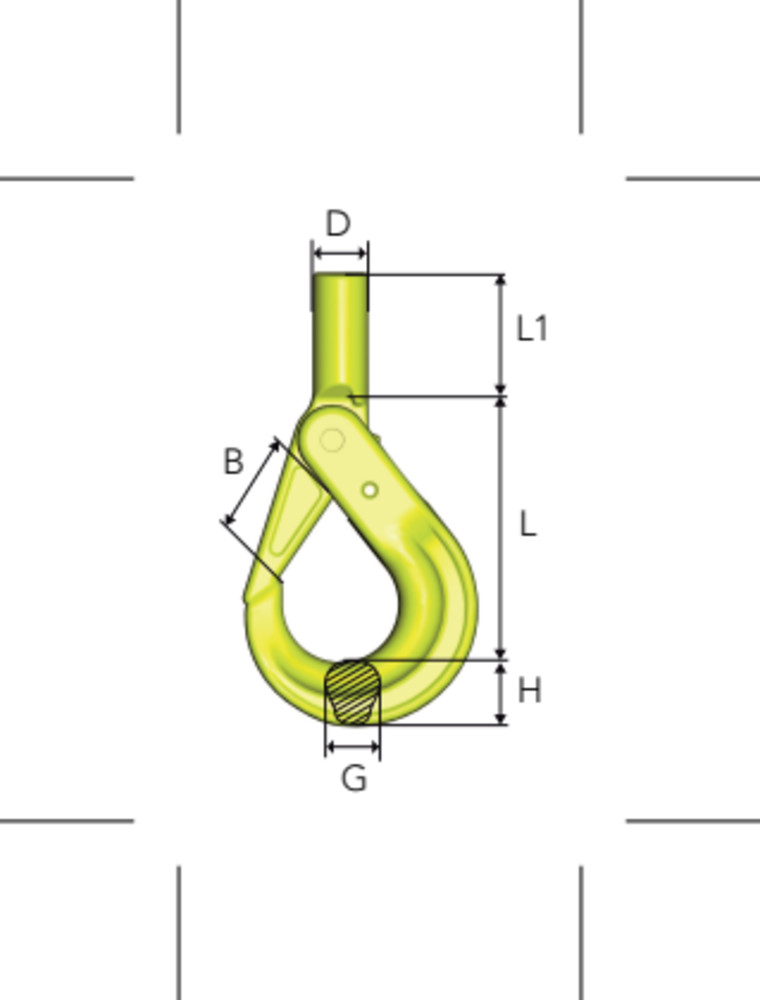

Stock No.	Code	WLL (lb)*	Dimensions (in)							Weight (lb)
			L	B	L1	D	d min	G	H
											Z1011120	BKT-6-10	1.10	3.54	1.14	1.42	.79	.43	.59	.83	1.10
											Z1011020	BKT-7/8-10	1.98	4.37	1.46	1.85	.94	.51	.67	1.02	1.98
											Z1010690	BKT-10-10	3.53	5.24	1.77	2.01	1.14	.63	.83	1.22	3.53
											Z1010710	BKT-13-10	6.61	6.30	2.17	3.03	1.34	.79	1.18	1.54	6.61

Stock No.	Code	WLL (t)	Dimensions (mm)							Weight (kg)
			L	B	L1	D	d min	G	H
											Z1011120	BKT-6-10	0.5	89	29	39	20	11	15	21	0.5
											Z1011020	BKT-7/8-10	0.9	111	37	47	24	13	17	26	0.9
											Z1010690	BKT-10-10	1.6	133	45	51	29	16	21	30	1.6
											Z1010710	BKT-13-10	3.2	169	55	68	34	20	30	39	3.2

4:1 Design Factor.

Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M.

d min = the smallest permitted shank dimension after machining.

Note! After machining of the shank, proof loading must be carried out.
