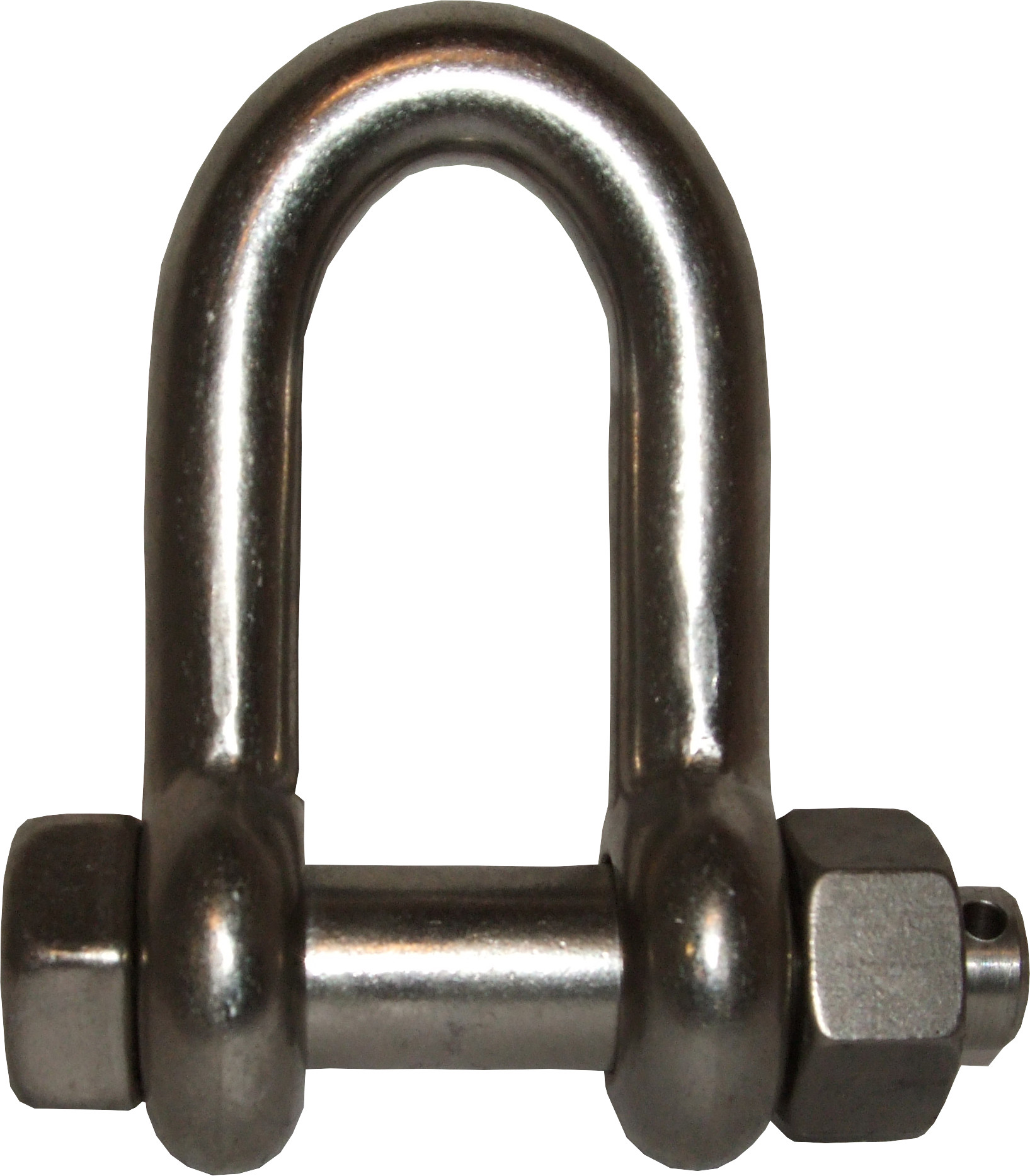

Stainless steel U-bolt shackle with nut, heavy-duty marine or rigging hardware component.

Gunnebo Industries Stainless Steel Shackle No 735

SKU: GRRR320 Category: Shackles

Product details

Dee shackle equipped with a safety bolt for secure and reliable fastening.
Made from AISI 316 stainless steel, ensuring excellent corrosion resistance in marine and demanding environments.
Highly polished finish that enhances both appearance and durability.
6:1 Design Factor.

Videos

Stainless Steel Shackle No 735

Dee shackle with safety bolt

Stock No.	WLL (t) 6:1	Pin d1 (in)	Nominal Size d (in)	Inner Width a* (in)	Inner Length c* (in)	Eye Outer d2 (in)	Weight (lb)
								A073510	0.6	0.39	0.39	0.78	1.57	0.78	0.44
								A073512	0.9	0.47	0.47	1.02	1.96	0.94	0.66
								A073516	1.5	0.62	0.51	0.94	2.04	1.29	0.88
								A073520	2.5	0.74	0.62	1.10	2.55	1.57	1.54
								A073522	3.0	0.86	0.74	1.22	2.36	1.88	3.30
								A073524	4.5	0.98	0.86	1.45	2.79	2.04	2.86
								A073533	7.5	1.25	1.10	1.81	3.54	2.51	6.61
								A073536	10.0	1.37	1.25	2.04	3.93	2.83	9.03

Stock No.	WLL (t) 6:1	Pin d1 (mm)	Nominal Size d (mm)	Inner Width a* (mm)	Inner Length c* (mm)	Eye Outer d2 (in)	Weight (kg)
								A073510	0.6	10	10	20	40	20	0.2
								A073512	0.9	12	12	26	50	24	0.3
								A073516	1.5	16	13	24	52	33	0.4
								A073520	2.5	20	16	28	65	40	0.7
								A073522	3.0	22	19	31	60	48	1.5
								A073524	4.5	24	22	37	71	52	1.3
								A073533	7.5	33	28	46	90	64	3.0
								A073536	10.0	36	32	52	100	72	4.1

Split pin included

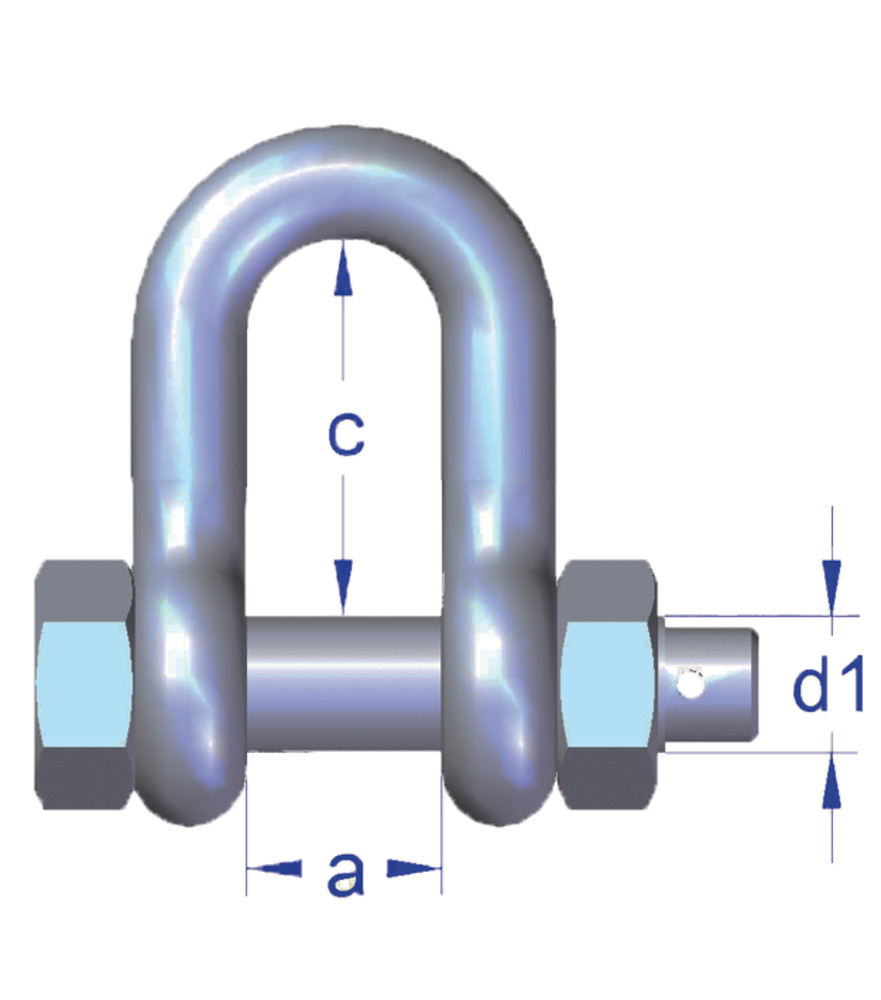

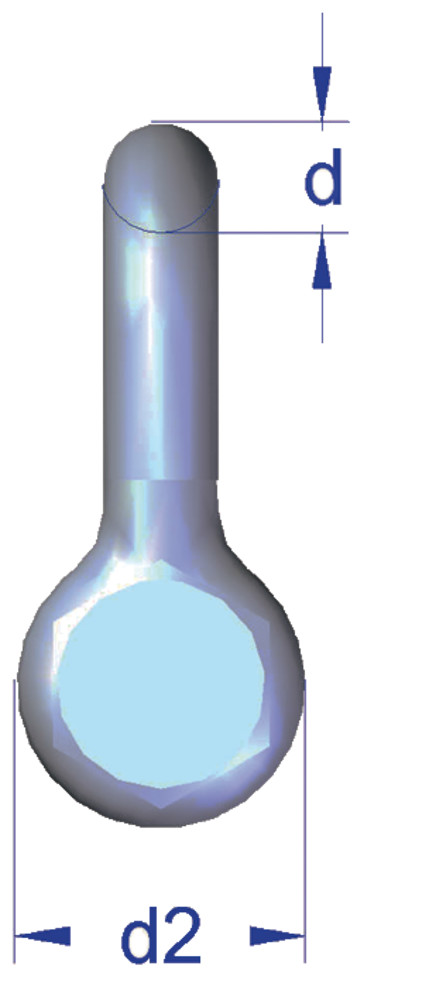

Diagram Images
