Bright yellow heavy-duty safety hook with swivel, ideal for lifting and rigging applications.

Gunnebo Industries Swivel Safety Hook BKLK Offshore HDG

SKU: GRRR253 Category: Hooks & Swivels

Product details

Forged from alloy steel, hardened and tempered for high strength and durability.
Fluorescent color ensures high visibility in the field.
Clear markings for model, size, grade, country of origin, and traceability code.
Meets DNV 2.7-1:2013, DNVGL-ST-0377:2016, DNVGL-ST-0388:2016, and NORSOK R-002:2017 standards.

Videos

Swivel Safety Hook BKLK Offshore HDG

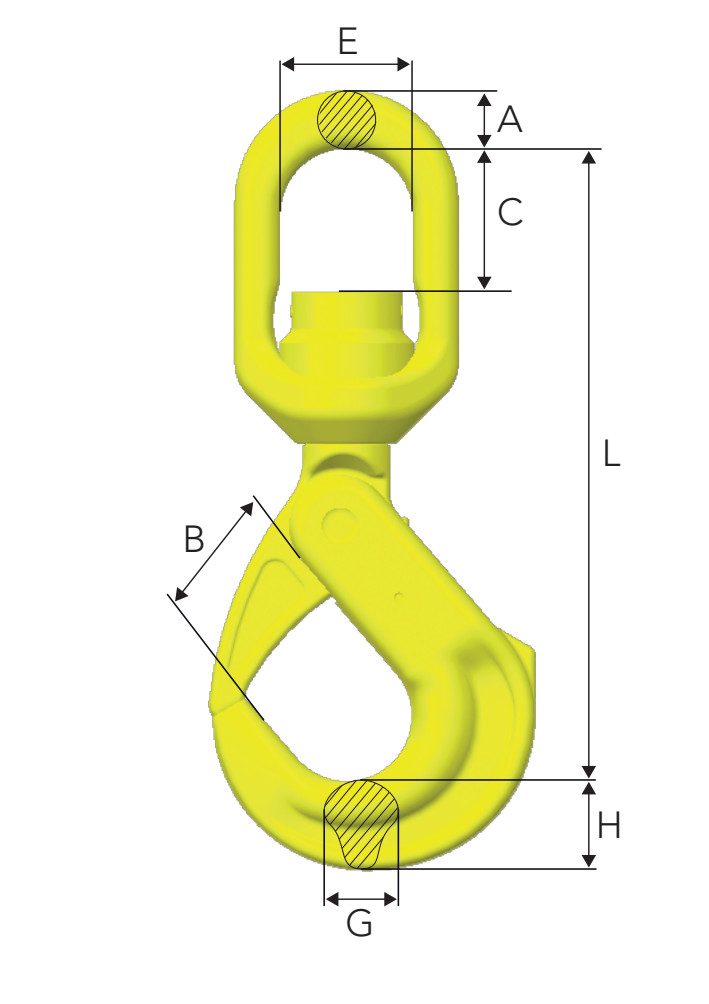

Dimensions (in)
L	B	C	E	A	G	H
							ZG101370	BKLK-13-8 OS W HDG	14,800	12,000	12.09	2.17	2.83	2.40	.98	1.18	1.57	10.80
							ZG101371	BKLK-16-8 OS W HDG	22,600	18,000	14.45	2.44	3.46	3.23	1.02	1.46	1.97	18.52
							ZG1013561	BKLK-18/20-8 OS W HDG	35,300	28,300	15.55	2.68	3.46	3.15	1.38	1.81	2.52	29.76
							ZG101294	BKLK-22-8 OS HDG	44,080	35,300	17.17	3.11	3.15	3.15	1.38	1.97	2.44	37.04
							ZG101295	BKLK-26-8 OS HDG	60,169	47,700	19.13	3.94	4.33	4.02	1.77	2.13	2.68	58.42
							ZG101344	BKLK-32-8 OS HDG	72300	57,745	20.98	4.72	4.33	4.02	1.77	2.44	3.39	71.21

Dimensions (mm)
L	B	C	E	A	G	H
							ZG101370	BKLK-13-8 OS W HDG	6.7	5.4	307	55	72	61	25	30	40	4.9
							ZG101371	BKLK-16-8 OS W HDG	10.3	8.2	365	62	88	82	26	37	50	8.4
							ZG1013561	BKLK-18/20-8 OS W HDG	16.0	12.8	395	68	88	80	35	46	64	13.9
							ZG101294	BKLK-22-8 OS HDG	20.0	16.0	436	79	80	80	35	50	62	16.8
							ZG101295	BKLK-26-8 OS HDG	27.3	21.6	486	100	110	102	45	54	68	26.5
							ZG101344	BKLK-32-8 OS HDG	32.8	26.2	533	120	110	102	45	62	86	32.3

Fulfills requirements in: DNVGL-ST-0377:2016, DNVGL-ST-0378:2016, NORSOK R-002:2017, EN 1677:2008 (WLL+25%), ASTM A952/A952M-02, AS3776:2015 and AS 3775:2014.

Double latch Due to the motion of the sea when loading and unloading offshore, direct impact on the hook could cause the latch to unintentionally open when not being under load, risking the load to unhitch. The double latch safety hook has an extra latch retaining the load in this case.

Manufactured according to requirements in: DNV 2.7-1:2013, DNVGL-ST-0377:2016, DNVGL-ST-0388:2016 and NORSOK R-002:2017.
